H05BB-F/H07BB-F

Application and Description

These rubbers insulated and sheathed electric cables, with a parallel EPDM tube, joined with a textile braid, are used especially for electric steam generator irons (named usually “vaporellas”).

The cables are suitable for the stripping force on automatic machines and for low temperature environments.

Standard and Approval

HD 22.12

CEI 20-19/12

NF C 32-102-4

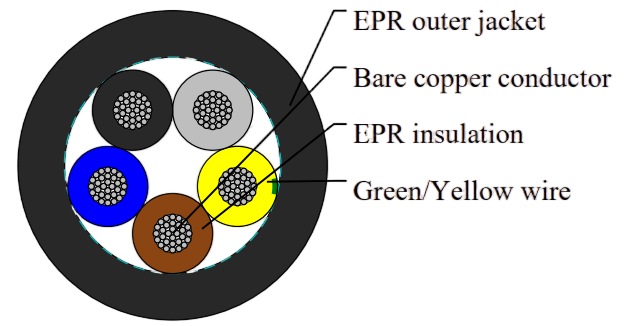

Cable Construction

Bare/Tinned copper strand conductor acc. to DIN VDE 0295 class 5. IEC 60228 class 5

Insulation : EPR rubber type EI7

Color coded to VDE 0293-308(3 conductors and above with yellow/green wire)

Sheath : EPR rubber type EM6

Sheath color : normally black

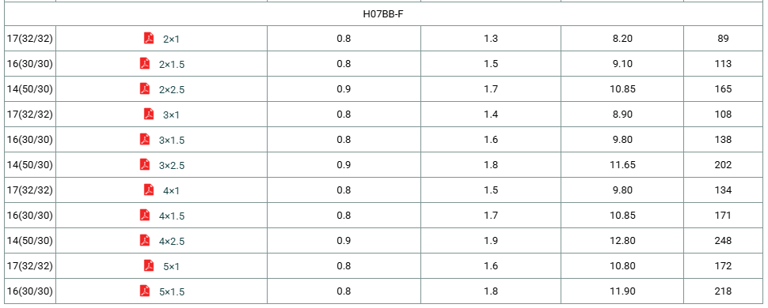

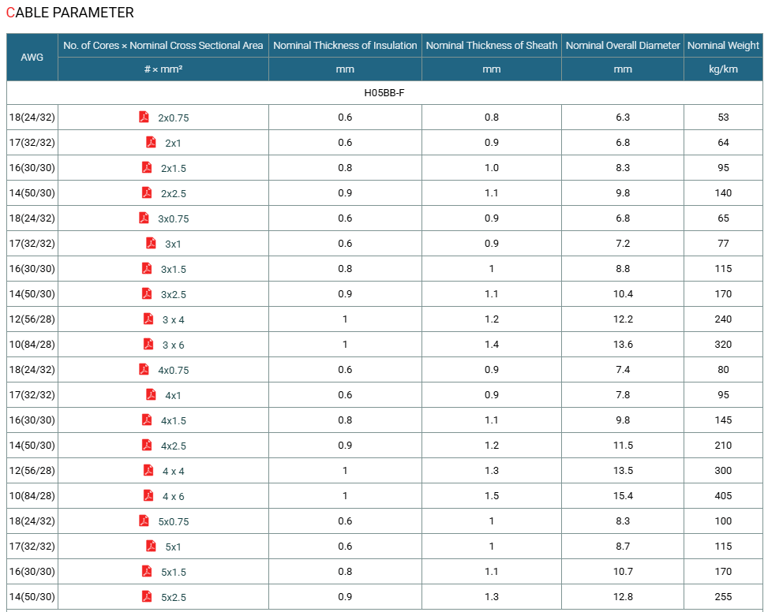

Technical Characteristics
