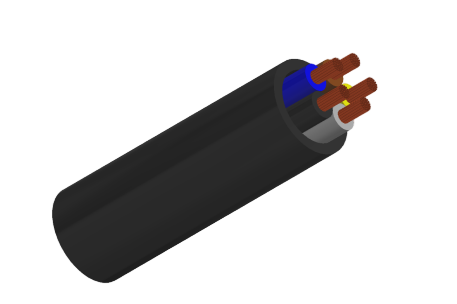

H05BN4-F

Application and Description

These EPR (ethylen-propylen rubber) insulated and CSP (chlorosulphonated polyethylene rubber or similar) sheathed electric cables can be used either in dry, humid or wet places or in contact with oil or grease, in weather conditions and under weak mechanical stress, for example for power supply to small appliances in industrial plants, machine shops, heating plates, portable lamps, farming equipment etc.

They are also suitable for caravans and camping equipment... The maximum conductor temperature in normal use: 90°C. While high temperature use, skin contact must be avoided.

Standard and Approval

CEI 20-19/12

CEI 20-35 (EN 60332-1)

BS6500

BS7919

ROHS compliant

VDE 0282 Part-12

IEC 60245-4

CE Low-Voltage

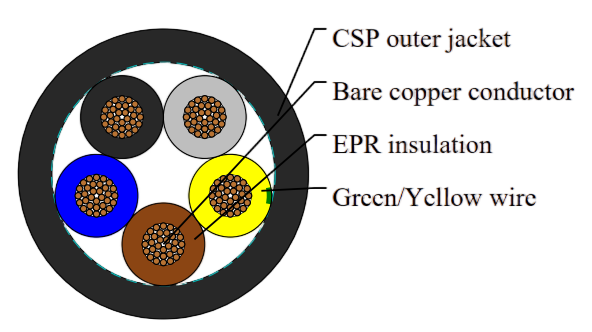

Cable Construction

Fine bare copper strands

Strands to VDE-0295 Class-5, IEC 60228 Class-5

EPR(Ethylene Propylene Rubber) rubber EI7 insulation

Color code VDE-0293-308

CSP(Chlorosulphonated Polyethylene) outer jacket EM7

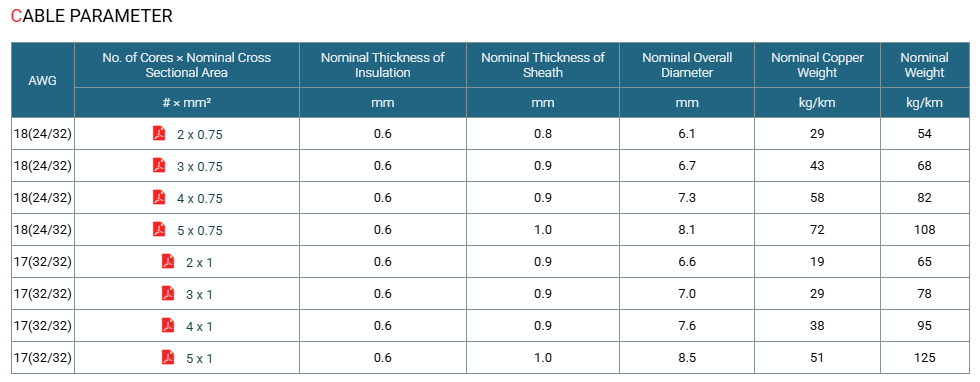

Technical Characteristics
