H05BN4-F
Cable
Application and Description
These EPR (ethylen-propylen rubber) insulated and CSP (chlorosulphonated polyethylene rubber or similar) sheathed electric cables can be used either in dry, humid or wet places or in contact with oil or grease, in weather conditions and under weak mechanical stress, for example for power supply to small appliances in industrial plants, machine shops, heating plates, portable lamps, farming equipment etc.
They are also suitable for caravans and camping equipment... The maximum conductor temperature in normal use: 90°C. While high temperature use, skin contact must be avoided.
Standard and Approval
CEI 20-19/12, CEI 20-35 (EN 60332-1), BS6500, BS7919,
ROHS compliant, VDE 0282 Part-12, IEC 60245-4, CE Low-Voltage

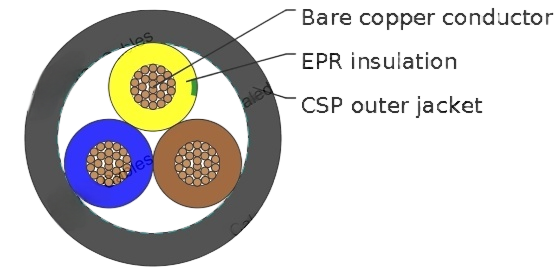

Cable Construction
Technical Characteristics
Fine bare copper strands |
Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
EPR(Ethylene Propylene Rubber) rubber EI7 insulation |
Color code VDE-0293-308 |
CSP(Chlorosulphonated Polyethylene) outer jacket EM7 |
Working voltage | 300/500 volts |
Test voltage | 2000 volts |
Flexing bending radius | 6.0 x O |
Fixed bending radius | 4.0 x O |
Temperature Range | -20oC to +90oC |
Maximum Short Circuit Temperature | +250oC |
Flame retardant | IEC 60332.1 |
Insulation resistance | 20 MΩ x km |
