H05BQ-F Cable
For use in domestic premises, kitchen and offices.
APPLICATION
For use in domestic premises, kitchen and offices. for ordinary duty applications and supplying appliances where cables are subject to low mechanical stresses (e.g. vacuum cleaners,cooking appliances, soldering irons, toasters, domesticportable tools and hand held inspection lamps). Use outdoors for temporary periods of short duration.
CHARACTERISTICS
Voltage Rating Uo/U 300/500V
Test Voltage
2.5kV
Temperature Rating
Operating: -40ºC to +90ºC
Maximum Short Circuit Temperature: 250ºC (Max. 5 seconds)
Minimum Bending Radius
5 x overall diameter

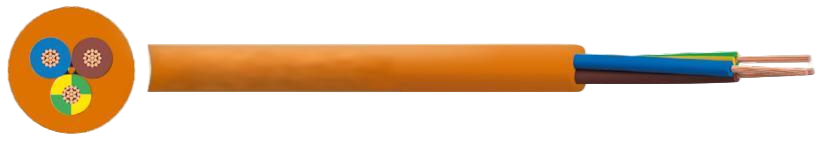

CONSTRUCTION
Conductor
Class 5 Flexible Copper Conductor
Insulation
Cross linked EPR (Ethylene Propylene Rubber)
Outer Sheath
PUR (Polyurethane)
Core Identi ication
2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: ● Green/Yellow ● Brown ● Black ● Grey
5 core: Green/Yellow Brown Black Grey Blue
Sheath Colour
Orange
