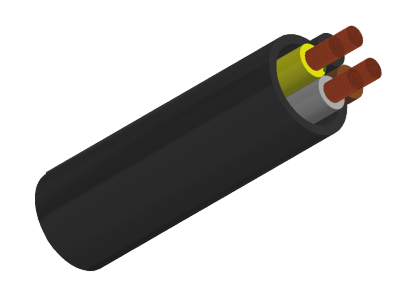

H05BQ-F / H07BQ-F (NGMH11YÖ)

Application and Description

These cables are used for medium mechanical stress in dry, damp or wet areas, e.g. for connecting agricultural and commercial equipment, for connecting heaters where there is a danger of cable damage due to its contact with hot surfaces.

The cable can also be used in electrical appliances such as drills, hand-held circular saws as well as in building sites and refrigeration plants.

H07BQ-F can commonly be found in other machinery in agriculture, building sites, docks and refrigeration plants. The robust PUR jacket adds abrasion, notch and tear resistance as well as chemical resistance to oils, fats, petrol, water, ozone, UV radiation, hydrolysis and microbes. Common European designation is NGMH11Y"O.

Standard and Approval

NF C 32-102-10

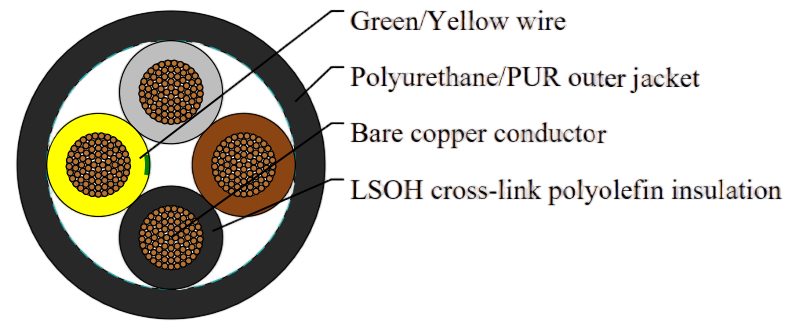

Cable Construction

Fine bare or tinned copper strands

Strands to VDE-0295 Class-5, IEC 60228 and HD383 Class-5

Rubber compound insulation E16 to VDE-0282 Part-1

Color coded to VDE-0293-308

Conductors stranded in layers with optimal lay-length

Green-yellow earth core in the outer layer

Polyurethane/PUR outer jacket TMPU- orange (RAL 2003)

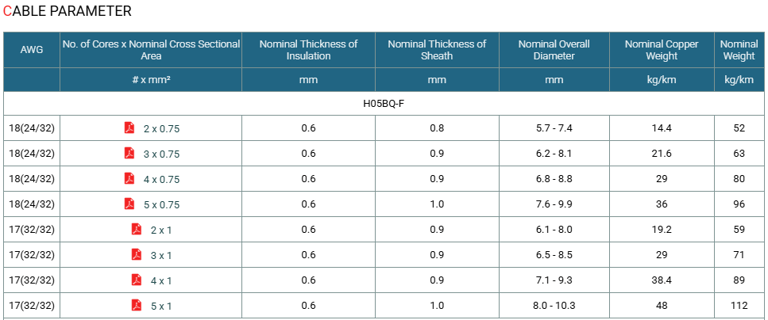

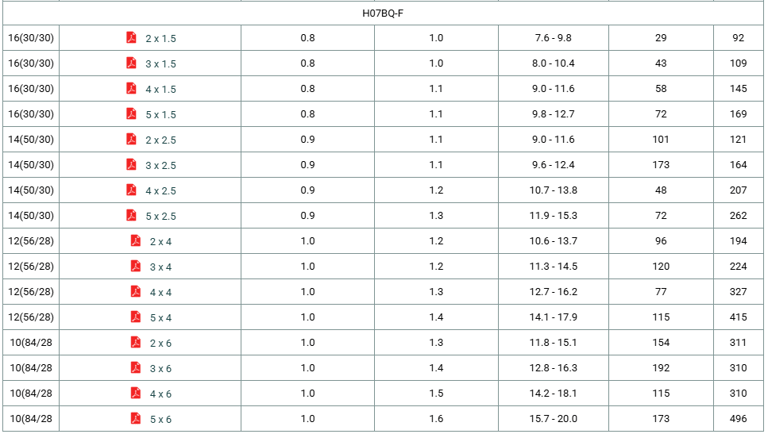

Technical Characteristics

Working voltage : 300/500 volts(H05BQ-F), 450/750 volts(H07BQ-F)

Test voltage : 2000 volts(H05BQ-F), 2500 volts(H07BQ-F)

Flexing bending radius : 5 x Ø

Fixed bending radius : 3 x Ø

Flexing Temperature : -40º C to +80º C

Fixed Temperature : -50º C to +90º C

Short circuit Temperature: +250º C

Flame retardant : NF C 32-070

Insulation resistance : 20 MΩ x km
