H05BZ5-F / H07BZ5-F EV Connection Cable
Suitable for trailing EV plug connections to vehicle.
APPLICATION Robust flexible multicore PUR sheathed cable compatible with European standard electric vehicle AC charging modes 1(single phase - domestic), 2 and 3 (single/three phase -commercial/public) installations. Suitable for trailing EV plug connections to vehicle. |
CHARACTERISTICS Voltage Rating U/Uo H05BZ5-F 300/500V H07BZ5-F - 450/750V Temperature Rating Operating: -40°C to +90°C Minimum installation and use temperature: -40°C Maximum temperature of short circuit: +250°C Minimum Bending Radius 6 x overall diameter |

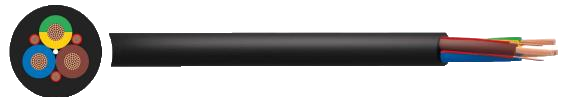

CONSTRUCTION
Conductor
Class 5 flexible stranded Copper
Insulation
Rubber Compound type EV1-2
Control/Pilot Cores
Class 5 Flexible Copper with Rubber insulation
Sheath
PUR-HF (Polyurethane, Halogen-Free)
Sheath Colour
● Black
Orange
