H05G-K / H07G-K
Cable
Application and Description
These cables are recommended for the internal wiring of switchboards and distributor boards as well as in operating parts in or on lights. The higher temperature range allows for connections to heaters with an alternating nominal voltage of 1000V. or direct nominal voltage of 750V. These cables are all allowed for laying in tubes in and under plaster.
Standard and Approval
NF C 32-102-7
CE Low Voltage Directive 73/23/EEC and 93/68/EEC
ROHS compliant

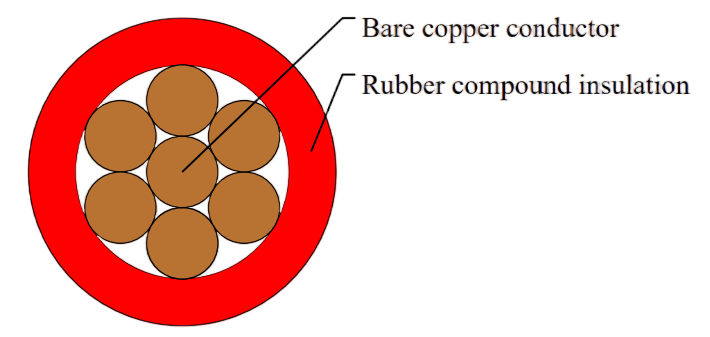

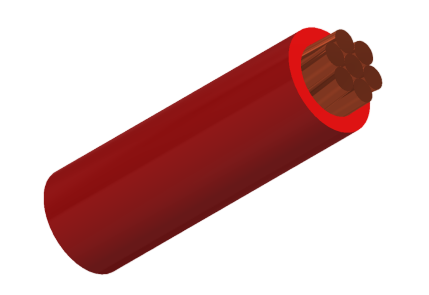

Cable Construction
Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
Rubber compound type EI3 (EVA) to DIN VDE 0282 part 7 insulation
Cores to VDE-0293 colors
Technical Characteristics
Working voltage : 300/500V (H05G-K) , 450/750V (H07G-K)
Test voltage : 2000V (H05G-K) , 2500V (H07G-K)
Flexing bending radius : 7 x Ø
Static bending radius : 7 x Ø
Flexing temperature : -25º C to +110º C
Static temperature : -40º C to +110º C
Short circuit Temperature : +160º C
Flame retardant : NF C 32-070
Insulation resistance : 10 MΩ x km
