H05GG-F
Cable
Application and Description
For general use in domestic premises, kitchens and offices and for supplying appliances where the cables are subjected to low mechanical stresses. Also for low temperature uses.(eg., cooking appliances, soldering irons, toasters)
Standard and Approval
HD 22.11 S1
CEI 20-19/11
NFC 32-102-11

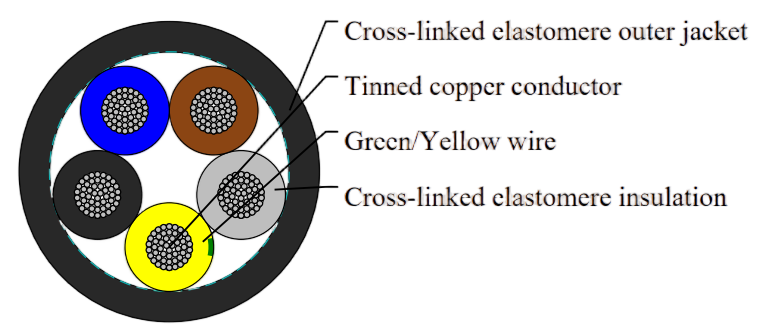

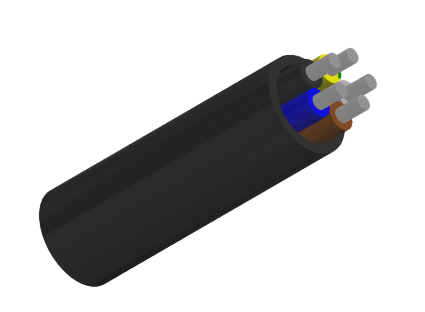

Cable Construction
Fine tinned copper strands
Strands to VDE-0295 Class-5, IEC 60228 Cl-5
Cross-linked elastomere EI3 insulation
Color code VDE-0293-308
Cross-linked elastomere EM 9 outer jacket - black
Technical Characteristics
Working voltage | 300/500V |
Test voltage | 2000V |
Flexing bending radius | 4 × Ø |
Static bending radius | 3 × Ø |
Temperature range | -15°C to +110°C |
Short circuit temperature | 200°C |
Flame retardant | IEC 60332 -1 |
Halogen-free | IEC 60754-1 |
Low smoke | IEC 60754-2 |
Smoke density | IEC 61034 |
