H05SS-F/H05SST-F
Cable
Application and Description
These cables are special 180 Degree C., harmonized, heavy-duty, tear-resistant black silicone multi-core cable for use in high and low temperature areas or where UV light can be damaging. The harmonization approval on these cables makes them ideal for export to or use in European countries and markets.
These cables are mainly found in steel mills, foundries, glass factories, baking equipment, burners, heating and lighting systems. The cables have improved characteristics against mechanical stress and are ideal for permanent mechanically protected cable for lighting in industrial applications.
The silicone jacket provides added heat-resistance, chemical, oil and acidic resistance. Not permitted for outdoor use.
Standard and Approval
HD 22.15 S1
VDE-0282 Part 15
VDE-0250 Part-816 (N2MH2G)
CE low voltage directive 72/23/EEC & 93/68/EEC
ROHS compliant

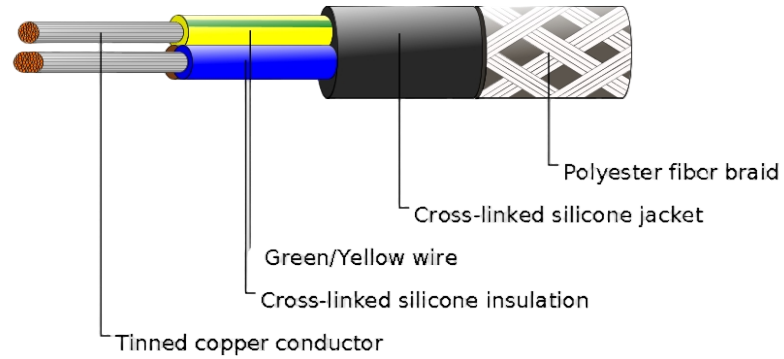

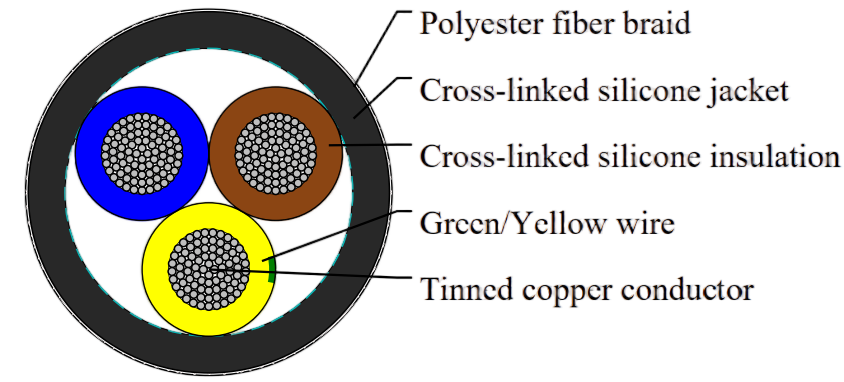

Cable Construction
Fine tinned copper strands |
Strands to VDE-0295 Class-5, IEC 60228 Cl-5 |
Cross-linked silicone (EI 2) core insulation |
Color coded to VDE-0293-308 |
Cross-linked silicone (EM 9) outer jacket - black |
Overall polyester fiber braid(only for H05SST-F) |
Technical Characteristics
WORKING VOLTAGE | 300/500V |
|---|---|
TEST VOLTAGE | 2000V |
FLEXING BENDING RADIUS | 7.5×Ø |
STATIC BENDING RADIUS | 4 x Ø |
TEMPERATURE RANGE | -60 ºC to +180 ºC |
SHORT CIRCUIT TEMPERATURE | +220 ºC |
FLAME RETARDANT | IEC 60332 -1 |
INSULATION RESISTANCE | 200 MΩ x km |
HALOGEN-FREE | IEC 60754-1 |
LOW SMOKE | IEC 60754-2 |
