H05V-K

Application and Description

These insulated wires are determined for installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributors boards, in tubes, under and surface mounting of plasters.

Standard and Approval

CEI 20-20/3

CEI 20-35 (EN60332-1)

CEI 20-52

HD 21.3 S3

CE Low Voltage Directive 73/23/EEC and 93/68/EEC

ROHS compliant

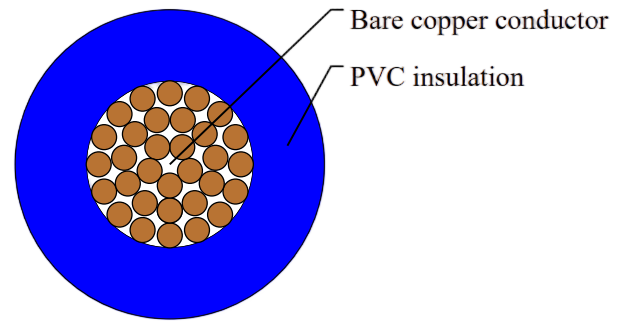

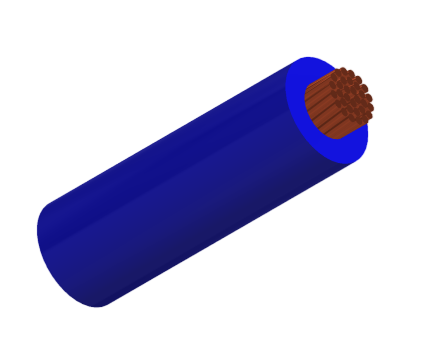

Cable Construction

Fine bare copper strands

Strands to VDE-0295 Class-5, IEC 60228 Class-5

Special PVC TI1 core insulation

Cores to VDE-0293 colors on chart

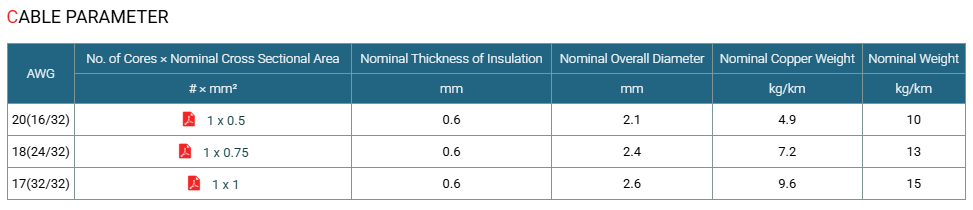

Technical Characteristics
