H05V-R/H07V-R
Cable
Application and Description
These cables are preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required. Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country and for MRO replacement of European made equipment wire.
Standard and Approval
CEI 20-20/3 , CEI 20-35 (EN60332-1), CEI 20-52,
CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

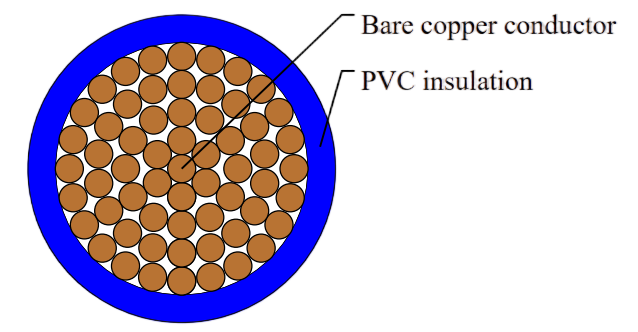

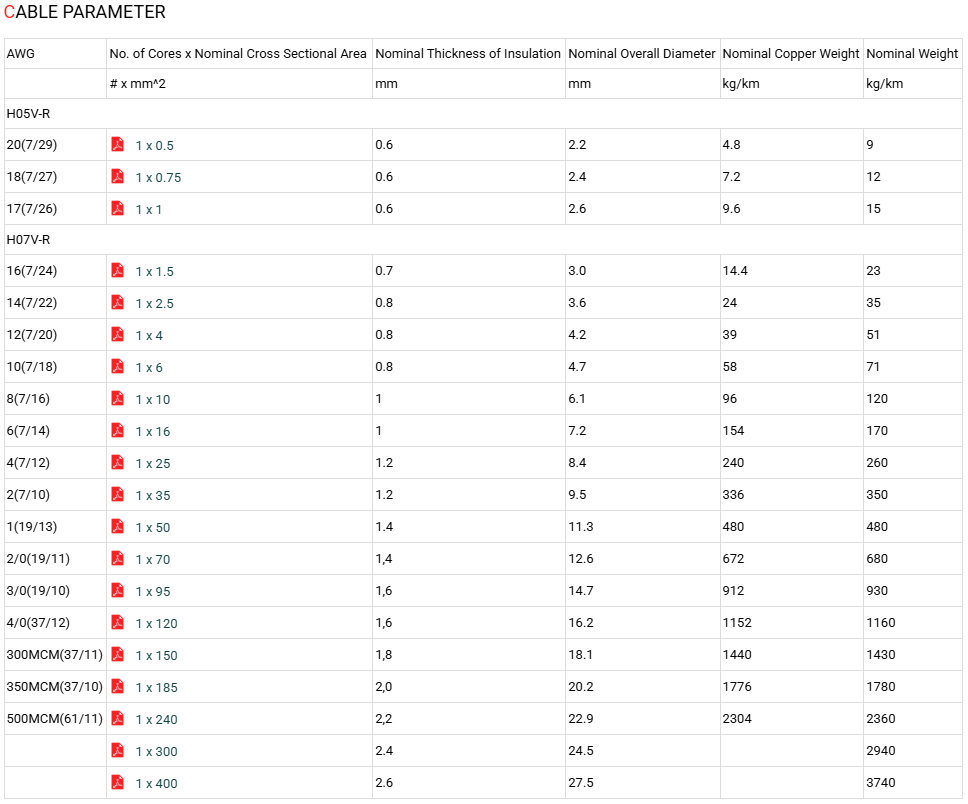

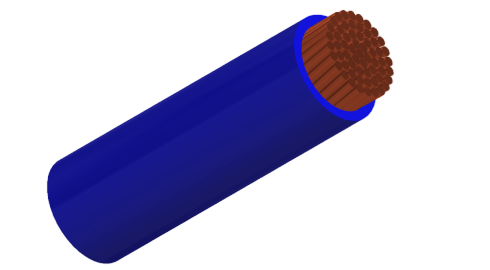

Cable Construction
Technical Characteristics
Bare copper solid/strands conductor |
Strands to VDE-0295 Class-2, IEC 60228 Cl-2 |
Special PVC TI1 core insulation |
Cores to VDE-0293 colors on chart |
Working voltage | 300/500 volts(H05V-R), 450/750 volts(H07V-R) |
Test voltage | 2000 volts(H05V-R), 2500 volts(H07V-R) |
Flexing bending radius | 15 x O |
Static bending radius | 15 x O |
Flexing temperature | -5oC to +70oC |
Static temperature | -30oC to +80oC |
Short circuit temperature | +160oC |
Flame retardant | IEC 60332.1 |
Insulation resistance | 10 MΩ x km |
