H05V-U / H07V-U

Application and Description

H05 V-U/(H)05 V-U

These insulated wires are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.

H07 V-U/(H)07 V-U

These insulated wires are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or tanks.

These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against ground.

Standard and Approval

• CEI 20-20/3, CEI 20-35, CEI 20-52, HD 21.3 S3, IEC60332

• CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

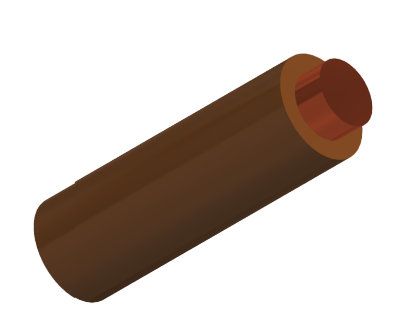

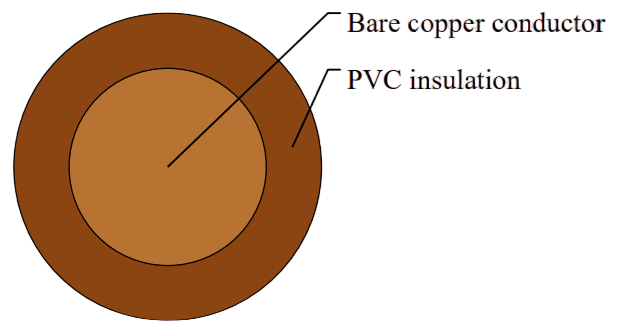

Cable Construction

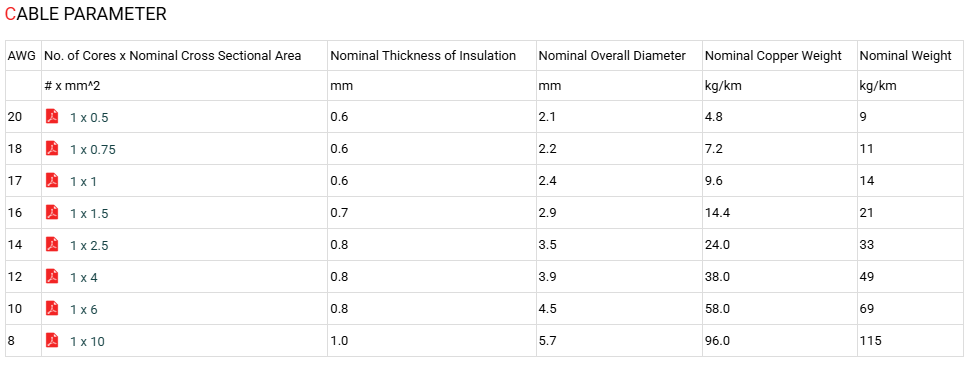

Technical Characteristics
