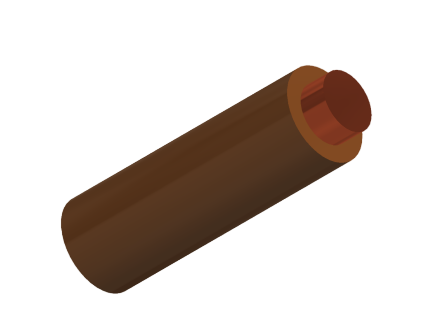

H05V-U/H07V-U

Application and Description

H05 V-U/(H)05 V-U

These insulated wires are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.

H07 V-U/(H)07 V-U

These insulated wires are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against ground.

Standard and Approval

CEI 20-20/3

CEI 20-35

CEI 20-52

HD 21.3 S3

IEC60332

CE Low Voltage Directive 73/23/EEC and 93/68/EEC

ROHS compliant

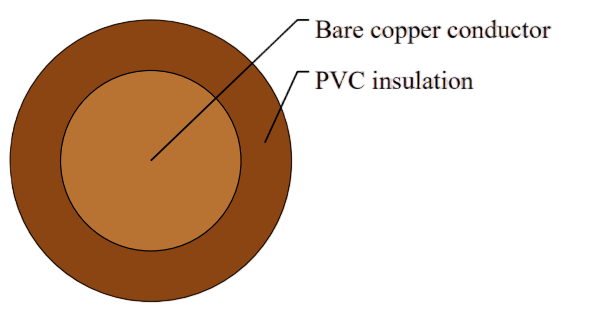

Cable Construction

Solid bare copper single wire

Solid to DIN VDE 0295 cl-1 and IEC 60228 cl-1

Special PVC TI1 core insulation

Cores to VDE-0293 colors on chart

H05V-U (20, 18 & 17 AWG)

H07V-U (16 AWG and Larger)

Technical Characteristics
