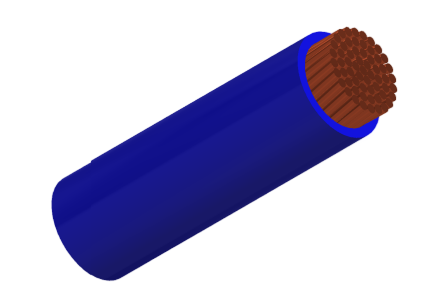

H05V-U/H07V-U/H07V-R

Application and Description

H05 V-U/(H)05 V-U

These insulated wires are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.

H07 V-U/(H)07 V-U

These insulated wires are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against ground.

H07 V-R

These cables are preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required.

Standard and Approval

NP2356/3

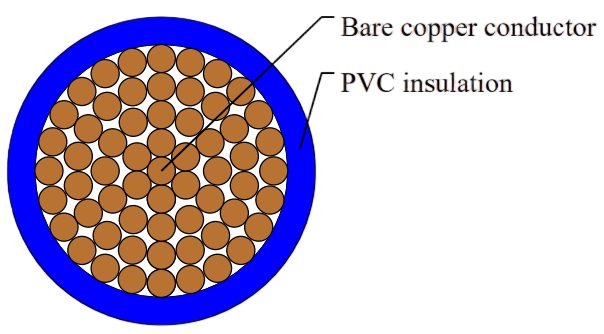

Cable Construction

Solid bare copper single wire

Solid to DIN VDE 0295 cl-1 and NP 2363 cl-1(for H05V-U / H07V-U), cl-2(for H07V-R)

Special PVC TI1 core insulation

Color coded to HD 308

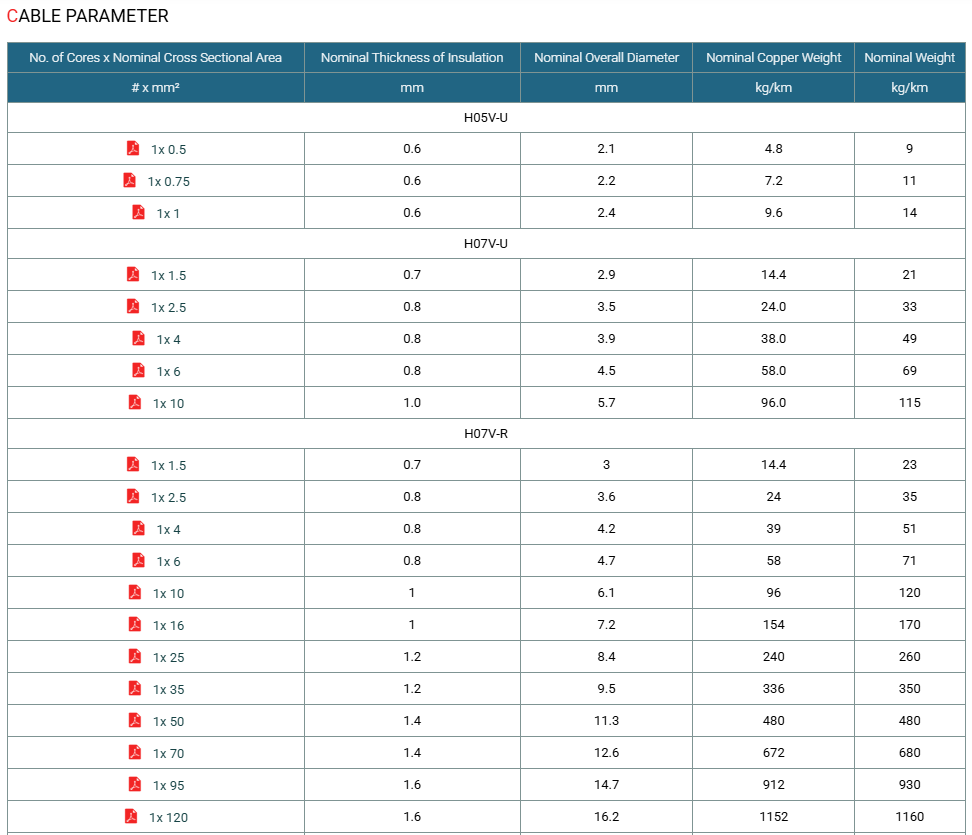

Technical Characteristics
