H05V2-K UL / H07V2-K UL
Cable
Application and Description
H05V2-K UL / H07V2-K UL are internationally approved harmonized, UL/CSA and AWM/MTW approved PVC European flexible single-conductor wires with increased temperature range for HAR/IEC and higher working voltage for UL-AWM.
Due to these increases it is suitable for use in connections and internal wirings of frequency converters. Can be found in appliance wiring and machine tool wiring as well as in control systems.
They may also be used in pipes and flexible conduits. Recommended for the internal wiring of apparatus, switchboards and distributor boards in electronic and electrical equipment designed for international use in North American & European countries and for MRO replacement of international made equipment wire.
Standard and Approval
NF C 32-201-7
HD 21.7 S2
H05V2-K / H07V2-K
VDE-0281 Part-3
UL-Standard and Approval 1063 MTW
UL-AWM Style 10269
CSA TEW
CSA-AWM 1 A/B
FT-1
CE Low Voltage Directive 73/23/EEC and 93/68/EEC
ROHS compliant

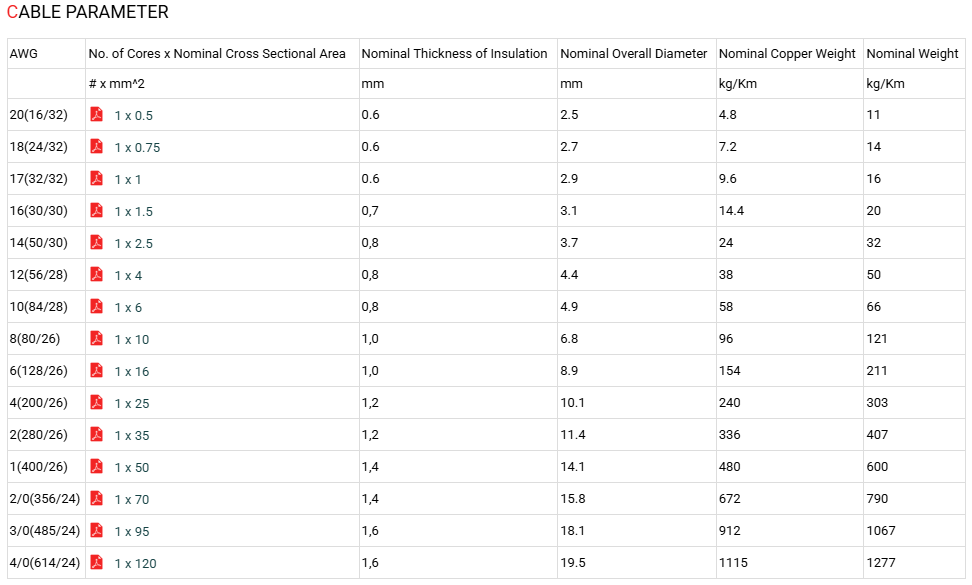

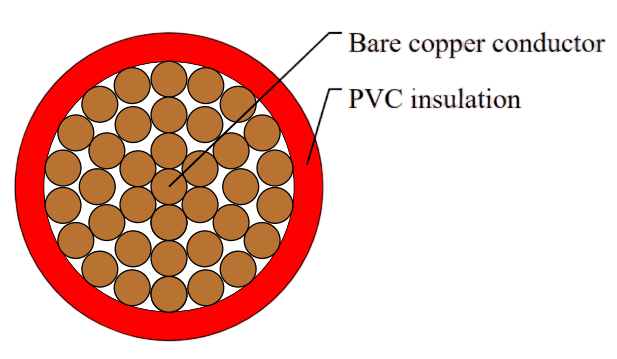

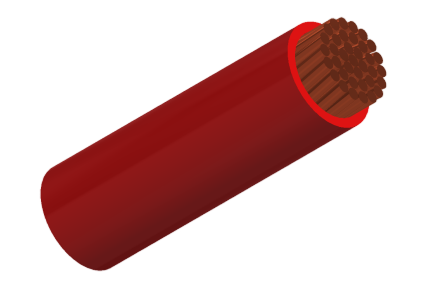

Cable Construction
Technical Characteristics
Fine tinned copper strands |
Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
Special PVC core insulation |
Cores to VDE-0293 colors on chart |
H05V2-K UL (22, 20 & 18 AWG) |
H07V2-K UL (16 AWG and Larger) |
X05V2-K UL & X07V2-K UL for non-HAR colors |
Working voltage | 300/500v (H05V2-K UL) |
Working voltage | 450/750v (H07V2-K UL) |
Working voltage UL(MTW) & CSA | 600v |
Working voltage UL (AWM) | 1000v |
Test voltage | 2500 volts (4000 volts UL) |
Flexing/Static bending radius | 10-15 x O |
Temperature HAR/IEC | -40oC to +90oC |
Temperature UL-AWM | -40oC to +105oC |
Temperature UL-MTW | -40oC to +90oC |
Temperature CSA-TEW | -40oC to +105oC |
Flame retardant | NF C 32-070, FT-1, UL VW-1 |
Insulation resistance | 20 MΩ x km |
