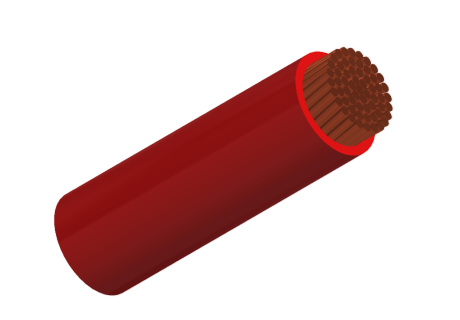

H05V2-K/H07V2-K

Application and Description

These special heat-resistant flexible single-conductor hook-up wires are ideal for use in power current installation, switch cabinets, motors and transformers which are subject to direct contact with high temperature (e.g. varnishing machines and drying towers etc.). These are also suitable for inside wiring of electrical equipments such as lighting and heating apparatus.

Standard and Approval

CEI 20-20

CEI20-52

HD 21.7

CE Low Voltage Directive 73/23/EEC and 93/68/EEC

ROHS compliant

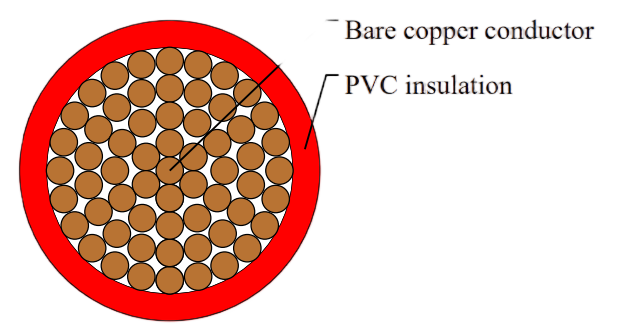

Cable Construction

Fine bare copper strands

Strands to VDE-0295 Class-5, IEC 60228 Class-5, BS 6360 cl. 5 and HD 383

Special heat resistant PVC TI3 core insulation to DIN VDE 0281 part 7

Cores to VDE-0293 colors

H05V2-K (20, 18 & 17 AWG)

H07V2-K (16 AWG and Larger)

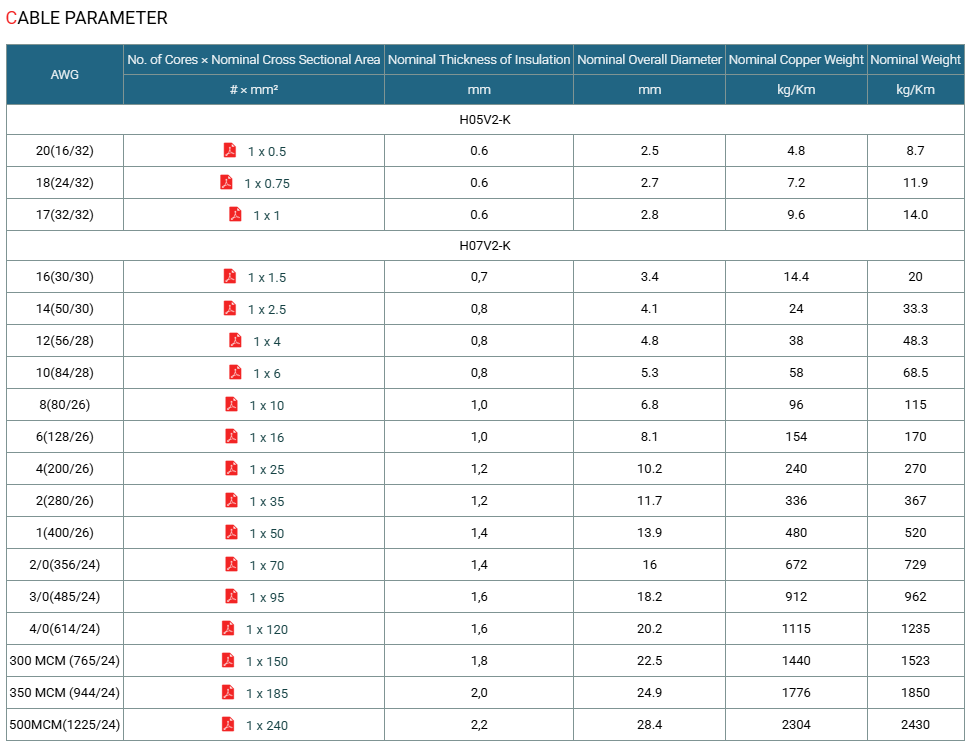

Technical Characteristics
