H05V2-U/H07V2-U

Application and Description

These cables are for fixed protected installation inside appliances and in, or on, lighting fittings. Suitable for installation in surface mounted or embedded conduits, only for signalling and control circuits. Maximum conductor temperature in normal use 90°C. Not to be used in contact with object higher then 85°C. Not suitable for fixed distribution system.

Standard and Approval

CEI20-20/7

HD 21.7 S2

CE Low Voltage Directive 73/23/EEC and 93/68/EEC

ROHS compliant

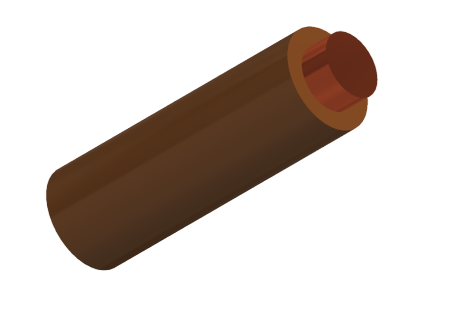

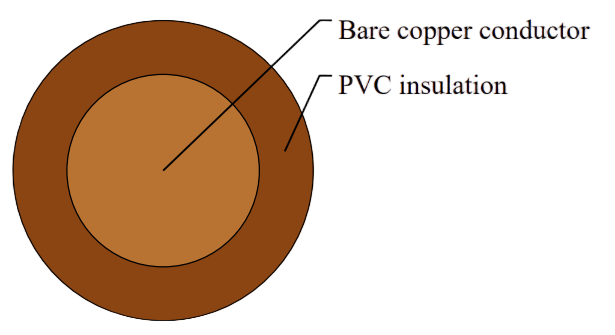

Cable Construction

Solid bare copper single wire

Solid to DIN VDE 0281-3,NF C 32-201-3 and IEC 60227-3

Special PVC TI3 ore insulation

Cores to VDE-0293 colors on chart

H05V-U (20, 18 & 17 AWG)

H07V-U (16 AWG and Larger)

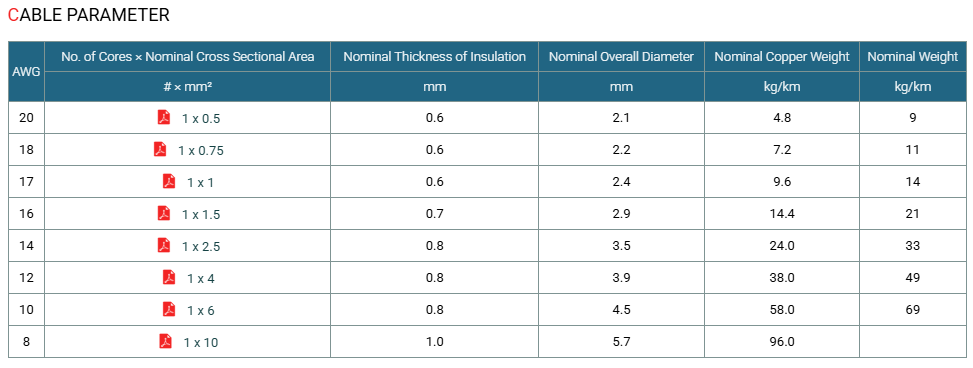

Technical Characteristics
