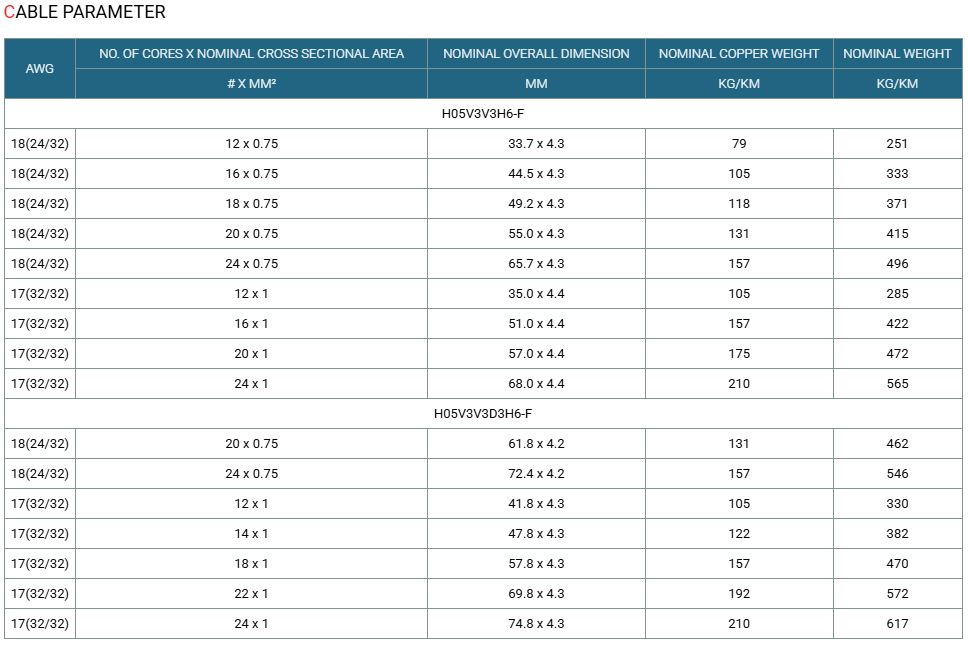

H05V3V3H6-F/H05V3V3D3H6-F

Application and Description

This kind of flat cables are used in crews of elevators for people and have burdens, and conducting very swift and hard parts of machines.H05V3V3H6-F type cables having no strechter carrier elements are adviced to use in elevator instalations max. swift not pass 4.0 m/s.

These cables freely hanging height is max. 45m and movement limit is max 80m. For the H05V3V3D3H6-F, at the swifts between 4.0/s to 6.3m/s, it’s adviced to use the cables having strechter carrier elements. H05V3V3D3H6-F type cables freely hanging height is max. 80m movement limit is max. 150m.

Standard and Approval

• EN 50214

• HD 359 S3

• IEC 60332-1

• CSA C22.2 N° 49

• DIN VDE 0281 part 404

• UL 62

Cable Construction

Technical Characteristics
