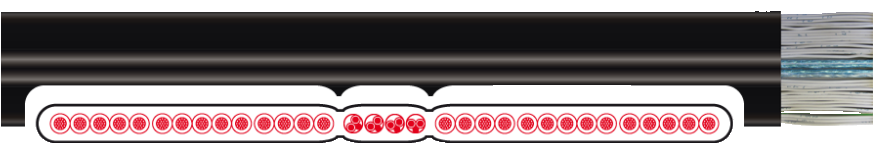

(H)05VE7A7VH6-F 28G0.75+4X(2X0.34)ST Flexible Power and Control Lift Cable
Designed for Continuous Strong Bending in Lift Applications, Suitable for Dry and Humid Environments
$15.00
Structure & Specifications |
conductor material bare copper strand conductor class acc. to DIN VDE 0295 class 5 resp. IEC 60228 class 5 core insulation 0,75 mm²: PVC; 0,34 mm²: Foam-Skin PP core identification 0,75 mm²: BK with WH numerals 1-27 and GNYE, 0,34 mm²: WH-BU, WH-OR, WH-GN, WH-BN stranding 0,34 mm²: 2 cores twisted to a pair with fillers shield 0,34 mm²: plastic clad aluminium foil with subjacent drain wire overall stranding parallel side by side: 14 cores 0,75 mm² (no. 1-14) - 4 shielded pairs 0,34 mm² (WH-BU, WH-OR, WH-GN, WH-BN) - 14 cores 0,75 mm² (no. 15-24, GNYE, no. 25-27) outer sheath PVC sheath colour black printing yes rated voltage Uo/U: 300/500V testing voltage 0,75 mm²: 2 kV; 0,34 mm²: c/c 1,5 kV, c/s 1 kV conductor resistance 0,75 mm²: 26 Ω / km; 0,34 mm²: 54,4 Ω / km current carrying capacity acc. to DIN VDE 0298 part 4 characteristic impedance pairs: 0,34 mm²: 110 Ω ± 10 % min. bending radius moved 150 mm speed max. 6,0 m/s suspension height max. 45 m operat. temp. moved min/max -15 °C / +70°C burning behavior flame retardant and self-extinguishing acc. to IEC 60332-1-2 standard acc. to EN 50214 |
Application |
power and control lift cable, where the cable is bended strongly in permanent moving operation in one level. Suitable for dry and humid rooms. |
Special Features |
• significant smaller bending radius compared to round cables free from lacquer damaging substances and silicone (during production) |
Remarks |
• conform to RoHS • conform to 2014/35/EU-Guideline ("Low-Voltage Directive") CE • We are pleased to produce special versions, other dimensions, core and jacket co- lours on request. • Available accessory you'll find on pages 15.35.XX |
