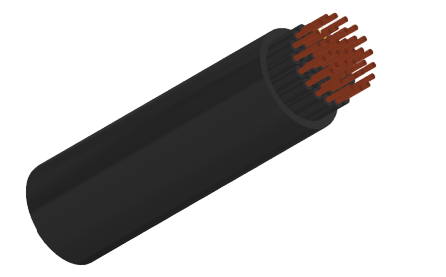

H05VV5-F
Cable
Application and Description
These cables are suitable for dry, damp and wet locations but not in the open-air. They are used as screened termination and connection cable in the control, measuring and signal technology. The copper braiding optimises protection against external interferences, like electromagnetic fields and stray frequencies. Suitable as a signal and impulse cable for control and inspection of industrial plants, machinery and working processes.
Standard and Approval
HD 21.13 S1
VDE-0281 Part-13
CEI 20-20/13
CEI 20-35 (EN60332-1)
CEI 20-52
UL 2464

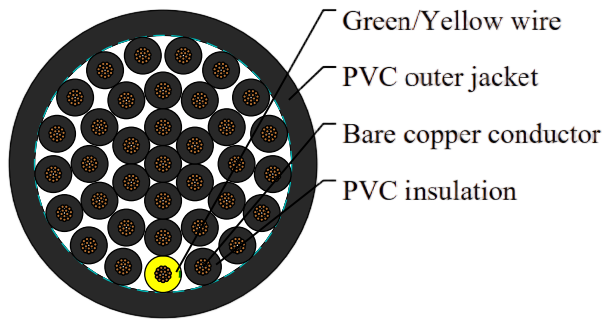

Cable Construction
Fine bare copper strands |
Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
PVC insulation T12 to DIN VDE 0281 part 1 |
Green-yellow grounding (3 conductors and above) |
Cores to VDE-0293 colors |
PVC sheath TM5 to DIN VDE 0281 part 1 |
Technical Characteristics
WORKING VOLTAGE | 300/500v |
|---|---|
TEST VOLTAGE | 2000volts |
FLEXING BENDING RADIUS | 7.5 x Ø |
STATIC BENDING RADIUS | 4 x Ø |
FLEXING TEMPERATURE | -5 ºC to +70 ºC |
STATIC TEMPERATURE | -40 ºC to +70 ºC |
SHORT CIRCUIT TEMPERATURE | +150 ºC |
FLAME RETARDANT | IEC 60332.1 |
INSULATION RESISTANCE | 20 MΩ x km |
