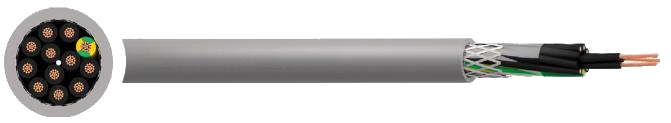

H05VVC4V5-K Cable
This cable is resistant against most usual chemicals, oils and greases.
APPLICATION Flexible power, process control and instrumentation cable for industry and machinery environment with increased requirements to electromagnetic compatibility. This cable is resistant against most usual chemicals, oils and greases. |
CHARACTERISTICS Voltage Rating (Uo/U) 300/500V Voltage Test 2kV Temperature Rating Fixed: -40ºC to +70ºC Installation: -5ºC to +70ºC Conductor Maximum Temperature +70ºC Transfer Impedance 250 Ohm/km Minimum Bending Radius Fixed Installation: 6 x overall diameter Moved Application: 20 x overall diameter |
CONSTRUCTION
Conductor
Class 5 Fine Stranded Bare Copper
Insulation
PVC TI 2 (Polyvinyl Chloride)
Screen
TCWB (Tinned Copper Wire Braid)
Outer Sheath
PVC TM2 (Polyvinyl Chloride)
Core Identification
Black numbered + Green/Yellow
Sheath Colour
Grey
