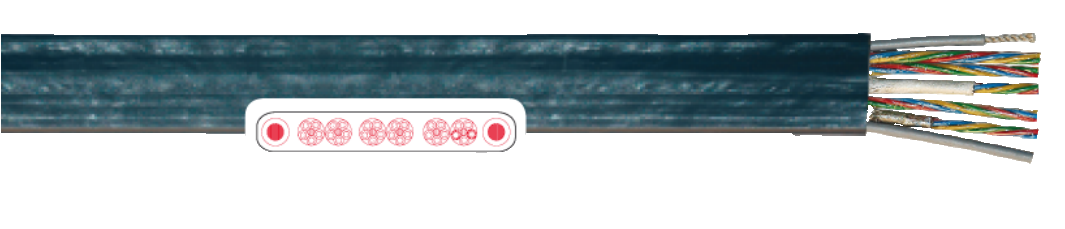

H05VVD3H6-F, KYFLTY, KYFLTFY, KYCFLTY, KYFLTCY (EMV) Shielded & Unshielded Power and Control Cables

With Supporting Element for Crane Systems, High-Rack Transport, Industrial TV, and Telecommunication in Dry and Humid Environments

$10.00

Structure & Specifications

conductor material bare copper strand

conductor class acc. to DIN VDE 0295 class 5/6 resp. IEC 60228 class

5/6

core insulation PVC

core identification acc. to VDE 0293-308 up to 5 wires coloured, from 6 wi-

res black with white numerals with or without GNYE re- sp. special colour

stranding cores resp. bundles parallel side by side

shield single core or bundle with copper braid or wrapped wire

bare or tinned; coverage ca. 70% - 80% outer sheath PVC

sheath colour black, RAL 9005

printing yes

rated voltage 0,5 mm² = 300V; > 1,0 mm² = Uo/U 300/500 V

testing voltage 1,2 kV / 2 kV

current carrying capacity acc. to DIN VDE, see Technical Guideline

min. bending radius fixed 10 x d

min. bending radius moved 10 x d

speed max. 1,6 m / s

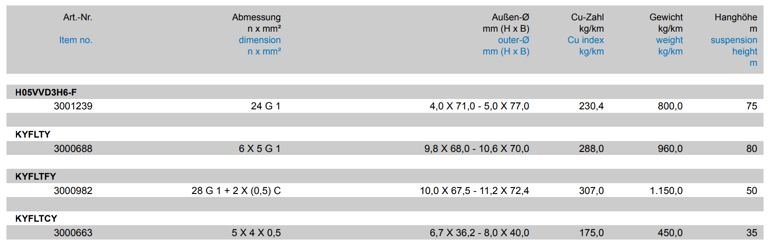

suspension height see table

operat. temp. fixed min/max H05...: -25 °C / +60 °C; KY...: -40 °C / +70 °C

operat. temp. moved min/max H05...: -25 °C / +60 °C; KY...: -25 °C / +60 °C temp. at conductor +70 °C

burning behavior self-extinguishing and flame retardant acc. to IEC

60332-1

standard similar to DIN VDE 0250

Application

shielded and unshielded power, control and signal transmission cable with supporting element for crane facilities, current entries to high rack transport vehicles, in industrial television on moving cameras and machine tools. Applicable for all control, measure and telecommunication systems. Suitable for dry and humid rooms.
