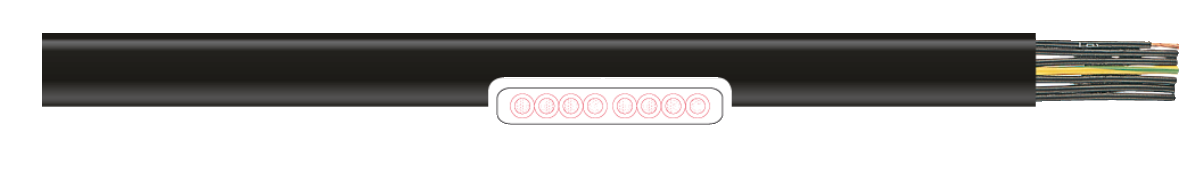

H05VVH6-F, (H)05VVH6-F Multi-Purpose Flexible Cable

Power and Control Cable for Hoisting Devices and Continuous Flexing Applications

$15.00

Structure & Specifications

conductor material bare copper strand

conductor class acc. to DIN VDE 0295 class 5 resp. IEC 60228 cl. 5

core insulation PVC

core identification acc. to VDE 0293-308 up to 5 wires coloured, from 6 wi-

res black with white numerals resp. white with black nu- merals, with or without GNYE

stranding cores resp. bundles parallel side by side

outer sheath PVC

sheath colour black, RAL 9005

printing yes

rated voltage Uo/U 300/500 V

testing voltage 2 kV

current carrying capacity acc. to DIN EN50565-1

min. bending radius fixed acc. to DIN EN50565-1

min. bending radius moved acc. to DIN EN50565-1

speed max. 1,6 m / s

suspension height max. 45 m

operat. temp. fixed min/max -15 °C / +60 °C

operat. temp. moved min/max -5 °C / +60 °C temp. at conductor +70 °C

burning behavior self-extinguishing and flame retardant acc. to IEC

60332-1

standard acc. to DIN EN 50214

Application

power and control cable for trolley systems, transfer lines, machine-tools especially on hoisting devices, lift, crane and container bridges. Also in applications where cables are bended strongly in permanent moving operation in one level. Suitable for dry, humid and wet rooms.
