H05VVH6-F/H07VVH6-F

Application and Description

The cables are used for applications with medium mechanical stresses and sharp bending in one place. They are suitable for use in dry, damp and wet rooms as power and control cable, especially on hoisting equipment, handling systems, machine tools, etc.

Standard and Approval

HD 359 S3

CEI 20-25

CEI 20-35

CEI 20-52

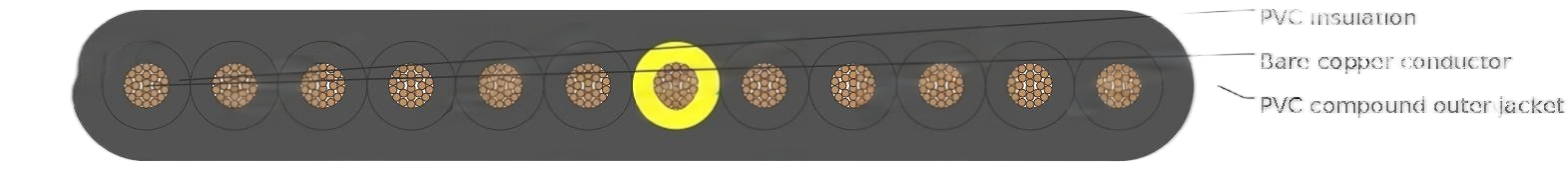

Cable Construction

Fine bare or tinned copper strands

Strands to VDE-0295 Class-5, IEC 60228 Class-5

PVC compound insulation TI2 to VDE 0207 part 4

Color coded to VDE-0293-308

PVC compound outer jacket TM2 to VDE 0207 part 5

Technical Characteristics
