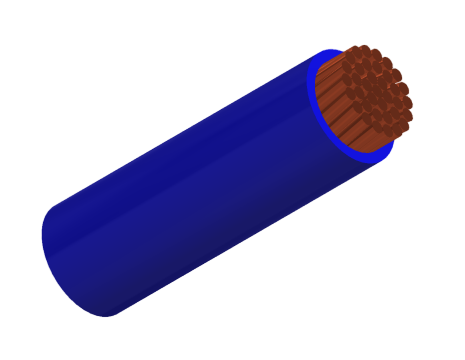

H05Z-K/H07Z-K

Application and Description

These cables are preferably for installation indoors, in cable ducts and in industrial plants or switching stations, under ground installation. Can be used in switchboards and distributor boards or where a thicker strand of multi-wire is required. Found in electronic and electrical equipment and switchgear cabinets designed for export to a European country and for MRO replacement of European made equipment wire.

Standard and Approval

CEI 20-20/3

CEI 20-35 (EN60332-1)

CEI 20-52

CE Low Voltage Directive 73/23/EEC and 93/68/EEC

ROHS compliant

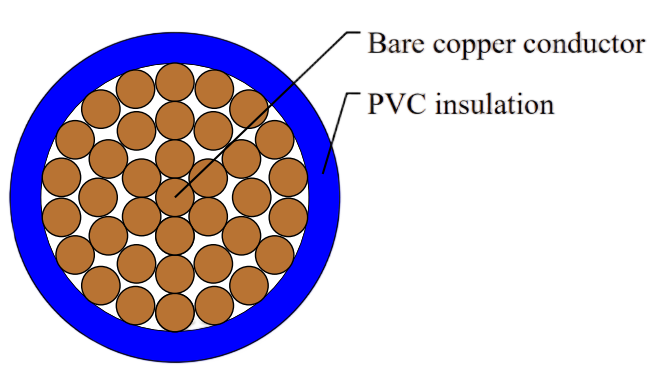

Cable Construction

Bare copper solid/strands conductor

Strands to VDE-0295 Class-2, IEC 60228 Cl-2

Special PVC TI1 core insulation

Cores to VDE-0293 colors on chart

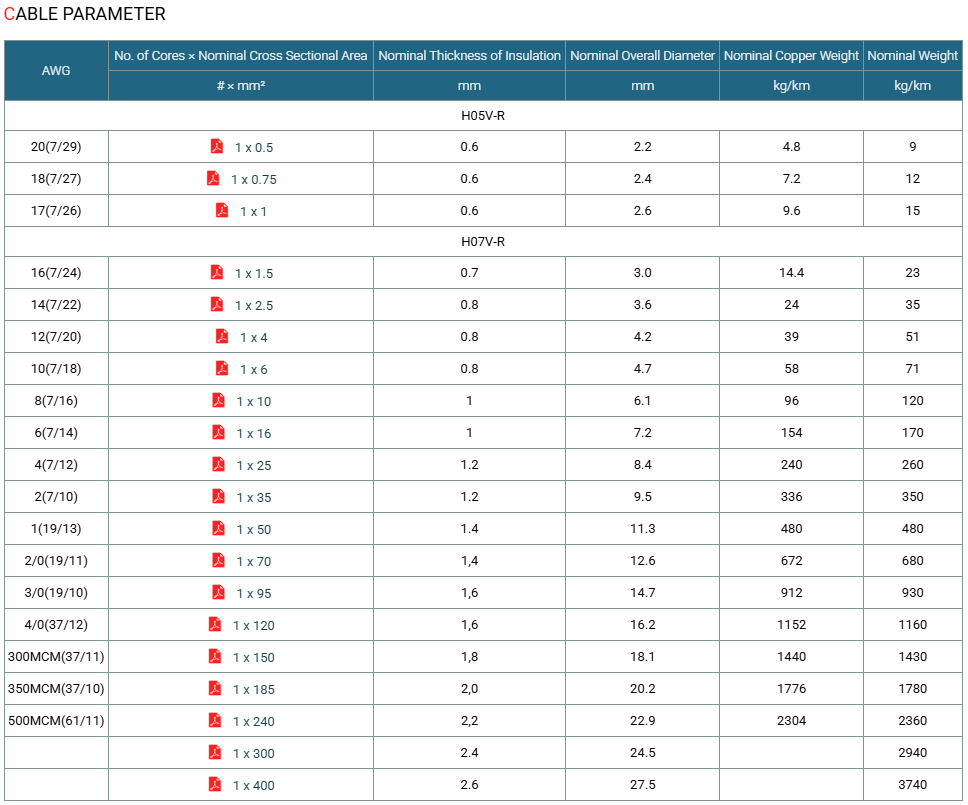

Technical Characteristics
