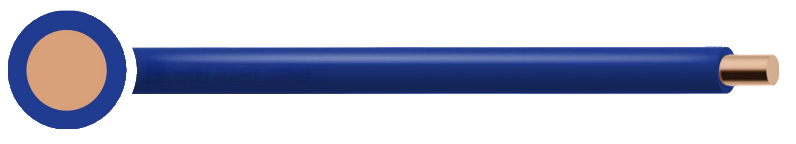

H05Z-U Cable
Single core rubber insulated H05Z cable with solid copper conductor for internal installations in dry, clean environments requiring a rated voltage of 300/500V
APPLICATION
Single core rubber insulated H05Z cable with solid copper conductor for internal installations in dry, clean environments requiring a rated voltage of 300/500V.
CHARACTERISTICS
Voltage Rating
H05Z-U: 300/500V
Temperature Rating
Maximum conductor operating temperature: 90°C
Maximum conductor short-circuit temperature: 250°C
Minimum installation temperature: 5°C
CONSTRUCTION
Conductor
Class 1 solid Copper
Insulation
LSZH (Low Smoke Zero Halogen)
Insulation Colour
● Red ● Black Blue Orange White Yellow
Green/Yellow ● Grey Brown Violet Pink
