H05Z-U / H07Z-U / H07Z-R

Application and Description

These cables are designed for the internal wiring of switchboards and distributor boards with an alternating nominal voltage up to 1000 Volts or a direct voltage up to 750 volts. Generally install in pipes or ducts and internal wiring of appliances with maximum operating temperature of 90º C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gasses when burnt which is particularly important where electronic equipment is installed.

Standard and Approval

NF C 32-102-9

Cable Construction

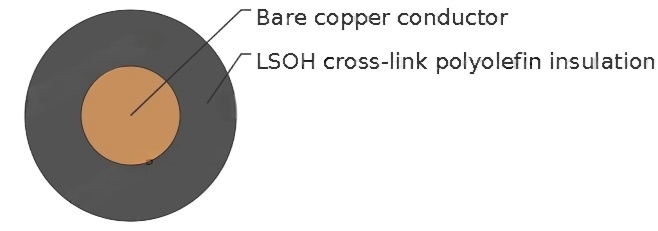

Solid bare copper single wire to IEC 60228 Cl-1(H05Z-U / H07Z-U)

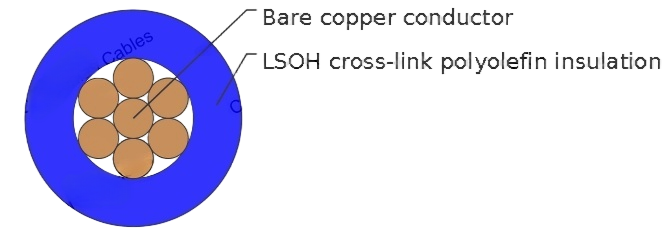

Bare copper strands to IEC 60228 Cl-2 (H07Z-R)

Cross-link polyolefin EI5 core insulation

Cores to VDE-0293 colors

LSOH - low smoke, zero halogen

Technical Characteristics

Working voltage : 300/500v (H05Z-U), 450/750v (H07Z-U / H07Z-R)

Test voltage : 2500 volts

Flexing bending radius : 15 x Ø

Static bending radius : 10 x Ø

Flexing temperature : +5ºC to +90ºC

Short circuit temperature : +250ºC

Flame retardant : NF C 32-070

Insulation resistance : 10 MΩ x km
