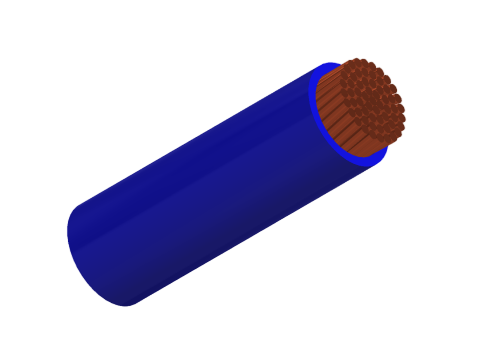

H05Z-U/H07Z-U/H07Z-R

Application and Description

These cables are designed for the internal wiring of switchboards and distributor boards with an alternating nominal voltage up to 1000 Volts or a direct voltage up to 750 volts.

Generally install in pipes or ducts and internal wiring of appliances with maximum operating temperature of 90°C, and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment.

The cables produce no corrosive gasses when burnt which is particularly important where electronic equipment is installed.

Standard and Approval

CEI 20-19/9

CEI 20-35 (EN60332-1) / CEI 30-37 (EN50267)

CENELEC HD 22.9

EN50265-2-2

EN50265-2-1

CE Low Voltage Directive 73/23/EEC and 93/68/EEC

ROHS compliant

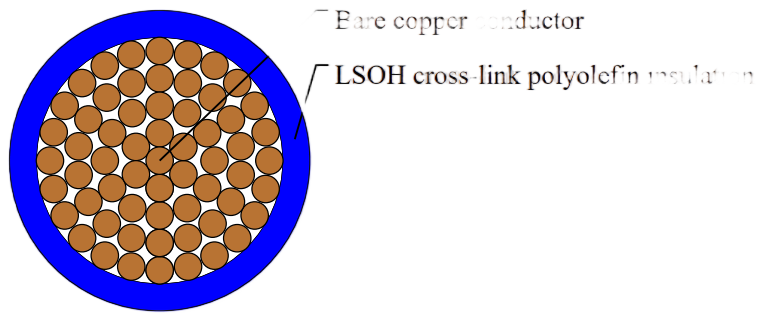

Cable Construction

Solid bare copper single wire to IEC 60228 Cl-1(H05Z-U / H07Z-U)

Bare copper strands to IEC 60228 Cl-2 (H07Z-R)

Cross-link polyolefin EI5 core insulation

Cores to VDE-0293 colors

LSOH - low smoke, zero halogen

Technical Characteristics
