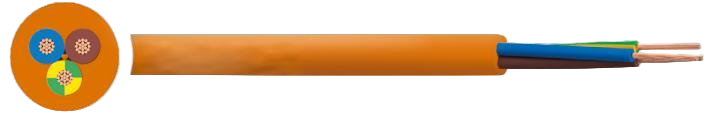

H07BQ-F Cable
Use in dry, humid or moist rooms; fixed installations e.g. on rough-cast in temporary buildings and huts for accommodation purposes.
APPLICATION For use in agricultural workshops, building sites, for heavy duty applications and supplying industrial and agricultural machines and appliances where cables are subject to medium mechanical stresses (e.g. heating plates, inspection lamps, electric tools such as drills, circular saws, and domestic electric tools). Use in dry, humid or moist rooms; fixed installations e.g. on rough-cast in temporary buildings and huts for accommodation purposes. |
CHARACTERISTICS Voltage Rating Uo/U 450/750V Test Voltage 2.5kV Temperature Rating Operating: -40ºC to +90ºC Maximum Short Circuit Temperature: 250ºC (Max. 5 seconds) Minimum Bending Radius 5 x overall diameter |
CONSTRUCTION
Conductor
Class 5 Flexible Copper
Insulation
Cross-linked EPR (Ethylene Propylene Rubber)
Outer Sheath
PUR (Polyurethane)
Core Identi ication
2 core: Blue Brown
3 core: Green/Yellow Blue Brown
4 core: ● Green/Yellow ● Brown ● Black ● Grey
5 core: ● Green/Yellow ● Brown ● Black ● Grey ● Blue
Sheath Colour
Orange
