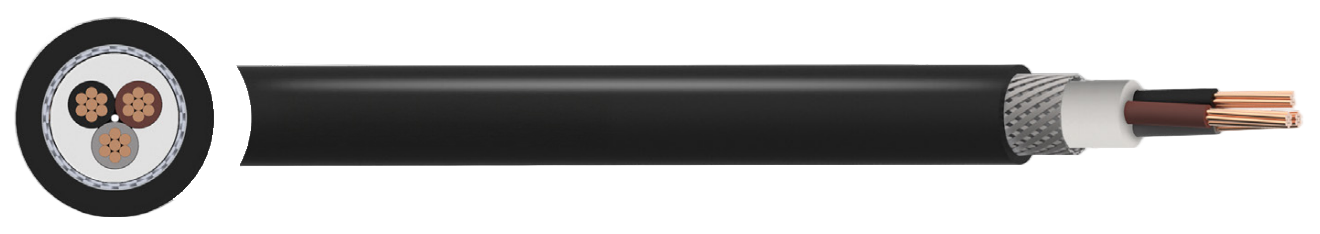

(H)07RC4N8-F Power Distribution Cable – 450/750 V
Flexible, oil- and chemical-resistant screened cable for motors, cranes, and industrial equipment
$8.00
APPLICATION
Power distribution cable for fixed or flexible wiring in industrial equipment including motors and cranes in open, closed, dry or humid areas and under stress of high mechanical-chemical effects. Provides good resistance to oils, acids, chemical agents, ozone and flame. Copper braid for electromagnetic screening.
STANDARDS
EN 50363-1, EN 50363-2-1, EN 60228
Flame Retardant according to IEC/EN 60332-1-2
CHARACTERISTICS
Voltage Rating Uo/U 450/750V
Test Voltage - AC
2.5kV
Temperature Rating
-35ºC to +80ºC
Minimum Bending Radius
Fixed: 7.5 x overall diameter
Flexed: 15 x overall diameter
CONSTRUCTION
Conductor
Class 5 Fine Stranded Annealed Flexible Copper
Insulation
Rubber Compound
Inner Sheath
Rubber Compound
Screen
Tinned Copper Braid - 70% coverage
Sheath
Rubber Compound
Core Identification
2 cores: Blue Brown
3 cores: Green/Yellow Blue Brown
4 cores: ● Green/Yellow ● Brown ● Black ● Grey
5 cores: ● Green/Yellow ● Blue ● Brown ● Black ● Grey
6 cores and above: Black with numbers
Sheath Colour
● Black
