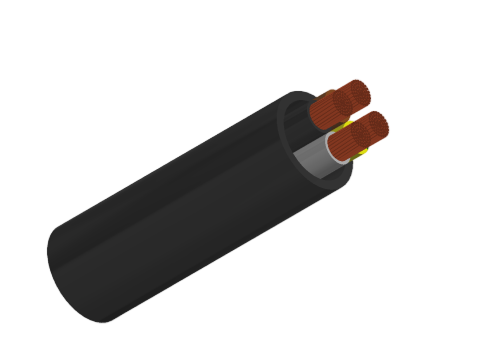

H07RN-F

Application and Description

These cables are designed to provide high flexibility and have the capacity to withstand weather, oils/greases, mechanical and thermal stresses.

Applications include handling quipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also suitable for fixed installations on plaster, temporary buildings and residential barracks and for use in drainage and water treatment, cold environments and severe industrial environments.

Max operating voltage in single or three phase system is Uo/U 476/825 volts. In a direct current system max operating voltage is Uo/U 619/1238 volts. If in a fixed or protected installation Uo/U is 600/1000 volts. These cables are resistant to flame, acids, and oil penetration.

Standard and Approval

CEI 20-19/4 / 20-35 (EN60332-1)

IEC 60245-4

CE low voltage directive 73/23/EEC & 93/68/EEC

ROHS compliant

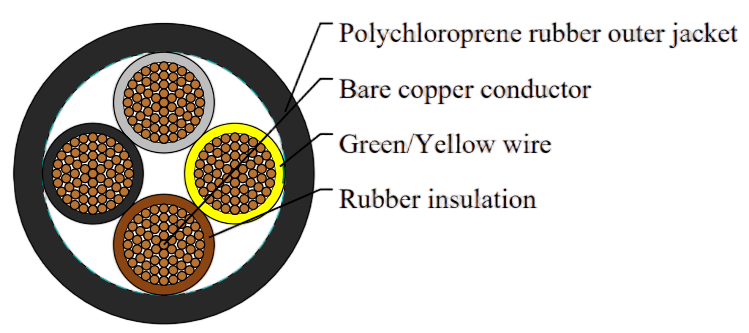

Cable Construction

Fine bare copper strands

Strands to VDE-0295 Class-5, IEC 60228 Class-5

Rubber core insulation EI4 to VDE-0282 Part-1

Color code VDE-0293-308 and HD 186

Green-yellow grounding, 3 conductors and above

Polychloroprene rubber (neoprene) jacket EM2

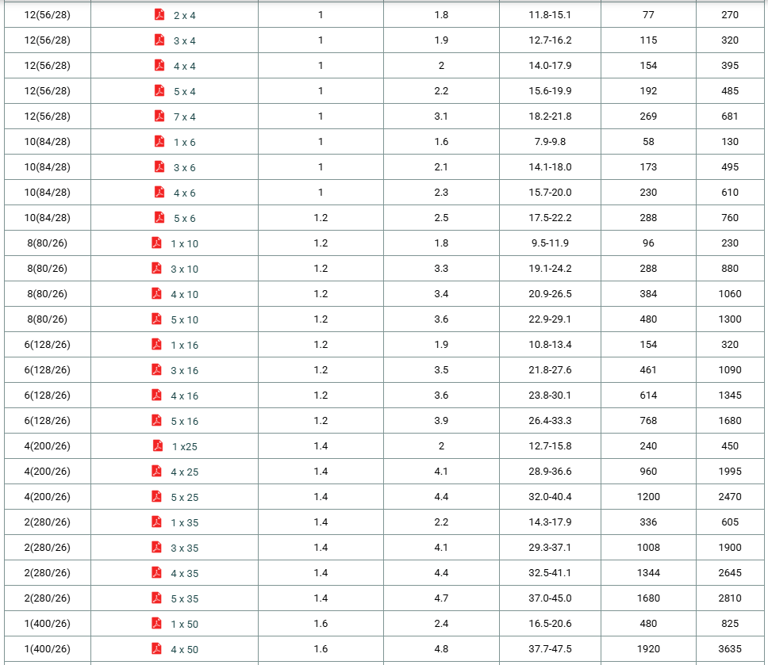

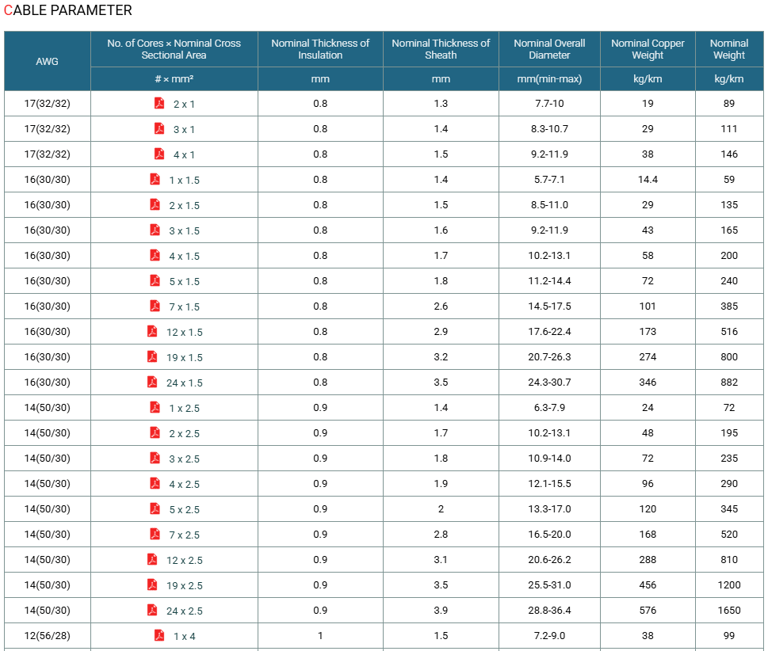

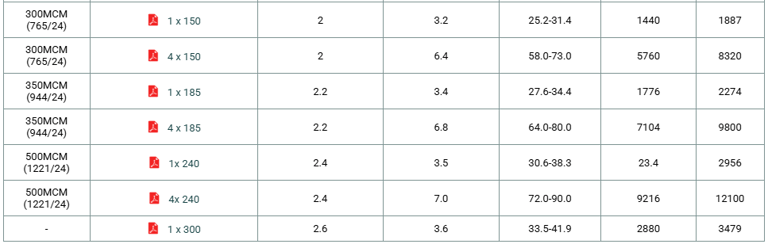

Technical Characteristics
