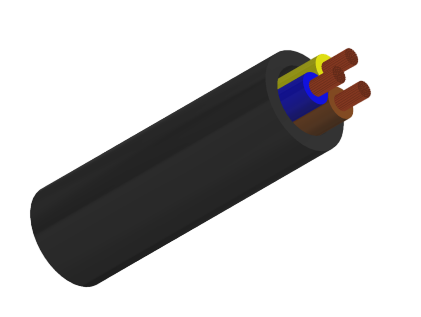

H07RN-F
Cable
Application and Description
These cables are designed to provide high flexibility and have the capacity to withstand weather, oils/greases, mechanical and thermal stresses. Applications include handling quipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also suitable for fixed installations on plaster, temporary buildings and residential barracks and for use in drainage and water treatment, cold environments and severe industrial environments. These cables are resistant to flame, acids, and oil penetration.
Standard and Approval
NF C 32-102-4
EN 50525-2-21
EN 60332-1/NF C 32-070 2.1(C2)
EN 50575(Eca)
CE Approval

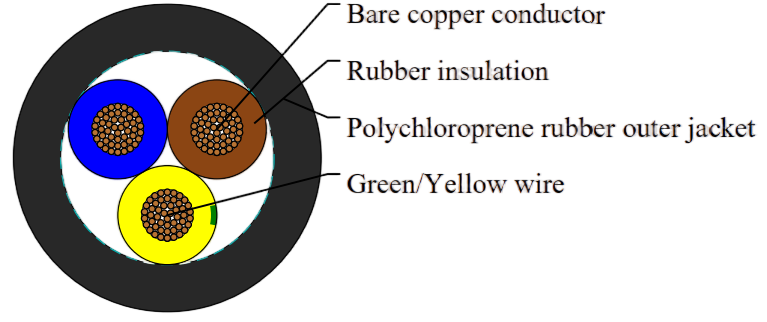

Cable Construction
Fine bare copper strands
Strands to IEC/EN 60228 Class 5
Rubber core insulation
Color code XP C32-321
Polychloroprene rubber (neoprene) jacket
Technical Characteristics
Working voltage : 450/750 volts
Test voltage : 2500 volts
Minimum bending radius : 6 x Ø
Operation temperature range : -25℃ to +60℃
Short circuit temperature : +200℃
Flame retardant : EN 60332-1/NF C 32-070 C2
