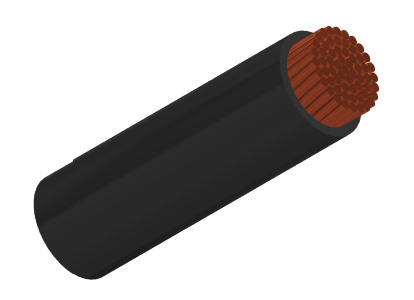

H07V-K
Cable
Application and Description
These are not suitable to be installed for laying in tubes, under and surface mounting of plaster and also in closed installation conduits. These are not allowed to install for direct laying on cable trays, channel or tanks. These types are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against earth.
Standard and Approval
NP2356/3

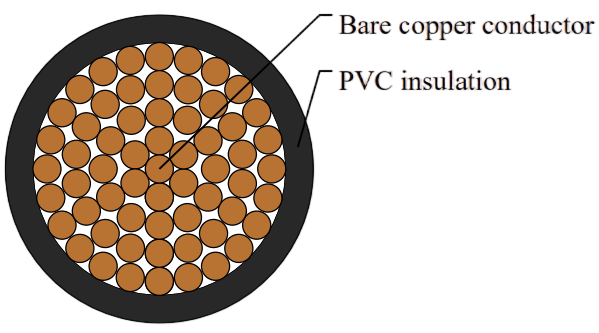

Cable Construction
Fine bare copper strands
Strands to VDE-0295 Class-5, NP 2363 Class-5
Special PVC TI1 core insulation
Color coded to HD 308
Technical Characteristics
Working voltage | 450/750V |
Test voltage | 2500 volts |
Flexing bending radius | 12.5 x Ø |
Static bending radius | 12.5 x Ø |
Flexing Temperature | -5ºC to +70ºC |
Static temperature | -30ºC to +80ºC |
Flame retardant | IEC 60332.1 |
Insulation resistance | 100 MΩ x km |
