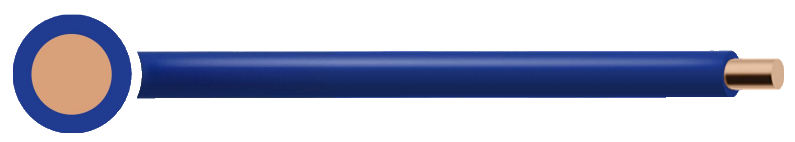

H07Z-U Cable
Single core rubber insulated H05Z and H07Z cable with solid copper conductor for internal installations in dry, clean environments requiring a rated voltage of 300/500V or 450/750V
APPLICATION Single core rubber insulated H05Z and H07Z cable with solid copper conductor for internal installations in dry, clean environments requiring a rated voltage of 300/500V or 450/750V |
CHARACTERISTICS Voltage Rating 450/750V Temperature Rating Maximum conductor operating temperature: 90°C Maximum conductor short-circuit temperature: 250°C Minimum installation temperature: 5°C |
CONSTRUCTION
Conductor
Class 1 solid Copper
Insulation
LSZH (Low Smoke Zero Halogen) Insulation Colour

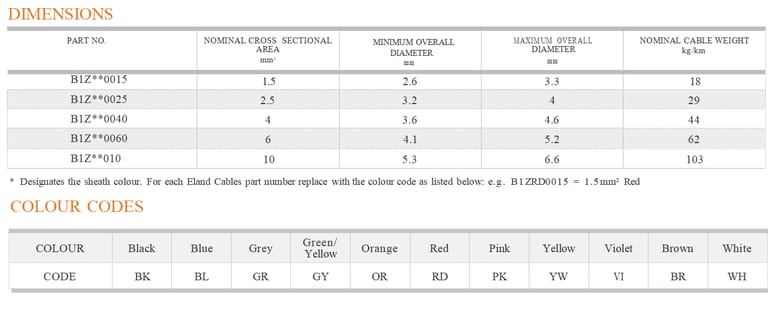

Insulation Colour
● Red Black Blue Orange White Yellow
Green/Yellow Grey Brown Violet Pink
