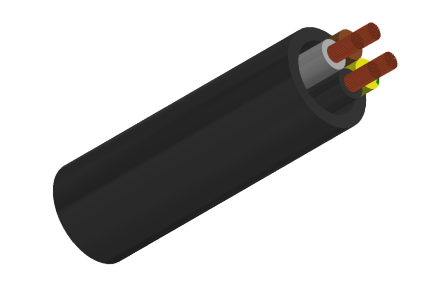

H07ZZ-F
Cable
Application and Description
These LSZH cables are flexible, mainly used for mobile service, suitable for installations where is required low smoke and halogen free fumes under fire conditions.
Suitable for installations where the cable must withstand medium mechanical stress, for machines in industrial and agricultural workshops, for motors and some transportable machines , for wind mills and for agricultural exploitations.
Standard and Approval
CEI 20-19 p.13, IEC 60245-4 , IEC 60754, EN 61034,
CE low voltage directive 73/23/EEC & 93/68/EEC., ROHS compliant

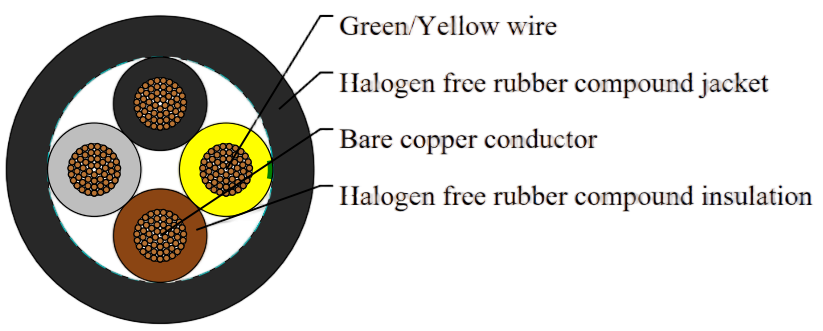

Cable Construction
Technical Characteristics
Fine bare copper strands |
Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
Halogen free rubber compound EI 8 acc. to EN 50363-5 |
Color code to VDE-0293-308 |
Black halogen free rubber compound EM8 jacket |
Flexing voltage | 450/750 volts |
Fixed voltage | 600/1000 volts |
Test voltage | 2500 volts |
Flexing bending radius | 6 x O |
Fixed bending radius | 4.0 x O |
Flexing Temperature | -5oC to +70oC |
Fixed Temperature | -40oC to +70oC |
Short circuit temperature | +250oC |
Flame retardant | IEC 60332.3，C1, NF C 32-070 |
Insulation resistance | 20 MΩ x km |
