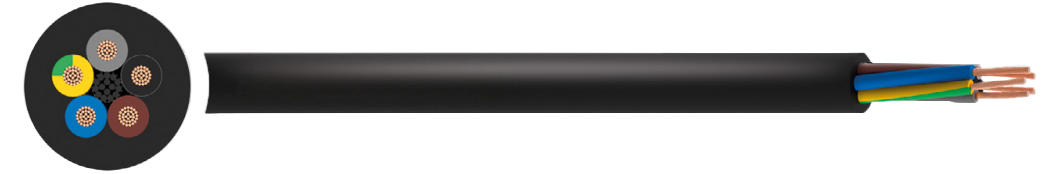

H07ZZ-F EN 50525-3-21 LSZH Rubber Flexible Cable
STANDARDS EN 50525-3-21
$8.00
APPLICATION For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. Examples of use include supplying mobile power units, UPS installations, stage lighting and audio visual equipment. This cable will withstand medium mechanical stresses and is suitable for both installation indoors and outdoors |
CHARACTERISTICS Voltage Rating Uo/U 450/750V Temperature Rating Fixed: -20°C to +90°C Flexed: -5°C to +50°C Minimum Bending Radius Fixed: 4 x overall diameter Flexed: 6 x overall diameter |
CONSTRUCTION
Conductor
Class 5 flexible copper conductor
Insulation
LSZH (Low Smoke Zero Halogen) cross-linked compound
Sheath
LSZH (Low Smoke Zero Halogen) cross-linked compound
Core Identification
1 core: Black
2 core: Blue● Brown
3 core: Green/Yellow● Blue Brown
4 core: Green/Yellow Brown Black Grey
5 core: Green/Yellow Blue Brown Black Grey
6 core and above: Black with White numbers Green/Yellow
Sheath Colour
● Black
