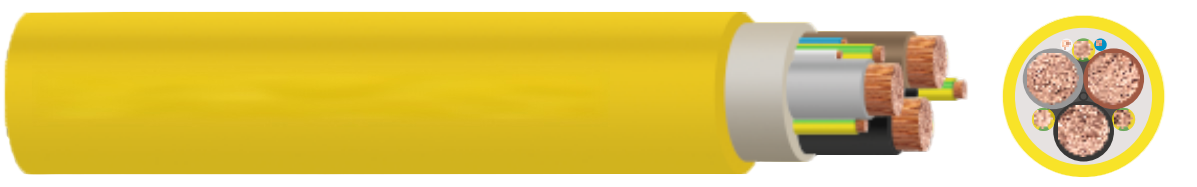

Halogen-Free Reeling Power & Control Cable REELPUR HF – 0.6/1 kV

Flexible, mechanically resistant cable for mobile equipment, cable reels, and conveyor systems in indoor and outdoor environments

$15.00

Chemical parameters:

Resistance to oil:	DIN EN / IEC 60811-404
Behaviour in case of fire:	DIN EN / IEC 60332-1-2
Weather resistance:	unrestricted use indoors, outdoors, resistance to ozone, UV and moisture

Technical data:

Thermal parameters:

Ambient temperature:

fixed installation: -40 °C to 80 °C

flexible operation: -30 °C to 80 °C

Max. permissible conductor temp.: 90 °C

Max. short-circuit temp. at conductor: 250 °C

Mechanical parameters:

Max. tensile load per conductor: 20 N/mm2

Bending radius:

fixed installation: ≥ 6 x outer - Ø

reeling application: ≥ 8 x outer - Ø

Design:

Conductors: bare, annealed copper conductors, multi-stranded class 5

acc. to EN 60228

Insulation: XLPE acc. to IEC 60502-1

Core identification: black, brown, grey, 3 x green-yellow; pilot cores:

white and blue

Core arrangement: three main conductors laid up with protective-earth conductors around strain-relief element with aramide, pilot cores in the outer interstices
