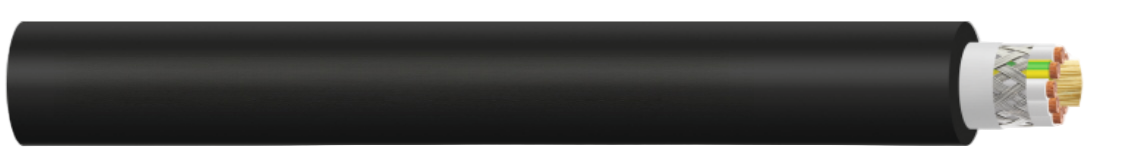

Halogen-Free Screened Power & Control Cable (N)12YRDC11Y-J/O – 0.6/1 kV

EMC-optimized flexible crane cable for trolley systems, drag chains, and outdoor applications with UV, oil, and flame resistance

$20.00

Application:

Halogen–free power and control cable for very high mechanical requirements, frequent bendings, especially for use in festoon, trolley systems, drag chains on moving parts of machines and conveyor facilities. Suitable for dry and wet rooms as well as for oudoor use. Cable suitable for permanent use in water (AD8) up to 50m depth (not permitted for use in drinking water).

Technical data:

Thermal parameters:

Ambient temperature:

fixed installation: -50 °C to 90 °C

flexible operation: -40 °C to 90 °C

Max. permissible conductor temp.: 90 °C

Max. short-circuit temp. at conductor: 250 °C

Mechanical parameters:

Max. tensile load per conductor: 15 N/mm²

Bending radius:

- fixed installation: ≥ 6 x outer - Ø

- free moving: ≥ 7,5 x outer - Ø

Design:
Conductor:	bare copper wires, finely stranded, class 5 acc. to DIN EN/IEC 60228
Insulation:	based on polyester, core identification: acc. to
	DIN 0293-308 up to 5 wires colored, from 6 wires white,
	numbered (with or without green/yellow protective
	conductor)
Core arrangement:	cores stranded in layers around central element (central supporting element - aramid yarns)
Inner sheath:	halogen-free PUR compound; colour; black (only cables with 2 up to 5 cores are manufactured with inner sheath)
Screen:	tinned copper wire braid, coverage ca. 85%
Outer sheath:	halogen-free PUR compound; colour: black, matt, inkjet marking
