Type 245SF Mining Cable – AS/NZS 1802 Ultra-Flexible Trailing Cable, 1.1kV–11kV
Semi-Conductive Screened Cable with Three Earth Cores & Three Extensible Pilots, Designed for Tight Bending Radii in Longwall Shearers and High-Flexibility Trailing Applications
$10.00
Technical Specifications
Parameter | Description |
|---|---|
Cable Type | Semiconductive Screened Mining Cable |
Applicable Standards | AS/NZS 1802 |
Rated Voltage | 1.1/1.1 kV to 11/11 kV |

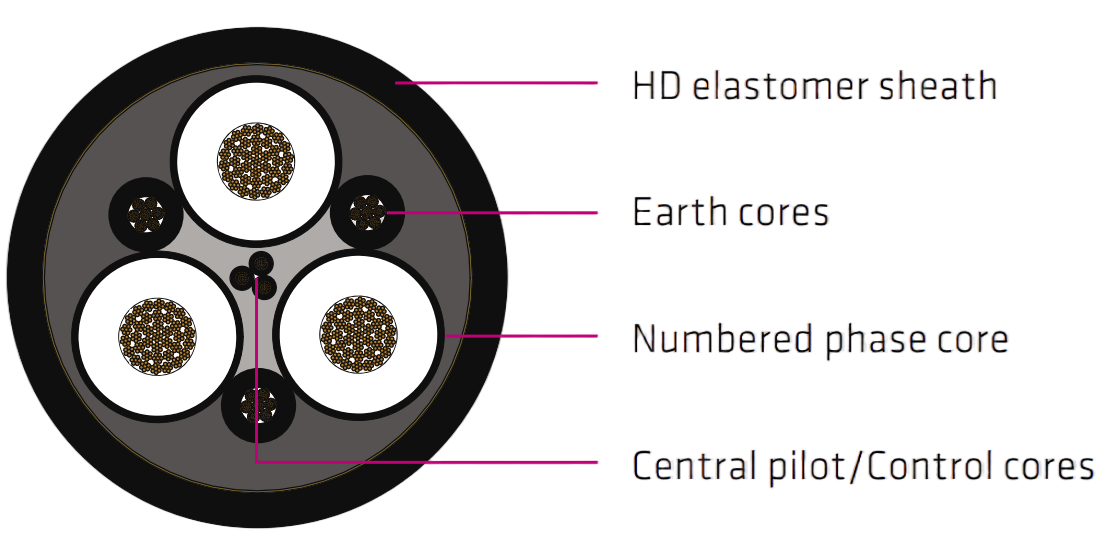

Conductor Material | Tinned copper (three cores, three earths plus three central pilots) |
Insulation | EPR (R-EP-90) |
Insulation Tape | Polyester tape for 1.1/1.1 kV; semiconductive screen for ≥3.3 kV |
Screen | Semiconductive elastomer screen |
Pilot Conductors | Three extensible pilot conductors centrally located |
Earth Conductors | Three semiconductive elastomer-covered flexible earths located in the interstices |
Sheath | Heavy duty HD-85-PCP with open weave reinforcement |
Maximum Operating Temperature | +90 °C |
Minimum Operating Temperature | -25 °C |
Flexibility | Very flexible – designed for tight bending radii and trailing applications |
Chemical Resistance | Very good — withstands frequent chemical exposure |
Mechanical Impact Resistance | Heavy duty |
Water Resistance | Suitable for immersion and temporary coverage |
UV and Weather Resistance | Suitable for direct solar radiation and outdoor exposure |
Maximum DC Resistance | 3 Ω/100 m for all cable cores |

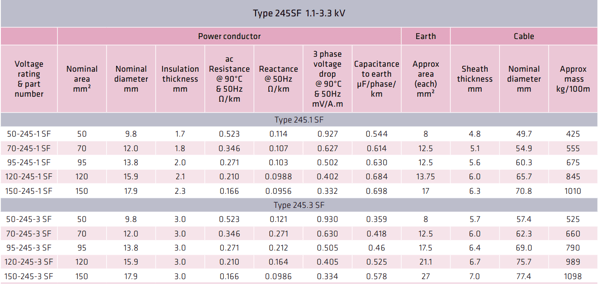

Physical & electrical characteristics
Product Overview
Type 245SF is an ultra-flexible semiconductive screened cable designed to comply with AS/NZS 1802 standards. Engineered specifically for trailing applications in cable chains on longwall shearer equipment, it operates effectively within the tight bending radii typical of such environments. Featuring three earth cores and three extensible pilot conductors, this cable supports advanced modern machine monitoring systems. Ideal for general purpose mining applications requiring maximum flexibility and durability.
Product Features
Ultra Flexible Design: Specially constructed for trailing applications on cable chains fitted to longwall shearer equipment, accommodating tight bends without compromising cable integrity.
Multiple Pilot Conductors: Equipped with three extensible pilot cores for enhanced control and modern machine monitoring requirements.
Robust Construction: Semiconductive elastomer screening combined with heavy-duty HD elastomer sheath and open weave reinforcement ensures protection against mechanical impacts, chemical exposure, water ingress, and UV/weathering.
Wide Application: Suitable for general mining feeder cable needs, especially in demanding trailing applications requiring maximum flexibility.
Fire Retardant: Meets the fire retardant standards mandated by AS/NZS 1802.
Application Areas

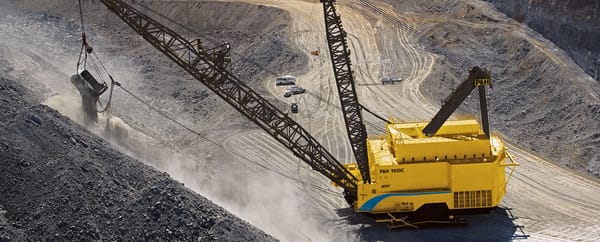

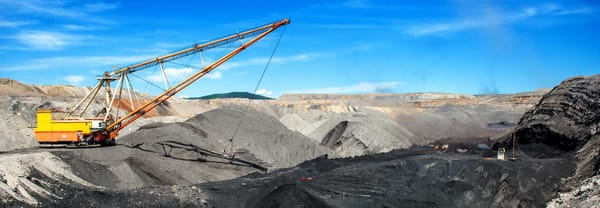

Ideal for trailing cable applications in longwall shearer cable chains, continuous miners, pump feeder cables, and monorail power supply systems requiring flexible, durable, and reliable mining cables.
Installation and Maintenance
Appropriate for installation in free air, ducts, and on mobile mining equipment. Installation should follow AS/NZS guidelines. Regular inspections are recommended to maintain sheath integrity and mechanical protection.
Customization Services
Open weave sheath reinforcement and custom cable lengths can be provided to tailor the cable to specific project requirements.
