Introduction to CORDAFLEX Reeling Cables

The CORDAFLEX cable series represents the pinnacle of modern cable engineering, specifically designed for the most demanding industrial environments across Australia and internationally. These specialised cables are engineered to withstand the rigorous conditions found in reeling systems, festoons, cranes, and material handling equipment where conventional cables simply cannot cope with the constant mechanical stress and environmental challenges.

In Australia's diverse industrial landscape, from the bustling ports of Melbourne and Sydney to the remote mining operations in Western Australia and Queensland, the need for reliable, flexible power cables has never been greater. The CORDAFLEX reeling cable stands out as the preferred choice for engineers and facility managers who require uncompromising performance in their critical infrastructure systems.

The key advantages of CORDAFLEX cables lie in their exceptional flexibility, outstanding durability, and superior mechanical stress resistance. These cables are specifically formulated to handle the repetitive winding and unwinding motions that characterise crane operations, ship-to-shore loaders, and automated material handling systems. Unlike standard power cables that may fail under constant flexing, CORDAFLEX cables maintain their structural integrity and electrical performance throughout millions of cycles.

Product Specification: Type (SMK)-(N)SHTOEU-J/-O

The CORDAFLEX (SMK)-(N)SHTOEU-J/-O cable represents a sophisticated engineering solution designed for the most challenging reeling applications. With a rated voltage of 0.6/1 kV (600/1000V), this cable system provides reliable power transmission for medium-voltage applications commonly found in industrial crane systems and heavy machinery.

The conductor configuration offers flexibility with two variants: the J-type configuration includes an integrated earth conductor for enhanced safety in applications requiring grounding, while the O-type configuration omits the earth conductor for applications where separate grounding arrangements are preferred. This flexibility allows engineers to select the most appropriate configuration for their specific installation requirements.

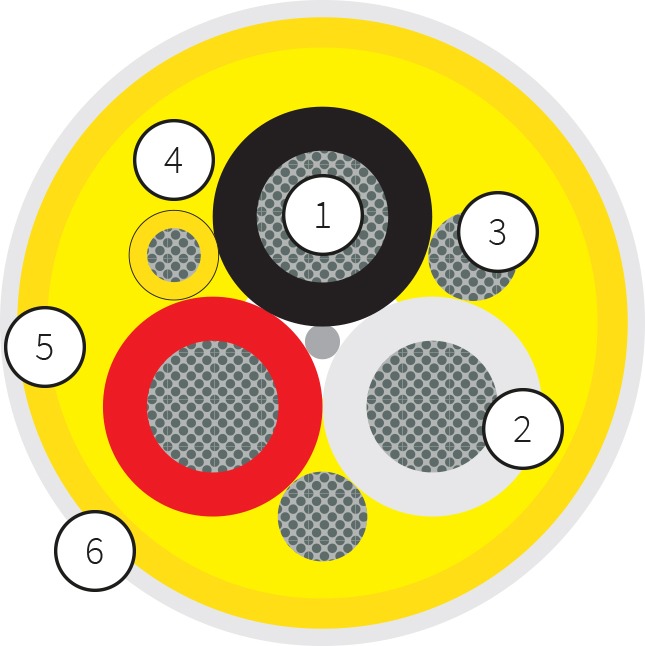

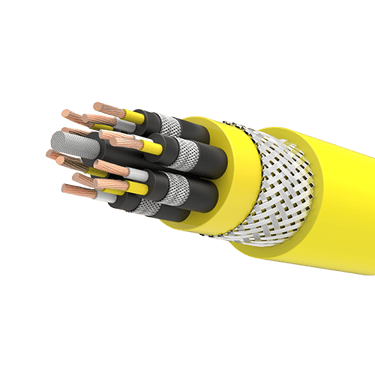

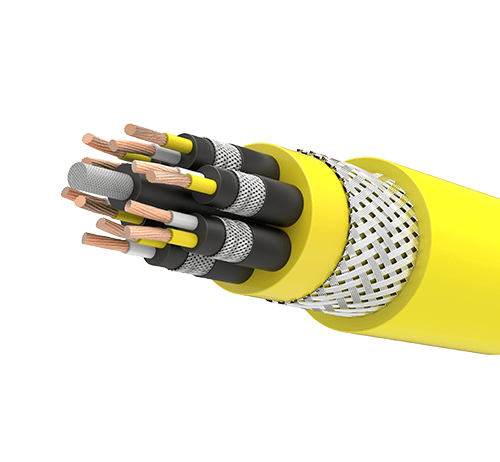

The cable's construction features fine-stranded copper conductors that provide excellent flexibility whilst maintaining superior electrical conductivity. The EPR (Ethylene Propylene Rubber) insulation system offers exceptional resistance to heat, ozone, and chemical exposure, ensuring reliable performance in harsh Australian industrial environments. The heavy-duty outer sheath provides mechanical protection against abrasion, cuts, and impacts that are common in crane and reeling applications.

Operating across a remarkable temperature range from -35°C to +80°C, this cable performs reliably in Australia's varied climatic conditions, from the frigid cold stores in food processing facilities to the extreme heat found in mining operations and steel production plants. The cable's compliance with DIN VDE 0250-814 standards ensures that it meets the stringent European safety and performance requirements that are increasingly adopted in Australian industrial installations.

Key Features and Technical Benefits

The CORDAFLEX (SMK)-(N)SHTOEU cable for festoon and reeling systems delivers exceptional mechanical stress resistance that sets it apart from conventional power cables. The cable's design incorporates specialised construction techniques that enable it to withstand the constant flexing, twisting, and tensile forces encountered in crane operations and automated reeling systems.

UV and ozone resistance are critical features for outdoor applications, particularly in Australia's harsh solar environment. The cable's advanced polymer compounds maintain their flexibility and insulation properties even after prolonged exposure to intense UV radiation and atmospheric ozone, preventing the cracking and degradation that plague inferior cables.

Oil resistance and flame-retardant design make this reeling cable -35°C to +80°C suitable for use in industrial environments where hydraulic fluids, lubricants, and other petroleum products are present. The flame-retardant properties help prevent fire spread in the unlikely event of electrical faults, contributing to overall workplace safety.

The cable's optimisation for frequent winding and unwinding operations is evident in its exceptional fatigue resistance. Unlike standard cables that develop conductor breaks or insulation failures after repeated flexing cycles, the CORDAFLEX design maintains electrical continuity and insulation integrity throughout its operational life.

Enhanced tensile strength characteristics enable the cable to support its own weight in vertical reel operations whilst accommodating the additional mechanical loads imposed by crane movements and wind forces. This capability is particularly important in port crane applications where cables may extend over considerable distances.

Applications in Industrial Environments

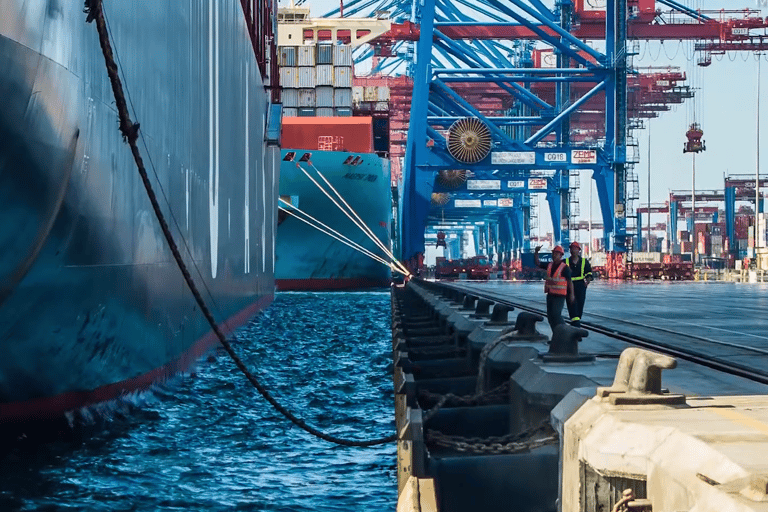

Port cranes represent one of the most demanding applications for reeling cables, where the CORDAFLEX (SMK)-(N)SHTOEU system excels. Ship unloaders and gantry cranes in Australia's major ports including Fremantle, Brisbane, and Newcastle rely on these cables to provide uninterrupted power to their lifting and traversing mechanisms. The cable's resistance to salt spray, UV exposure, and mechanical stress makes it ideal for the harsh marine environment.

Automated reeling systems in mining and construction applications benefit from the cable's robust construction and environmental resistance. In Australia's expansive mining operations, from coal mines in the Hunter Valley to iron ore operations in the Pilbara, these cables provide reliable power transmission for draglines, bucket-wheel excavators, and conveyor systems that operate continuously in dusty, corrosive environments.

Material handling equipment in manufacturing facilities, distribution centres, and logistics hubs throughout Australia relies on VDE 0250-814 compliant crane cable systems for efficient operations. The cable's flexibility enables smooth operation of overhead cranes, gantry systems, and automated storage and retrieval systems that are essential for modern warehouse operations.

The cable's suitability for harsh environments extends to steel mills, aluminium smelters, and chemical processing plants where traditional cables quickly deteriorate under the combined effects of heat, chemical exposure, and mechanical stress. The CORDAFLEX design maintains its performance characteristics even in these extreme conditions.

Compliance and Certification

The VDE 0250-814 standard represents one of the most rigorous certification requirements for reeling cables, establishing comprehensive performance criteria for mechanical, electrical, and environmental characteristics. This standard specifies testing protocols that simulate the actual operating conditions encountered in crane and reeling applications, including millions of flexing cycles, temperature cycling, and exposure to chemicals and UV radiation.

European and international compliance ensures that the CORDAFLEX cable meets or exceeds the performance requirements established by major industrial standards organisations. This compliance provides assurance to Australian engineers and facility managers that the cable will perform reliably in their critical applications whilst meeting insurance and regulatory requirements.

Environmental and operational safety aspects addressed by the VDE 0250-814 standard include flame propagation characteristics, toxic gas emission during fire conditions, and electromagnetic compatibility. These factors are increasingly important in Australian industrial facilities where workplace safety regulations and environmental protection requirements continue to evolve.

The certification process involves extensive testing of cable samples under controlled laboratory conditions that replicate real-world operating environments. This testing provides confidence that the cable will maintain its performance characteristics throughout its expected service life, reducing maintenance costs and improving operational reliability.

Comparison with Similar Reeling Cables

When comparing CORDAFLEX vs PROTOLON and TROMMELFLEX alternatives, several key differences emerge that favour the CORDAFLEX design for Australian applications. The CORDAFLEX cable's advanced EPR insulation system provides superior heat resistance compared to PVC-based alternatives, enabling operation at higher conductor temperatures without insulation degradation.

The mechanical strength characteristics of CORDAFLEX cables exceed those of many competing products, particularly in terms of tensile strength and fatigue resistance. This superior mechanical performance translates to longer service life and reduced maintenance requirements in demanding crane applications.

Use-case suitability analysis reveals that CORDAFLEX cables are particularly well-suited for port crane environments where the combination of salt spray, UV exposure, and mechanical stress creates challenging operating conditions. The cable's resistance to these environmental factors provides significant advantages over cables designed primarily for indoor applications.

Cost-effectiveness considerations favour CORDAFLEX cables when total cost of ownership is evaluated, including initial purchase price, installation costs, maintenance requirements, and replacement frequency. The extended service life and reduced maintenance needs of CORDAFLEX cables often result in lower overall costs compared to less expensive alternatives that require more frequent replacement.

Why Choose CORDAFLEX (SMK)-(N)SHTOEU-J/-O Cables?

Long-term reliability stands as the primary advantage of CORDAFLEX cables, with proven performance records in some of the world's most demanding industrial applications. The cable's design incorporates multiple redundant protection systems that ensure continued operation even when individual components experience wear or damage.

Global supply compatibility ensures that CORDAFLEX cables can be readily sourced and supported throughout Australia, with established distribution networks and technical support capabilities. This availability reduces procurement lead times and ensures that replacement cables can be obtained quickly when needed for critical applications.

Customisation options accommodate the diverse requirements of different reeling equipment manufacturers and specific application needs. These options include variations in conductor configuration, insulation thickness, and outer sheath characteristics that can be tailored to meet specific performance requirements or environmental conditions.

The cable's proven track record in Australian industrial applications provides confidence to engineers and facility managers who require reliable performance from their critical infrastructure systems. This experience base enables more accurate performance predictions and maintenance scheduling, contributing to improved operational efficiency.

FAQs About CORDAFLEX Reeling Cables

Can this cable be used in vertical drum applications? Yes, the CORDAFLEX (SMK)-(N)SHTOEU cable is specifically designed for vertical drum applications, with enhanced tensile strength characteristics that enable it to support its own weight plus additional mechanical loads. The cable's construction includes reinforcement elements that prevent stretching and maintain electrical continuity during vertical operation.

Is the outer sheath suitable for saltwater environments? The outer sheath material is formulated to resist salt spray and humid marine conditions commonly encountered in port and offshore applications. The cable maintains its flexibility and protective characteristics even after prolonged exposure to saltwater environments, making it ideal for ship-to-shore cranes and marine terminals.

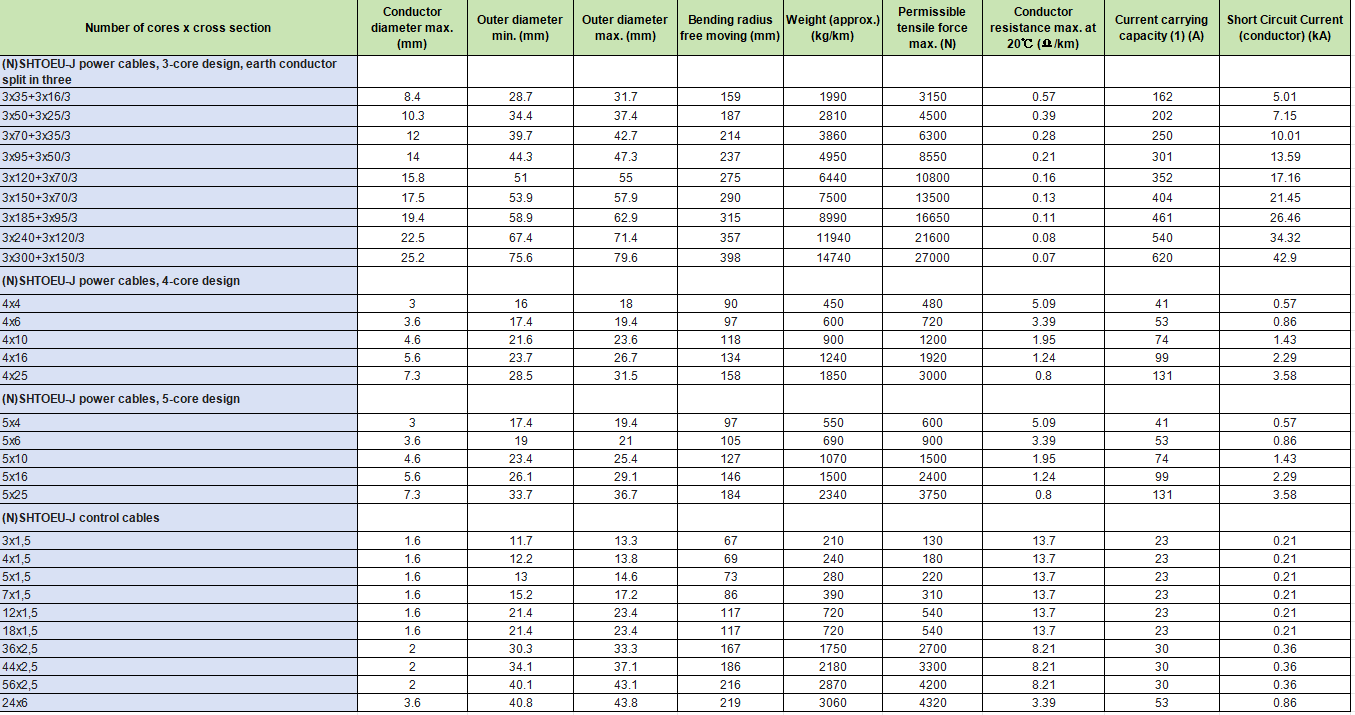

What's the minimum bending radius? The minimum bending radius varies with cable cross-section but typically ranges from 90mm for smaller cables to 398mm for the largest configurations. These values are established to prevent damage to conductors and insulation during installation and operation, ensuring reliable long-term performance.

Are there halogen-free variants? Yes, halogen-free versions are available for applications where low-smoke, zero-halogen characteristics are required for safety or environmental reasons. These variants maintain the same mechanical and electrical performance characteristics whilst providing enhanced safety in enclosed spaces or environmentally sensitive areas.

Can it be used in mobile mining machinery? The cable's robust construction and wide temperature range make it suitable for mobile mining equipment, including draglines, shovels, and conveyor systems. The cable's resistance to dust, moisture, and mechanical impact provides reliable performance in the challenging conditions typical of mining operations.

Conclusion

The CORDAFLEX (SMK)-(N)SHTOEU-J/-O reeling cable system represents a significant advancement in power cable technology, offering unmatched performance for Australia's most demanding industrial applications. Its technical strengths, including exceptional flexibility, environmental resistance, and mechanical durability, position it as the preferred choice for engineers who cannot compromise on reliability.

The ideal deployment conditions for these cables encompass port cranes, mining operations, steel mills, and any industrial facility where reliable power transmission under extreme conditions is essential. The cable's proven performance record and comprehensive certification provide assurance that it will deliver consistent results throughout its service life.

For detailed technical datasheets, customisation options, or specific application guidance, experienced cable engineers are available to provide comprehensive support for your critical infrastructure requirements. The investment in CORDAFLEX technology delivers long-term value through reduced maintenance costs, improved operational reliability, and enhanced safety performance that meets Australia's stringent industrial standards.
