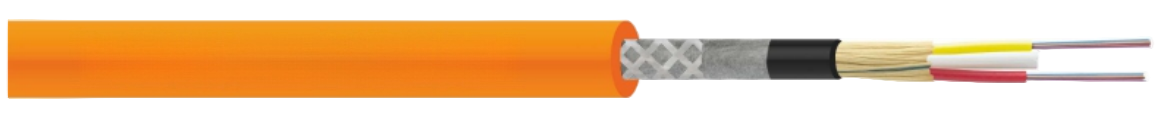

Heavy-Duty FESTOON FO Optical Cable 2 x 12 …/125
Flexible rubber cable for optical signal and power transmission in festoon systems with heavy-duty trolleys
$15.00
Technical data: |
|
Thermal parameters: Permissible ambient temperature: - transportation / storage: -40 oC / 80 oC - free moving / festoon application: -30 oC / 80 oC Mechanical parameters: |
Bending radius: ≥ 125 mm Max. continous load in operation: 2000 N Travelling speed of motor driven festoon cable trolleys: ≤ 300 m/min Chemical parameters: Resistance to oil: IEC 60811-404 Behaviour in case of fire: IEC 60332-1-2 Weather resistance: unrestricted use indoors, outdoors, resistance to ozone, UV and moisture |
Design: |
|
Optical fiber element: E9 design: tube 1 - yellow: 12 fiber E9/125 tube 2 - red: 12 fiber E9/125 G62,5 design: tube 1 - blue: 12 fiber G62,5/125 tube 2 - red: 12 fiber G62,5/125 G50 design: tube 1 - green: 12 fiber G50/125 tube 2 - red: 12 fiber G50/125 |
combination of fiber types (e.g.: 12G50 + 12G62,5) on request Synthetic strain relief elements Jacket: thermoplastic elastomer TPE Separating tapes Reinforcement: braid made of high tec multifilament threads, non-hygroscopic and low shrinkage Outer sheath: heavy duty rubber compound, quality 5GM5 acc. to DIN VDE 0207-21, colour: orange / black, inkjet marking, |
Application:
On festoon systems with e.g. heavy duty trolleys carry flat and round cables for transmission of electrical energy and optic signals. Travelling speed of motor driven festoon cable trolleys: ≤ 300 m/min.
