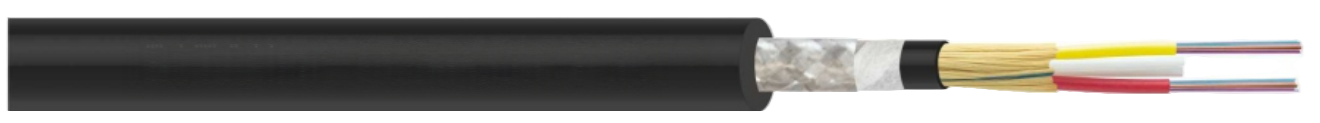

Heavy-Duty FESTOON PUR FO Optical Cable 2 x 12 …/125
Flexible PUR cable for optical and power transmission in festoon systems with heavy-duty trolleys
$1.50
Technical data: |
|
Thermal parameters: Permissible ambient temperature: - transportation / storage: -40 oC / 80 oC - free moving / festoon application: -30 oC / 80 oC Mechanical parameters: |
Bending radius: ≥ 10 x cable-Ø Max. continous load in operation: 1000 N Travelling speed of motor driven festoon cable trollyes: ≤ 240 m/min Chemical parameters: Resistance to oil: IEC 60811-404 Behaviour in case of fire: IEC 60332-1-2 Weather resistance: unrestricted use indoors, outdoors, resistance toozone, UV and moisture |
Design: |
|
Optical fiber element: E9 design: tube 1 - yellow: 12 fiber E9/125 tube 2 - red: 12 fiber E9/125 G62,5 design: tube 1 - blue: 12 fiber G62,5/125 tube 2 - red: 12 fiber G62,5/125 G50 design: tube 1 - green: 12 fiber G50/125 tube 2 - red: 12 fiber G50/125 |
Jacket: thermoplastic elastomer TPE Separating tapes Reinforcement: braid made of high tec multifilament threads, non-hygroscopic and low shrinkage Outer sheath: thermoplastic elastomer PUR reinforced with dielectric yarns, halogen-free; colour: black matt, inkjet marking |
Application:
On festoon systems with e.g. heavy duty trolleys carry flat and round cables for transmission of electrical energy and optical signals. Travelling speed of motor driven festoon cable trolleys: ≤ 240 m/min.
