Heavy-Duty (N)SHTOEU-J Waterproof Reeling Cable for Grab & Floating Dredgers – High Tensile Load & Torsion Resistance

Introduction

Marine dredging operations present some of the most challenging environments for electrical infrastructure. From the corrosive effects of saltwater to the extreme mechanical stresses of heavy-duty grab operations, marine control cables must withstand conditions that would destroy conventional electrical systems. The demands placed on reeling cables in these applications extend far beyond standard industrial requirements, necessitating specialised engineering solutions that can deliver consistent performance under extreme loads.

The Type (N)SHTOEU-J waterproof reeling control and data cable represents a significant advancement in marine cable technology, specifically engineered for the demanding requirements of grab and floating dredgers. This high tensile reeling cable combines advanced materials science with robust mechanical design to deliver uncompromising performance in the harshest marine environments.

Industries utilising this advanced marine control cable include port authorities, dredging contractors, marine construction companies, and offshore engineering firms. The cable's superior design makes it particularly valuable for operations involving continuous vertical reeling under high loads, where conventional cables would fail prematurely due to fatigue or environmental degradation.

Application Scenarios in Marine Environments

Grab Dredgers: Precision Under Pressure

Grab dredgers represent one of the most mechanically demanding applications for marine electrical systems. These vessels require reeling cables that can support the immense loads generated during grab operations whilst maintaining electrical integrity throughout thousands of operational cycles. The reeling cable for grab dredger applications must handle rapid vertical movements, often at speeds approaching 240 metres per minute, whilst simultaneously managing the torsional stresses created by the grab's rotational movements.

The (N)SHTOEU-J cable excels in these applications through its embedded central strain relief system, which distributes mechanical loads evenly throughout the cable structure. This design prevents the concentration of stress at vulnerable points, significantly extending operational life even under the most demanding grab operations.

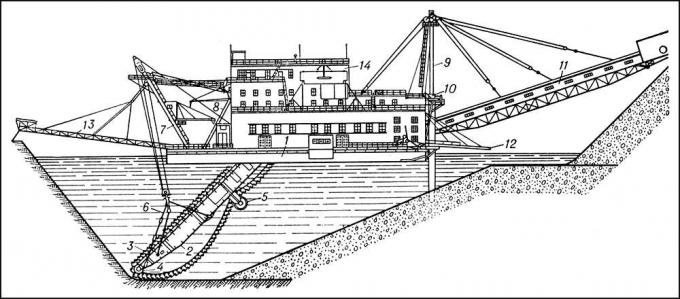

Floating Dredgers: Flexibility in Motion

Floating dredgers present unique challenges for electrical systems, as they must accommodate the constant motion of the vessel whilst maintaining reliable power and data transmission. The reeling cable for floating dredger applications must provide exceptional flexibility whilst resisting water ingress and the corrosive marine environment.

The waterproof construction of the (N)SHTOEU-J cable makes it ideally suited for these applications, with proven performance in temporary submersion up to 50 metres depth. The cable's robust double sheath design ensures that water ingress remains impossible even during the most challenging sea conditions, protecting sensitive conductors and maintaining system reliability.

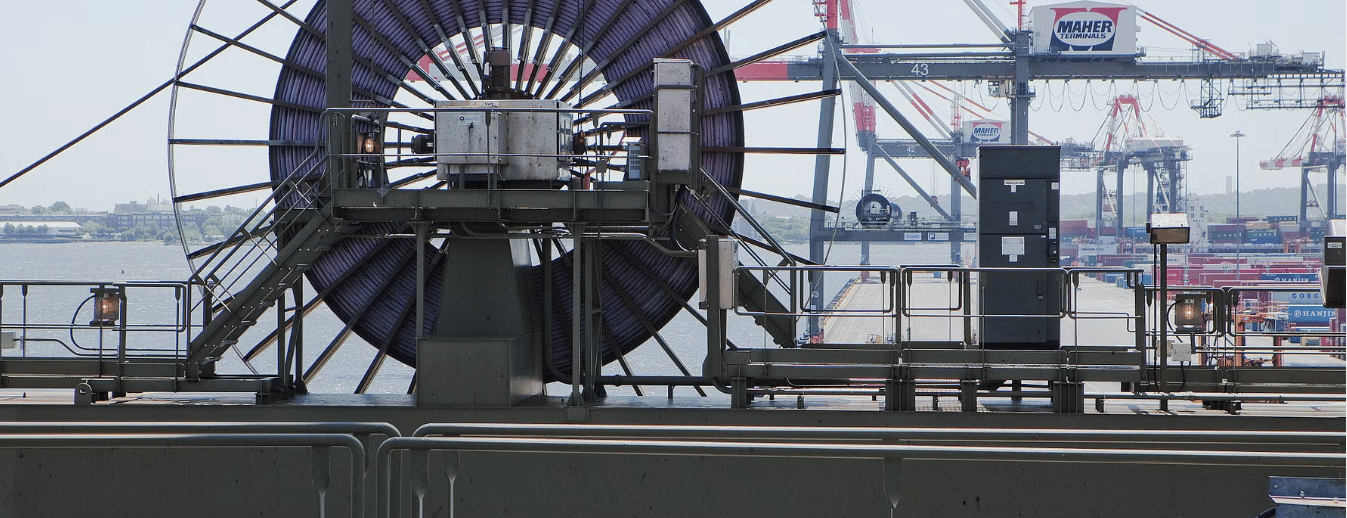

Motorized Cable Reels: High-Speed Performance

Modern marine operations increasingly rely on motorized reel marine cable systems that can deploy and retrieve cables at high speeds whilst managing significant torsional loads. The (N)SHTOEU-J cable's advanced braid design between inner and outer sheaths specifically addresses these high-speed, high-acceleration scenarios, providing the torsional stability necessary for reliable automated operations.

The cable's ability to handle torsional stress of ±50 degrees per metre ensures smooth operation even during rapid deployment and retrieval cycles, making it the preferred choice for automated dredging systems where downtime is not acceptable.

Core Strengths & Performance Features

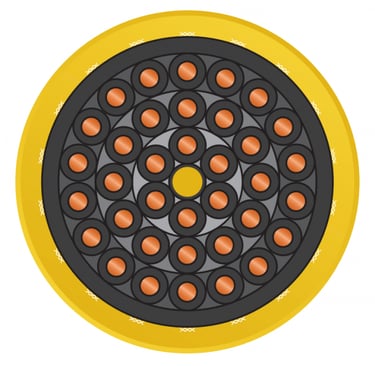

Embedded Load-Bearing Support

The foundation of the (N)SHTOEU-J cable's exceptional performance lies in its innovative central strain relief system. This embedded load-bearing support element distributes tensile forces throughout the cable structure, enabling it to handle loads up to 30 N/mm² without compromising electrical performance or mechanical integrity.

This central strain relief core represents a significant advancement over traditional cable designs, where tensile loads are typically managed through external reinforcement. By embedding the load-bearing element within the cable structure, the (N)SHTOEU-J achieves superior load distribution whilst maintaining the flexibility essential for reeling applications.

Double Sheath & Braid Design

The cable's compact double sheath design incorporates a specialised braid between inner and outer sheaths, creating a structure capable of withstanding extreme torsional stresses. This high tensile cable configuration enables vertical reeling operations at speeds up to 240 metres per minute for standard applications, with data cable configurations supporting speeds up to 300 metres per minute.

The embedded braid provides crucial torsional stability, preventing the cable twist that can lead to premature failure in high-speed reeling applications. This torsion-proof cable design ensures consistent performance throughout the cable's operational life, even under the most demanding marine conditions.

Sandwich Sheath for Wear Resistance

The outer sheath utilises a specialised wear-resistant rubber compound that provides exceptional durability in abrasive marine environments. This wear-resistant dredging cable construction incorporates advanced polymer chemistry to deliver superior resistance to mechanical wear whilst maintaining flexibility and electrical integrity.

The sandwich sheath design combines multiple layers of protection, with each layer optimised for specific environmental challenges. This multi-layered approach ensures comprehensive protection against the diverse threats present in marine dredging operations, from abrasive sediments to corrosive chemicals.

Waterproof Capabilities

The (N)SHTOEU-J cable's waterproof design enables reliable operation in the most challenging marine environments. Certified for temporary submersion up to 50 metres depth, this waterproof marine reeling cable provides complete protection against water ingress whilst maintaining full electrical performance.

The cable's underwater control cable capabilities extend beyond simple water resistance to include comprehensive protection against the corrosive effects of saltwater. The specialised sheath compounds resist chemical degradation, ensuring long-term reliability even in the harsh marine environment.

For applications requiring permanent underwater installation, the manufacturer provides consultation services to ensure optimal performance in specific environmental conditions. This dredging cable with water resistance incorporates advanced sealing technologies that maintain integrity even under significant hydrostatic pressure.

The cable's resistance extends to humidity, ozone, ultraviolet radiation, and various oils and chemicals commonly encountered in marine operations. This comprehensive environmental protection ensures reliable performance across the full spectrum of marine applications.

Electrical & Thermal Specifications

The electrical performance of the (N)SHTOEU-J cable meets the demanding requirements of modern marine systems. With a rated voltage of 600/1000V AC and 900/1800V DC, this 1000V marine cable provides the power handling capability necessary for heavy-duty dredging equipment.

The cable's test voltage rating of 2.5kV ensures reliable performance with adequate safety margins, whilst the maximum permitted operating voltages of 700/1200V AC and 900/1800V DC provide flexibility for various system configurations.

Thermal performance is equally impressive, with the waterproof data cable maintaining full functionality across a temperature range from -35°C to +80°C during flexing operations, and -50°C to +80°C when installed in fixed applications. The conductor can operate continuously at temperatures up to 90°C, with short-circuit capability to 200°C.

This high-temp rubber cable construction utilises advanced EPR (ethylene-propylene-rubber) insulation that maintains its electrical and mechanical properties across the full temperature range. The thermal stability ensures consistent performance regardless of seasonal variations or operational heating.

Mechanical Characteristics

The mechanical design of the (N)SHTOEU-J cable optimises performance for demanding reeling applications. Minimum bending radii are carefully specified to ensure reliable operation: 6 times the cable diameter for reeling applications, 7.5 times for roller assemblies, and 20 times for S-type forced guide pulleys.

The cable's short length of lay design enhances rigidity whilst maintaining the flexibility essential for reeling operations. This configuration provides optimal balance between mechanical stability and operational flexibility, ensuring smooth cable management even during rapid deployment and retrieval cycles.

The minimum spacing requirements between directional changes ensure that the cable can accommodate complex routing without stress concentration. These mechanical characteristics make the cable suitable for the most demanding marine installations, where space constraints and operational requirements create challenging routing scenarios.

Material Composition & Safety

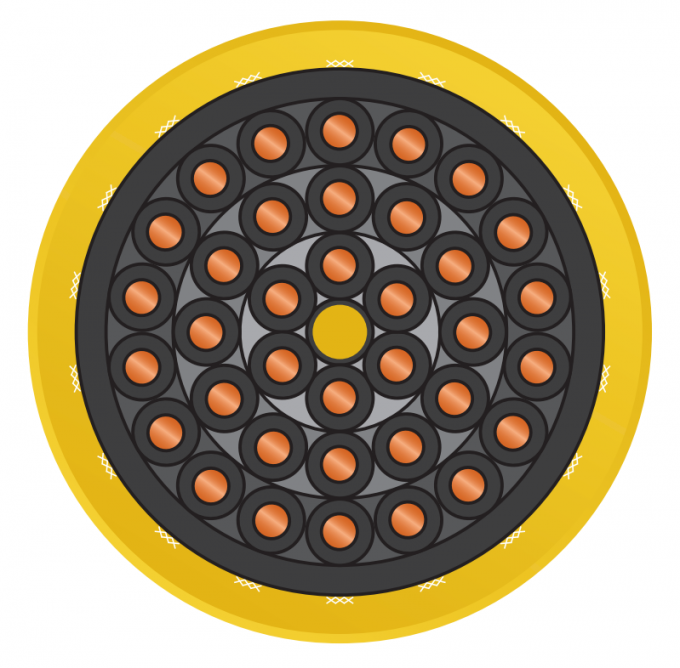

The (N)SHTOEU-J cable incorporates advanced materials specifically selected for marine applications. The flexible copper conductors utilise Class 5 or FS construction for optimal flexibility and conductivity, whilst the EPR insulation provides superior electrical performance and environmental resistance.

The inner sheath utilises PCP (polychloroprene) compounds that provide excellent resistance to marine environments, whilst the supportive braid incorporates special plastic fibres optimised for torsional stress management. The outer sheath combines wear-resistant PCP compounds with advanced additives for enhanced durability.

This rubber-insulated marine cable meets stringent safety requirements, including low flammability according to DIN VDE 0482 part 265-2-1 and IEC 60332-1 standards. The flame-retardant reeling cable construction ensures safe operation even in emergency situations.

The cable is manufactured without LBS (lead-bearing substances) and silicone, meeting modern environmental and safety standards. This chemically resistant cable provides comprehensive protection against sulfur, urea, oils, UV radiation, and ozone, ensuring long-term reliability in diverse marine environments.

Why Choose Type (N)SHTOEU-J for Dredging Systems?

The Type (N)SHTOEU-J cable represents the optimal choice for dredging operations due to its unique combination of mechanical strength, environmental resistance, and electrical performance. Port operators and dredging companies benefit from reduced downtime, lower maintenance costs, and improved operational reliability.

The cable's ability to withstand dynamic motion, heavy loads, and harsh environmental conditions makes it ideally suited for the demanding requirements of modern dredging operations. Compliance with IEC and VDE standards ensures compatibility with international equipment and safety requirements.

The comprehensive design approach addresses all aspects of marine cable performance, from the initial conductor design through to the final protective sheath. This holistic engineering approach delivers a cable system that exceeds the performance of conventional marine cables whilst providing the reliability essential for critical dredging operations.

Frequently Asked Questions

Is this cable suitable for underwater reeling? Yes, the (N)SHTOEU-J cable is designed for temporary submersion up to 50 metres depth. For permanent underwater installations, consultation with the manufacturer is recommended to ensure optimal configuration for specific environmental conditions.

Can it operate in freezing temperatures? The cable maintains full flexibility and electrical performance down to -35°C during flexing operations and -50°C in fixed installations. For applications below -35°C, specific consultation is available to ensure optimal performance.

What kind of reel systems are compatible? The cable is designed for motorised cable reels and can accommodate vertical reeling speeds up to 240 m/min for standard applications and 300 m/min for data cables. The robust construction is compatible with various reel systems, from simple drum reels to sophisticated automated deployment systems.

Conclusion & Contact

The Type (N)SHTOEU-J waterproof reeling cable represents a significant advancement in marine cable technology, specifically engineered to meet the extreme demands of grab and floating dredger applications. Its combination of high tensile strength, torsional resistance, and comprehensive environmental protection makes it the ideal choice for critical marine operations.

The cable's advanced design features, including embedded strain relief, double sheath construction, and superior material composition, ensure reliable performance in the most challenging marine environments. From high-speed vertical reeling to extended underwater exposure, the (N)SHTOEU-J cable delivers the performance and reliability that modern dredging operations require.

For technical consultation, specific application guidance, or ordering information, contact our marine cable specialists who can provide detailed recommendations based on your specific operational requirements and environmental conditions.
