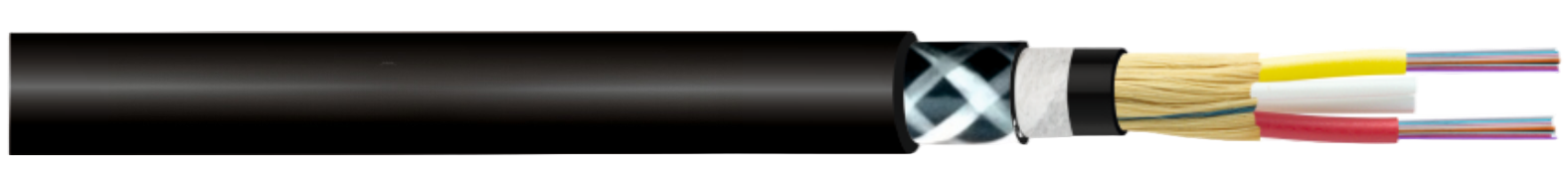

Heavy-Duty PUR Data Cable CRANE PUR FO 2 x 12 …/125
Flexible optical cable for long-distance communication on mobile material handling and reeling systems
$1.00
Technical data:
Thermal parameters:
Permissible ambient temperature:
- transportation / storage: -40 oC / 80 oC
- free moving / festoon application: -30 oC / 80 oC Mechanical parameters:
Bending radius: ≥ 15 x cable - Ø mm*)
Max. dynamic tensile load: 2000 N
Reeling speed: ≤ 120 m/min Chemical parameters:
Resistance to oil: IEC 60811-404
Behaviour in case of fire: IEC 60332-1-2
Weather resistance:
unrestricted use indoors, outdoors, resistance to ozone, UV and moisture
Optical fiber element:
E9 design: tube 1 - yellow: 12 fiber E9/125
tube 2 - red: 12 fiber E9/125
G62,5 design: tube 1 - blue: 12 fiber G62,5/125
tube 2 - red: 12 fiber G62,5/125
G50 design: tube 1 - green: 12 fiber G50/125
tube 2 - red: 12 fiber G50/125
combination of fiber types (e.g.: 12G50 + 12G62,5) on request Synthetic strain relief elements
Jacket: thermoplastic elastomer TPE
Separating tapes
Inner sheath: thermoplastic elastomer PUR
Reinforcement: braid made of high tec multifilament threads, non-hygroscopic and low shrinkage
Outer sheath: thermoplastic elastomer PUR reinforced with dielectric yarns,halogen-free; colour: black matt, inkjet marking
Application:
On reeling systems for long distance communication network (LDN) e.g. optical PROFIBUS networks with special application requirements on mobile material handling equipment, small motor driven reelsand spring driven reels.
