Heavy-Duty PUR-HF Festoon Control Cable for Trolley Systems – Flexible, Oil-Resistant, Halogen-Free Power Solution

In the demanding world of industrial automation, where machinery operates continuously under extreme conditions, the reliability of electrical connections can make or break operational efficiency. Festoon systems, which provide power and control signals to moving equipment, represent one of the most challenging applications for cable technology. These systems require cables that can endure millions of flex cycles, resist environmental hazards, and maintain electrical integrity throughout their operational life.

What Makes Festoon Systems Demanding?

Festoon systems serve as the electrical lifeline for mobile industrial equipment, delivering power and control signals to cranes, conveyors, trolleys, and other moving machinery components. The importance of reliable cables in festoon systems cannot be overstated, as cable failure can result in costly downtime, safety hazards, and production losses across entire manufacturing lines.

Typical industrial applications span a broad spectrum of demanding environments. Overhead cranes in steel mills must navigate extreme temperatures and corrosive atmospheres whilst maintaining precise load positioning. Conveyor systems in mining operations face constant vibration, dust exposure, and mechanical stress. Automated trolley systems in warehouses require cables that can withstand millions of bending cycles whilst maintaining signal integrity for sophisticated control systems.

The unique challenges faced by festoon cables include frequent bending cycles that can exceed 10 million operations over the cable's lifetime, dynamic stress from acceleration and deceleration forces, exposure to oils and chemicals, temperature fluctuations ranging from arctic cold to industrial heat, and the need for consistent electrical performance despite continuous mechanical stress. These demanding conditions require specialised cable designs that go far beyond standard power cables.

Modern industrial facilities increasingly demand cables that can operate reliably in harsh outdoor environments, withstand exposure to industrial solvents and hydraulic fluids, maintain flexibility in extreme temperatures, and comply with stringent safety regulations for fire resistance and environmental protection. The complexity of these requirements has driven the development of advanced cable technologies specifically engineered for mobile power applications.

Product Overview – PUR-HF Festoon Control Cable

The PUR-HF festoon control cable represents a sophisticated engineering solution designed specifically for the most demanding mobile power applications. The designation "PUR-HF" indicates a polyurethane (PUR) outer sheath that is halogen-free (HF), combining exceptional mechanical properties with enhanced fire safety characteristics.

This cable system excels in both power and control transmission applications, capable of handling voltages up to 0.6/1 kV whilst maintaining precise signal integrity for control circuits. The design accommodates a wide range of conductor configurations, from single-core power cables ranging from 16mm² to 240mm² cross-sections, to multi-core control variants with up to 30 conductors of 1.5mm² each.

The cable demonstrates remarkable versatility in environmental compatibility, performing reliably in indoor and outdoor installations across dry, humid, and wet conditions. Optional variants can even operate continuously submerged in non-drinking water up to 50 metres depth, making them suitable for marine applications and water treatment facilities.

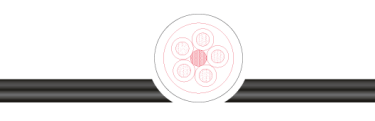

The construction utilises high-quality copper stranded conductors manufactured to Class 5 flexibility standards according to DIN VDE 0295 and IEC 60228. Core identification follows DIN 0293-308 standards, with coloured cores up to 5 conductors and numbered white cores for larger configurations. The cores are stranded in layers around a central element, providing optimal flexibility and mechanical protection.

Key Features of PUR-HF Cable

The PUR-HF cable incorporates several critical features that distinguish it from conventional industrial cables. The highly flexible construction utilises Class 5 copper conductors, providing maximum flexibility whilst maintaining excellent electrical conductivity. The polyester-based core insulation offers superior dielectric properties and mechanical resilience under continuous flexing conditions.

Manufacturing quality extends to being completely free from silicone and lacquer-damaging substances (LBS), ensuring compatibility with painting processes and sensitive electronic equipment. This characteristic proves particularly valuable in automotive manufacturing and electronics assembly operations where contamination control is paramount for quality assurance.

The halogen-free formulation addresses critical fire safety requirements, eliminating the production of toxic and corrosive gases during combustion. This feature aligns with modern building codes and industrial safety standards, particularly important in enclosed spaces and public buildings where evacuation time is crucial and environmental protection is mandatory.

For specialised marine and industrial washing applications, optional water immersion variants can operate continuously submerged up to 50 metres in non-drinking water environments. This capability opens applications in offshore platforms, water treatment facilities, marine construction equipment, and underwater industrial operations.

The black polyurethane outer sheath provides exceptional resistance to abrasion, cutting, and environmental contaminants. The sheath includes permanent marking for easy identification and traceability throughout the installation and maintenance lifecycle.

Compliance credentials include RoHS conformity for environmental responsibility and adherence to the Low-Voltage Directive 2014/35/EU with CE marking, ensuring regulatory acceptance across European markets and beyond. Custom specifications for dimensions, cross-sections, core colours, and sheath colours are available upon request to meet specific application requirements.

Typical Use Cases and Industrial Applications

Cable trolley systems in automation lines represent one of the most common applications for PUR-HF festoon cables. These systems power automated guided vehicles (AGVs), robotic assembly stations, and material handling equipment that traverse extensive factory floors. The cable's ability to withstand constant flexing whilst maintaining power delivery ensures uninterrupted production flows in automotive assembly, electronics manufacturing, and pharmaceutical production facilities.

Drag chains on machine tools and production equipment demand cables that can endure repetitive bending cycles whilst protecting delicate control signals. CNC machining centres, laser cutting systems, and automated assembly lines rely on PUR-HF cables to maintain precision positioning and process control. The cable's resistance to coolants and cutting fluids proves invaluable in metalworking environments where contamination from industrial lubricants is constant.

Conveyor and material handling systems across industries from mining to logistics depend on robust power transmission for continuous operation. Belt conveyors, bucket elevators, sorting systems, and baggage handling installations require cables that can handle both power transmission and control signalling whilst resisting the mechanical stress of constant motion and environmental contaminants.

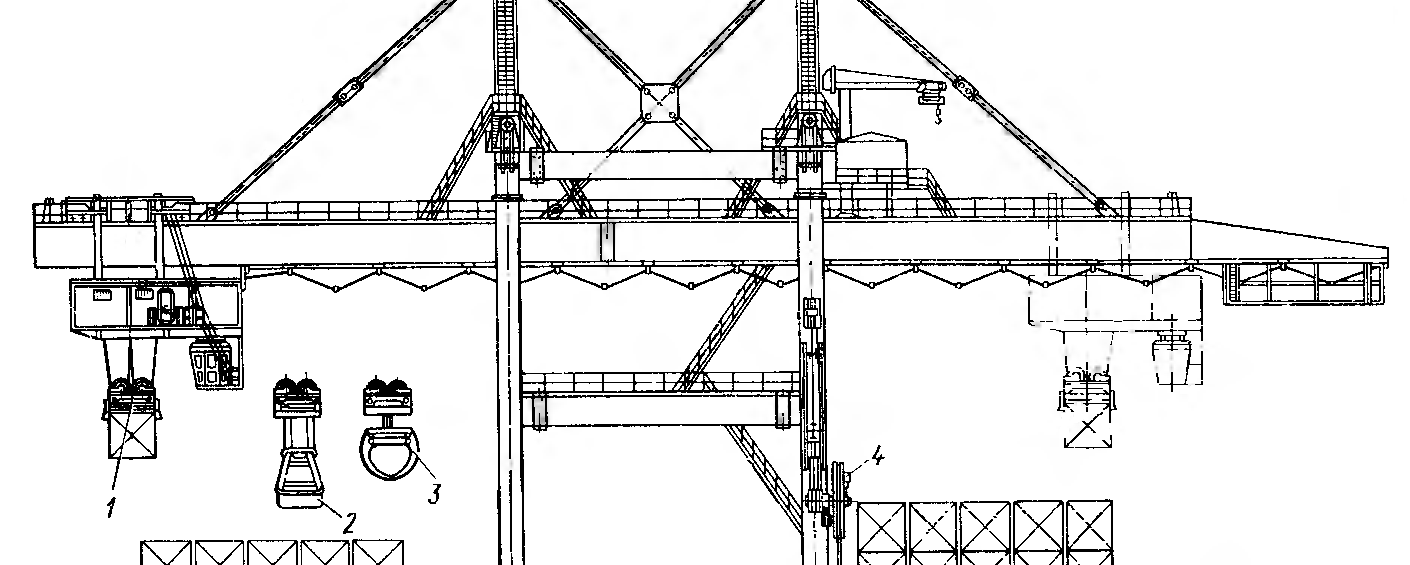

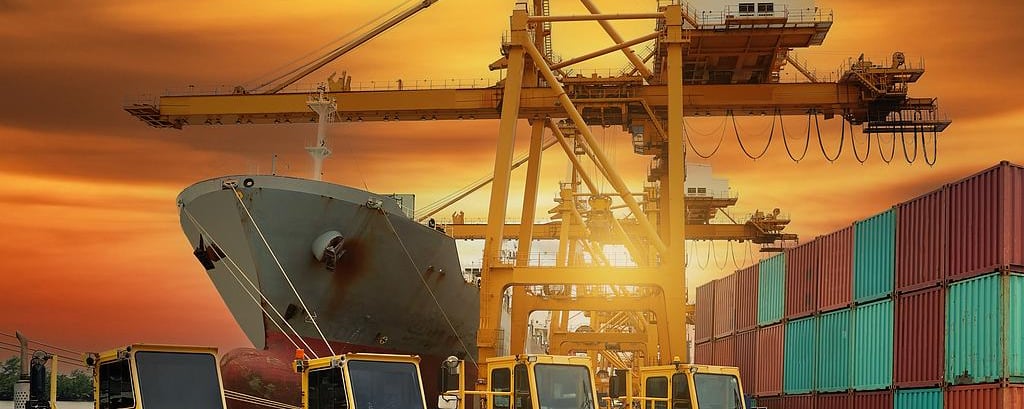

Port and dockyard mobile installations present some of the most challenging operating conditions, combining salt spray, extreme weather, and heavy mechanical loads. Container cranes, ship loaders, mobile harbour equipment, and offshore drilling platforms rely on PUR-HF cables to maintain operational readiness in these harsh marine environments where failure is not an option.

Industrial washing systems, food processing equipment, and chemical plants benefit from the cable's optional water immersion capability. These applications require power transmission in environments where conventional cables would fail due to moisture ingress and chemical exposure.

Advantages in Mechanical Performance

The mechanical performance characteristics of PUR-HF cables set new standards for mobile power applications. The cable design withstands exceptionally high bending frequencies, with minimum bend radii of just 6 times the cable diameter for fixed installations and 7.5 times for moving applications. This tight bending capability allows compact festoon system designs whilst ensuring long operational life exceeding 10 million flex cycles.

High tensile load tolerance reaches up to 15 N/mm² on conductors, enabling the cable to support its own weight plus additional mechanical loads without compromising electrical integrity. This strength proves essential in long horizontal runs and vertical applications where cable weight becomes significant, particularly in large crane installations and multi-level conveyor systems.

Operational speeds accommodate the most demanding industrial applications, supporting trolley speeds up to 240 metres per minute in festoon applications and 60 metres per minute in drum reeling systems. These high-speed capabilities enable rapid material handling and responsive automation systems in high-throughput manufacturing environments.

The operational temperature range from -50°C to +90°C for fixed installations and -40°C to +90°C for moving applications ensures reliable performance across diverse industrial environments. This range covers applications from cold storage facilities and arctic installations to steel mills, glass manufacturing plants, and desert mining operations where extreme temperatures are routine.

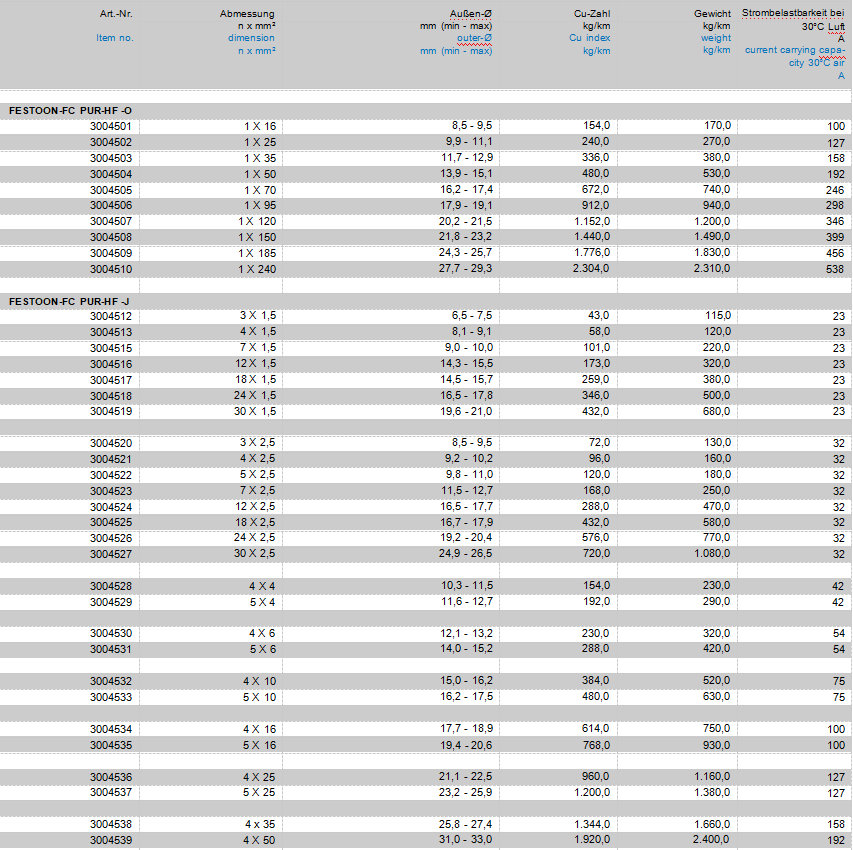

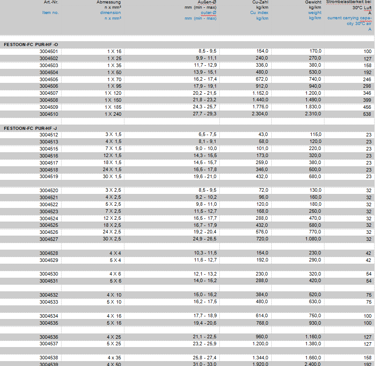

Current carrying capacity varies with conductor size, ranging from 23A for 1.5mm² conductors to 538A for 240mm² single-core cables at 30°C ambient temperature. This broad range accommodates everything from control circuits to high-power motor feeds in industrial machinery.

Environmental and Safety Compliance

Fire safety performance follows IEC 60332-2-1 standards for flame retardancy, ensuring the cable contributes minimal fuel to potential fires whilst maintaining structural integrity during emergency conditions. This characteristic proves crucial in industrial environments where fire risks from welding, heat treatment, and chemical processes are present daily.

Excellent oil resistance according to EN 60811-2-1 standards protects the cable sheath from degradation when exposed to hydraulic fluids, lubricants, industrial solvents, and cutting oils commonly found in manufacturing environments. This resistance extends cable life significantly in applications where oil exposure is inevitable, reducing maintenance costs and downtime.

The cable meets stringent electromagnetic compatibility requirements, ensuring reliable signal transmission even in electrically noisy industrial environments. This performance is critical for automation systems where control signal integrity directly affects production quality and safety systems.

Environmental compliance extends beyond basic safety requirements to include responsible manufacturing practices and end-of-life recyclability. The halogen-free construction eliminates toxic waste concerns whilst maintaining high performance characteristics throughout the cable's operational life.

Customisation options accommodate specific application requirements, with alternative core configurations, conductor cross-sections, voltage ratings, and sheath colours available upon request. This flexibility allows engineers to optimise cable specifications for unique operational requirements whilst maintaining the fundamental performance characteristics that make PUR-HF cables suitable for demanding applications.

Why Choose PUR-HF for Your Festoon System?

The PUR-HF festoon control cable delivers unmatched mechanical and electrical reliability for the most demanding mobile power applications. Its combination of extreme flexibility, environmental resistance, and safety compliance makes it the optimal choice for mission-critical industrial systems where cable failure results in significant operational and financial consequences.

The cable's suitability for high-flex and demanding environments stems from sophisticated engineering that addresses every aspect of mobile power transmission, from conductor design through sheath formulation to manufacturing quality control. This comprehensive approach ensures consistent performance across millions of operational cycles whilst maintaining electrical integrity and safety compliance.

Long operational life and low maintenance requirements translate directly to reduced total cost of ownership, making PUR-HF cables an economically sound investment for industrial facilities. The combination of reliability, performance, and compliance creates value that extends far beyond initial purchase price, providing peace of mind for facility managers and maintenance teams.

Whether your application involves outdoor exposure, chemical contamination, extreme temperatures, or millions of flex cycles, PUR-HF festoon control cables provide the reliability and performance required for successful industrial operations. The extensive range of conductor configurations and customisation options ensures optimal solutions for virtually any mobile power application.

Frequently Asked Questions (FAQ)

Q: What makes PUR-HF cables different from standard industrial cables? A: PUR-HF cables feature a halogen-free polyurethane outer sheath specifically engineered for extreme flexibility and environmental resistance. Unlike standard cables, they can withstand millions of bending cycles whilst maintaining electrical integrity, operate in temperatures from -40°C to +90°C, and resist oils, chemicals, and abrasion. The halogen-free construction provides enhanced fire safety without toxic gas emissions.

Q: Can PUR-HF festoon cables be used outdoors in all weather conditions? A: Yes, PUR-HF cables are designed for both indoor and outdoor use across dry, humid, and wet environments. They resist UV radiation, extreme temperatures, and moisture ingress. Optional variants can even operate continuously submerged in non-drinking water up to 50 metres depth, making them suitable for marine and underwater applications.

Q: What is the expected lifespan of PUR-HF cables in festoon applications? A: PUR-HF cables are engineered to withstand over 10 million flex cycles in typical festoon applications. Actual lifespan depends on operating conditions, bending radius, speed, and environmental factors. Proper installation with appropriate bend radii and support systems can significantly extend operational life, often providing 10-15 years of reliable service in demanding industrial environments.

Q: Are PUR-HF cables suitable for drag chain applications? A: Absolutely. PUR-HF cables excel in drag chain applications due to their exceptional flexibility and resistance to mechanical stress. They're commonly used in CNC machines, automated manufacturing equipment, and robotics where repetitive bending is constant. The oil-resistant sheath protects against coolants and lubricants typically found in machining environments.

Q: What conductor sizes and configurations are available? A: PUR-HF cables are available in single-core configurations from 16mm² to 240mm² and multi-core variants up to 30 x 2.5mm². Control cable versions include options like 3 x 1.5mm² up to 30 x 1.5mm² for smaller control signals. Custom configurations with different core counts, conductor sizes, and specifications can be manufactured upon request.

Q: Do these cables comply with Australian electrical standards? A: While manufactured to European standards (DIN VDE 0250, IEC standards), PUR-HF cables can be supplied with appropriate certifications for Australian applications. They meet RoHS environmental compliance and Low-Voltage Directive requirements. For specific Australian standard compliance, consult with local electrical authorities and consider additional certification if required for your particular application.

Q: Can PUR-HF cables handle high-speed trolley applications? A: Yes, PUR-HF cables support trolley speeds up to 240 metres per minute in festoon systems and 60 metres per minute in drum applications. These high-speed capabilities make them ideal for rapid material handling, automated storage systems, and high-throughput manufacturing equipment where quick response times are essential.

Q: Are customised specifications available for special applications? A: Customisation options include alternative conductor sizes, core counts, voltage ratings, sheath colours, and core identification systems. Special configurations for unique environmental conditions, specific mechanical requirements, or unusual installation constraints can be manufactured. Contact technical specialists to discuss custom solutions for your specific application requirements.
