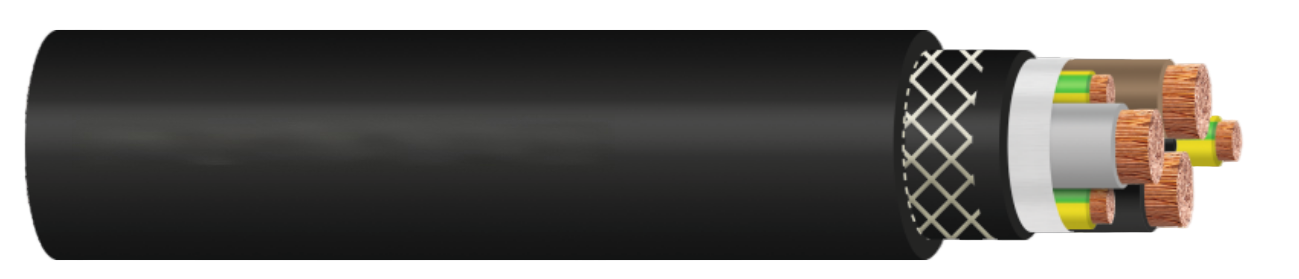

Heavy-Duty Reeling Cable (N)SHTOEU-J – 0.6/1 kV
Robust rubber crane cable for high mechanical stress in port, stockyard, and mobile equipment applications
$45.00
Application: |
Heavy duty rubber reeling cable for power supply. For applications with high mechanical stress, especially for simultaneous tensile and torsional stress. Suitable for all types of mobile equipment such as stackers/reclaimers, on container handling equipment of any kind in ports or stockyard areas with motor-driven mono spiral / cylindrical reels or spring-operated reels. |

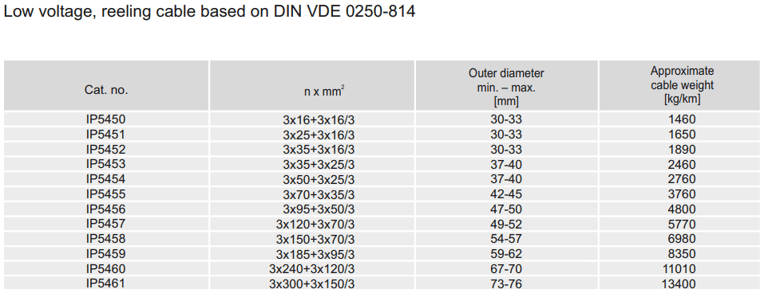

Technical data:
Thermal parameters:
Ambient temperature:
fixed installation: -40 °C to 80 °C
reeling operation: -30 °C to 80 °C
Max. permissible conductor temp.: 90 °C
Max. short-circuit temp. at conductor: 250 °C Mechanical parameters:
Tensile load static/dynamic: 15 / 30 N/mm² Torsional stresses: ± 25 °/m
Bending radius acc. to DIN VDE 0298-3:
- fixed installation: ≥ 4 x cable - Ø
- reeling application: ≥ 6 x cable - Ø
- on deflection pulleys: ≥ 7.5 x cable - Ø
- min. distance with S-type directional changes:20 x cable - Ø
Reeling speed: ≤ 180 m/min
Design:
Main cores:
Conductors: plain copper wires, finely stranded, acc. to IEC 60228 class 5
Insulation: HEPR compound acc. to IEC 60502-1,core colours: acc. to DIN VDE 0293-308
Ground conductor:
Conductor: plain copper wires, finely stranded, acc. to IEC 60228 class 5
Insulation: HEPR compound acc. to IEC 60502-1, core colours: green-yellow
Inner sheath: heavy duty rubber compound, quality 5GM5 acc. to DIN VDE 0207-21, filling the interstices
Reinforcement: braid made of synthetic threads in a vulcanized bond between inner and outer sheath
Outer sheath: heavy duty rubber compound, quality 5GM5 acc. to DIN VDE 0207-21, colour: black, inkjet marking
