High-Flexibility (N)3GHSSHCH Rubber-Insulated Mining Feeder Cable for Tunneling and Stationary Applications – Technical Overview & Benefits

Introduction

1.1. Overview of (N)3GHSSHCH Cable

The (N)3GHSSHCH mining feeder cable represents a significant advancement in underground electrical infrastructure, specifically engineered for demanding mining environments. This rubber-insulated, halogen-free sheathed cable system delivers exceptional performance across multiple voltage ratings, including 6/10 kV, 8.7/15 kV, and 12/20 kV configurations. Designed to meet the stringent requirements of modern mining operations, this cable excels in tunneling applications, stationary installations, and flexible operations where traditional cables may fail.

The cable's designation follows international standards, with the "N" prefix indicating its enhanced safety features for mining applications. The "3G" designation refers to its three-core construction with integrated ground conductor, while "HSSCH" denotes its specialized halogen-free, steel-wire-armored construction with concentrically applied monitoring conductor (ÜL). This sophisticated design addresses the unique challenges faced in underground mining environments, including extreme temperatures, mechanical stress, chemical exposure, and stringent safety requirements.

1.2. Key Features and Benefits

The (N)3GHSSHCH cable system incorporates several critical features that distinguish it from conventional mining cables. Its high-flexibility design enables installation in confined spaces while maintaining structural integrity under continuous mechanical stress. The halogen-free construction eliminates toxic gas emissions during fire incidents, crucial for underground worker safety. The cable's enhanced EPR (Ethylene Propylene Rubber) insulation provides superior electrical characteristics and mechanical durability, extending service life in harsh mining conditions.

The multi-layer construction incorporates advanced stress control technology, ensuring reliable performance across its entire voltage range. The galvanized steel wire braid armoring provides exceptional mechanical protection while maintaining flexibility for complex routing requirements. These features combine to deliver a cable solution that meets both immediate operational needs and long-term reliability requirements in the most demanding underground environments.

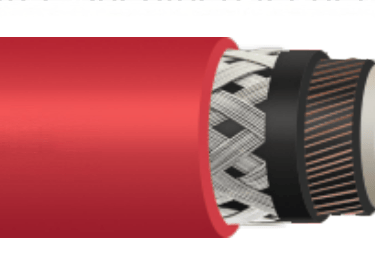

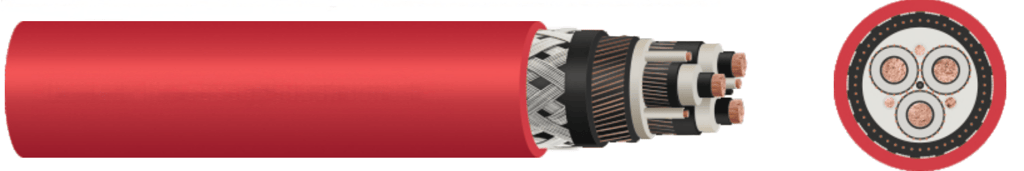

Cable Design and Construction

2.1. Halogen-Free Rubber Insulation

The cable's insulation system utilizes specialized EPR compound technology that eliminates lead content while enhancing both electrical and mechanical characteristics. This advanced formulation, based on DIN VDE 0207-20 standards, provides exceptional dielectric strength and thermal stability across the cable's operating temperature range of -40°C to 80°C for fixed installations and -5°C to 80°C for flexible operations.

The insulation system incorporates a three-layer design featuring inner and outer semi-conductive stress control layers surrounding the primary EPR insulation. This configuration ensures uniform electric field distribution, minimizing stress concentrations that could lead to premature failure. The semi-conductive layers effectively manage voltage stress at conductor interfaces, particularly critical in higher voltage applications where field distortion can cause insulation breakdown.

The halogen-free formulation complies with EN 60754 requirements, ensuring that no bromine, fluorine, or chlorine compounds are present in the insulation materials. This characteristic is essential for underground applications where fire safety and worker protection are paramount concerns. During thermal decomposition, the insulation produces minimal corrosive gases, protecting both personnel and sensitive electronic equipment.

2.2. Multi-Core Stress Control Layers

The cable's sophisticated stress control system extends beyond the primary insulation to encompass the entire multi-core assembly. The three screened main cores are carefully laid up with control cores positioned in the interstices, optimizing space utilization while maintaining electrical isolation. This arrangement provides balanced impedance characteristics and minimizes electromagnetic interference between circuits.

The protective conductor configuration represents a significant engineering achievement, with the cross-section symmetrically split and distributed over the insulation of the three power cores. This design ensures effective fault current distribution while maintaining mechanical balance during cable movement. The conductor construction utilizes plain copper wires in class 5 fine stranding according to IEC 60228, providing optimal flexibility while maintaining current-carrying capacity.

Pilot cores within the assembly use identical conductor construction with specialized EPR compound insulation optimized for control circuit applications. The bedding material fills interstices between cores, providing mechanical stability and protection against moisture ingress while maintaining overall cable flexibility.

2.3. Galvanized Steel Wire Braid Armor

The armoring system employs galvanized steel wire braid providing minimum 75% coverage, delivering exceptional mechanical protection while preserving cable flexibility. This design represents an optimal balance between protection and bendability, crucial for mining applications where cables must navigate complex routing paths and withstand continuous mechanical stress.

The galvanized coating provides long-term corrosion resistance in mining environments where moisture, chemicals, and varying pH conditions are common. The braid construction distributes mechanical loads evenly across the cable surface, preventing localized stress concentrations that could damage internal components during installation or operation.

The armor design accommodates the cable's minimum bending radius requirements of 6 × D for fixed installations and 10 × D for flexible operations, where D represents the cable's outer diameter. For S-type directional changes, the minimum distance requirement of 20 × D ensures that the armor system maintains its protective function without compromising cable integrity.

2.4. Low-Smoke, Zero-Halogen Outer Sheath

The outer sheath construction utilizes special halogen-free compound HM4 according to DIN VDE 0207-24, providing the final barrier against environmental hazards while maintaining the cable's safety characteristics. The distinctive red coloration ensures immediate visual identification in mining installations, critical for safety protocols and maintenance procedures.

This compound formulation meets stringent low smoke emission requirements per EN 61034, ensuring minimal optical density during fire conditions. In underground environments where evacuation routes may be limited, reduced smoke generation can be life-saving. The material's thermal properties maintain integrity across the cable's operating temperature range while providing resistance to chemicals commonly encountered in mining operations.

The sheath design incorporates weather resistance properties enabling unrestricted use indoors and in mines, providing protection against moisture, dust, and chemical exposure. The material's flexibility characteristics support the cable's overall mechanical performance while ensuring long-term environmental protection.

Electrical and Thermal Performance

3.1. Rated Voltage and Current-Carrying Capacity

The (N)3GHSSHCH cable system accommodates multiple voltage classifications to meet diverse mining application requirements. The 6/10 kV variant provides maximum permissible operating voltage of 6.9 kV AC and 8.7 kV DC, suitable for medium-voltage distribution systems. The 8.7/15 kV configuration extends operating capability to 9 kV AC and 10.4 kV DC, while the 12/20 kV variant reaches 13.9 kV AC and 13.5 kV DC for higher voltage applications.

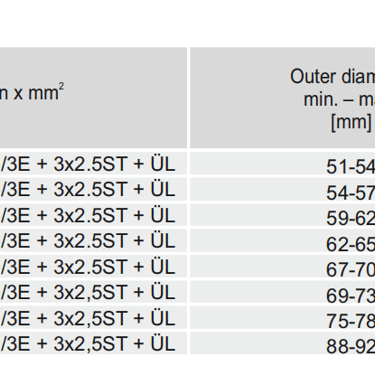

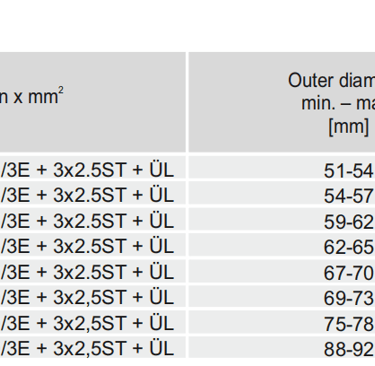

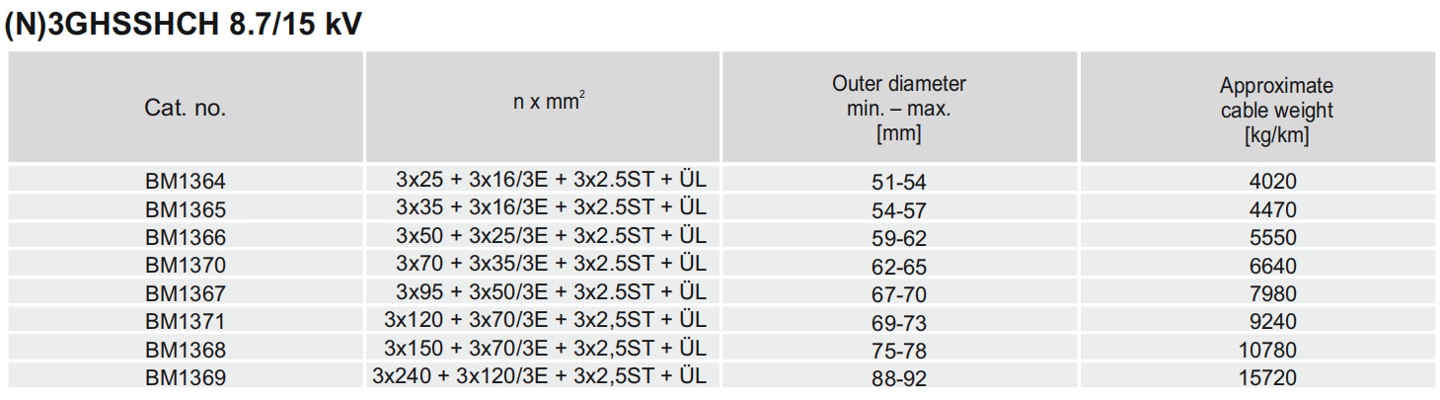

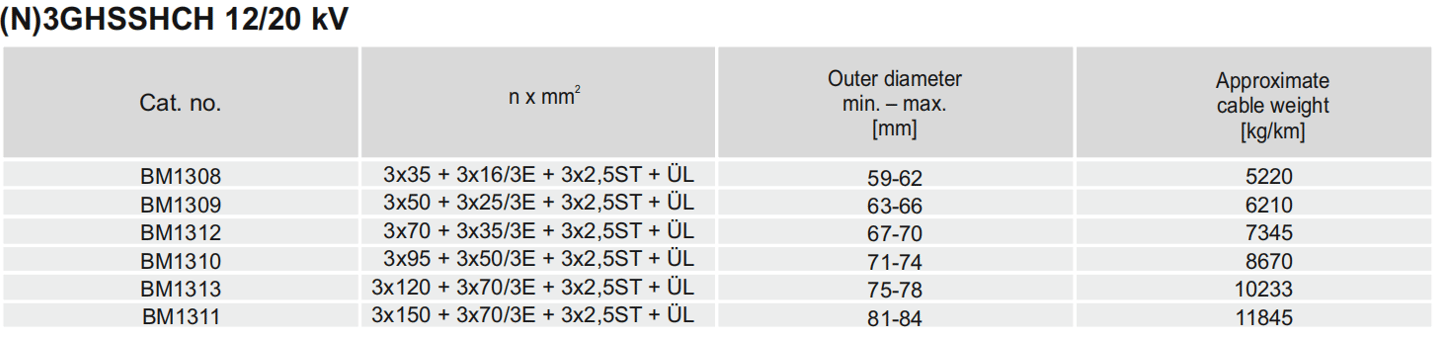

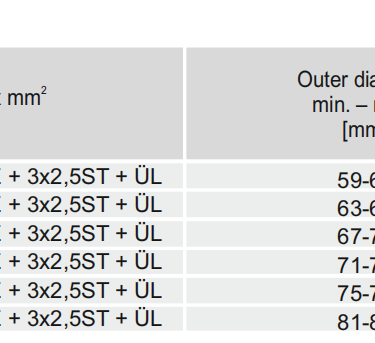

Current-carrying capacities vary according to conductor cross-sectional area, ranging from 25 mm² to 240 mm² configurations. The cable system incorporates comprehensive de-rating factors to account for mining environment conditions, including ambient temperature variations, installation methods, and grouping effects. These factors ensure safe operation while maximizing system capacity within thermal limits.

The electrical design meets requirements of DIN VDE 0250-1, DIN VDE 0250-813, and DIN VDE 0250-605 standards, ensuring compatibility with mining electrical systems worldwide. The concentrically applied monitoring conductor (ÜL) provides DC resistance ≤ 3.30 Ω/km at 20°C, enabling continuous insulation monitoring essential for underground safety systems.

3.2. Maximum Conductor and Short-Circuit Temperatures

The cable's thermal performance specifications address both normal operating conditions and fault scenarios. Maximum continuous conductor temperature reaches 90°C, providing substantial thermal margin for demanding mining applications. This temperature rating accounts for ambient conditions, load variations, and grouping effects typical in underground installations.

During short-circuit conditions, the conductor can withstand temperatures up to 250°C, ensuring system integrity during fault clearing operations. This capability is critical in mining applications where fault clearing times may be extended due to selective coordination requirements or remote operation considerations.

The cable's thermal design incorporates heat dissipation characteristics that prevent hot spots during normal operation while providing adequate thermal capacity during overload conditions. The EPR insulation system maintains its dielectric properties across the entire temperature range, ensuring reliable operation throughout the cable's service life.

3.3. De-rating Factors for Mining Environments

Mining environments present unique thermal challenges requiring careful consideration of de-rating factors. Underground installations often involve elevated ambient temperatures, particularly in deep mines where geothermal heating effects are significant. The cable's thermal design accounts for these conditions through comprehensive de-rating calculations based on DIN VDE 0298-4 standards.

Installation methods significantly impact thermal performance, with tray installations, direct burial, and conduit systems each requiring specific de-rating considerations. The cable's design optimizes heat dissipation for common mining installation methods while maintaining flexibility for specialized applications.

Grouping effects in mining installations, where multiple cables share common routing paths, require additional thermal de-rating. The cable's thermal characteristics minimize mutual heating effects while maintaining safe operating temperatures across all conductors in grouped installations.

Mechanical and Installation Parameters

4.1. Flexibility and Minimum Bending Radius

The (N)3GHSSHCH cable's high-flexibility design enables installation in constrained mining environments where conventional cables would be impractical. The minimum bending radius of 6 × D for fixed installations provides significant advantages in underground routing applications where space constraints are common. For flexible operations, the 10 × D bending radius maintains cable integrity during continuous movement cycles.

The flexibility characteristics result from optimized conductor stranding, insulation formulation, and overall cable construction. Class 5 conductor stranding provides maximum flexibility while maintaining current-carrying capacity and mechanical strength. The EPR insulation system contributes to overall flexibility while preserving dielectric properties throughout the cable's mechanical operating range.

Special consideration for S-type directional changes requires minimum spacing of 20 × D, ensuring that complex routing configurations do not compromise cable performance. This specification is particularly relevant in mining applications where cables must navigate around structural supports, equipment installations, and geological features.

4.2. Tensile Load and Abrasion Resistance

The cable's mechanical strength specifications address the demanding conditions encountered in mining installations. Maximum tensile load per conductor reaches 15 N/mm², providing substantial margin for installation stresses and operational loads. This specification ensures that installation procedures, including cable pulling through conduits and routing around obstacles, do not compromise cable integrity.

The multi-layer construction distributes mechanical loads effectively, preventing damage to internal components during handling and installation. The galvanized steel wire braid armor provides primary mechanical protection while the specialized sheath materials resist abrasion and impact damage common in mining environments.

Long-term mechanical reliability depends on proper installation techniques that respect the cable's mechanical limitations while maximizing its inherent strength characteristics. The cable's design accommodates normal mining operational stresses including vibration, thermal cycling, and occasional mechanical impact.

4.3. Installation Recommendations for Tunneling and Stationary Operations

Installation procedures for (N)3GHSSHCH cables must account for the unique challenges of mining environments while leveraging the cable's specialized design features. In tunneling applications, the cable's flexibility enables routing through complex geometric configurations while maintaining electrical performance. Proper support spacing prevents mechanical stress concentration while allowing for ground movement common in active mining areas.

For stationary operations, installation focus shifts to long-term reliability and maintenance accessibility. Cable routing on gratings, planks, and trays requires careful attention to support spacing and mechanical protection. The cable's armor system provides primary mechanical protection, but installation design should minimize exposure to potential impact sources.

Environmental considerations in mining installations include moisture control, chemical exposure prevention, and temperature management. The cable's halogen-free construction provides inherent resistance to chemical attack, but installation design should incorporate drainage and ventilation considerations where appropriate.

Environmental and Safety Compliance

5.1. Fire Behavior – EN 60332-1-2

The (N)3GHSSHCH cable meets stringent fire behavior requirements per EN 60332-1-2, ensuring controlled flame propagation characteristics essential for underground safety. This standard tests individual cables under specified conditions to verify that flame spread remains within acceptable limits, preventing fire escalation in mining environments where evacuation options may be limited.

The cable's fire performance results from its halogen-free construction combined with specialized compound formulations that limit flame propagation without producing toxic combustion products. This characteristic is particularly critical in mining applications where smoke and toxic gas generation can create life-threatening conditions in confined spaces.

Testing procedures verify that the cable will not contribute to fire spread beyond the immediate ignition source, providing time for fire suppression systems to activate and personnel to evacuate safely. The 24-month warranty period reflects confidence in the cable's long-term fire safety performance under normal mining operating conditions.

5.2. Low Smoke Emission – EN 61034

Low smoke emission characteristics per EN 61034 ensure that the cable minimizes optical density during fire conditions, maintaining visibility for safe evacuation. In underground mining environments, smoke generation can quickly obscure escape routes and complicate rescue operations, making this specification critical for worker safety.

The cable's compound formulations produce minimal smoke during thermal decomposition, maintaining visual clarity that can be life-saving during emergency situations. This performance extends beyond fire conditions to include overheating situations that may occur during electrical faults or overload conditions.

Testing verification ensures that smoke density remains below specified thresholds under controlled burning conditions, providing quantitative assurance of the cable's safety performance. This specification complements the halogen-free characteristics to deliver comprehensive safety protection in mining applications.

5.3. Halogen-Free Compliance – EN 60754 & RoHS

Halogen-free compliance per EN 60754 eliminates bromine, fluorine, and chlorine content from all cable components, preventing formation of corrosive and toxic gases during thermal events. This specification is mandatory for many mining applications where worker safety and equipment protection are paramount concerns.

The cable also meets RoHS 2015/863/EU requirements, restricting hazardous substances including lead, mercury, cadmium, and specific organic compounds. This compliance ensures environmental responsibility while maintaining performance characteristics essential for mining applications.

Combined halogen-free and RoHS compliance demonstrates the manufacturer's commitment to environmental and safety standards without compromising technical performance. These certifications provide assurance that the cable meets current and anticipated future regulatory requirements for mining applications.

Application Scenarios and Use Cases

6.1. Tunneling and Underground Conveyor Systems

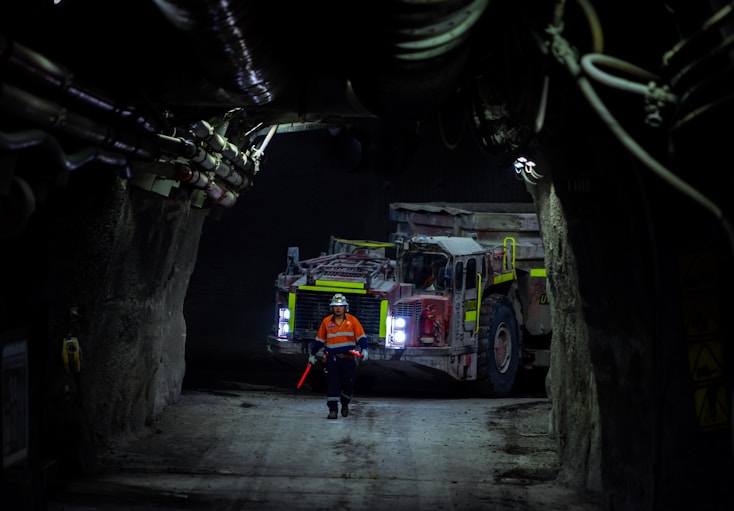

Tunneling operations represent one of the most demanding applications for mining cables, where the (N)3GHSSHCH system excels through its combination of flexibility, mechanical strength, and safety features. In tunnel boring machine (TBM) operations, cables must withstand continuous movement, vibration, and potential mechanical contact while maintaining electrical integrity. The cable's 10 × D flexible bending radius enables routing through TBM cable management systems while its armored construction provides protection against mechanical damage.

Underground conveyor systems benefit from the cable's high current-carrying capacity and thermal performance, supporting high-power motor drives essential for material transport operations. The cable's monitoring conductor (ÜL) enables continuous insulation surveillance, providing early warning of potential failures that could disrupt critical conveyor operations.

Long-distance tunnel installations leverage the cable's low electrical losses and stable electrical characteristics, minimizing voltage drop and power quality issues common in extended underground distribution systems. The halogen-free construction ensures that any thermal events will not generate toxic gases that could contaminate tunnel ventilation systems.

6.2. Stationary Mines and Mineral Processing Plants

In stationary mining operations, the (N)3GHSSHCH cable provides reliable power distribution for crushing equipment, processing machinery, and facility infrastructure. The cable's voltage ratings accommodate both medium-voltage distribution and equipment connections, simplifying system design while ensuring compatibility across diverse equipment types.

Mineral processing plants benefit from the cable's chemical resistance and environmental protection, essential in environments where process chemicals and moisture are common. The galvanized armor system provides long-term corrosion resistance while the halogen-free sheath materials resist chemical attack from processing agents.

The cable's thermal performance supports high-duty-cycle applications common in processing operations, where equipment operates continuously under varying load conditions. De-rating factors account for elevated ambient temperatures often encountered in processing facilities, ensuring safe operation while maximizing system capacity.

6.3. On-Grating and Tray Installations

Installation on gratings, planks, and trays represents a common mining cable application where the (N)3GHSSHCH system's design provides significant advantages. The cable's mechanical construction supports its own weight across standard support spacings while maintaining electrical performance. The armor system distributes mechanical loads effectively, preventing sagging and mechanical stress concentration.

Tray installations benefit from the cable's organized core layout and outer diameter consistency, enabling efficient use of tray space while maintaining proper clearances for heat dissipation. The distinctive red outer sheath provides immediate visual identification, essential for safety protocols and maintenance procedures in complex installations.

The cable's flame propagation characteristics are particularly important in tray installations where multiple cables share common routing paths. The EN 60332-1-2 compliance ensures that any fire event will not propagate beyond the immediate source, protecting adjacent cables and limiting damage scope.

Comparison with Alternative Mining Cables

7.1. Flexibility and Weight Advantages

Compared to traditional mining cables, the (N)3GHSSHCH system offers superior flexibility characteristics that translate directly into installation advantages and reduced labor costs. Conventional armored cables often require larger bending radii and specialized installation equipment, increasing installation complexity and cost in constrained mining environments.

Weight comparison across equivalent current ratings shows the (N)3GHSSHCH system provides optimal weight distribution that simplifies handling and installation procedures. The cable weights range from 4,020 kg/km for smaller conductor sizes to 15,720 kg/km for the largest configurations, representing efficient use of materials while maintaining mechanical protection requirements.

The flexibility advantages extend beyond installation to operational benefits, where the cable's ability to accommodate ground movement and equipment vibration reduces mechanical stress and extends service life. This characteristic is particularly valuable in active mining areas where ground conditions may change over time.

7.2. Thermal and Electrical Performance Differences

Electrical performance comparison reveals that the (N)3GHSSHCH system's advanced insulation technology provides superior dielectric characteristics compared to conventional mining cables. The EPR insulation system maintains stable electrical properties across wide temperature ranges while providing enhanced voltage withstand capability.

Thermal performance advantages include higher continuous conductor temperature ratings and improved heat dissipation characteristics. These features enable higher current-carrying capacity for given conductor sizes, potentially reducing cable size requirements and installation costs for specific applications.

The monitoring conductor (ÜL) feature provides continuous insulation monitoring capability not available in conventional mining cables, enabling predictive maintenance strategies that can prevent unscheduled downtime and reduce maintenance costs over the cable's service life.

7.3. Cost and Lifecycle Considerations

Initial cost comparison must consider the total installed cost including cable material, installation labor, and supporting infrastructure requirements. While the (N)3GHSSHCH system may have higher material costs compared to basic mining cables, the installation advantages and superior performance characteristics often result in lower total project costs.

Lifecycle cost analysis reveals significant advantages through reduced maintenance requirements, extended service life, and improved reliability. The cable's comprehensive safety features reduce insurance and regulatory compliance costs while its monitoring capabilities enable optimized maintenance scheduling.

The 24-month warranty period reflects manufacturer confidence in long-term performance while providing cost protection for mining operators. This warranty coverage, combined with the cable's proven performance characteristics, supports favorable lifecycle cost projections compared to alternative cable systems.

Conclusions and Recommendations

8.1. Summary of Benefits

The (N)3GHSSHCH rubber-insulated mining feeder cable represents a significant advancement in underground electrical infrastructure technology. Its combination of high flexibility, comprehensive safety features, and superior electrical performance addresses the most challenging requirements of modern mining operations while providing long-term reliability and cost effectiveness.

Key benefits include halogen-free construction for enhanced safety, advanced EPR insulation for superior electrical performance, high flexibility for complex installations, comprehensive mechanical protection through armored construction, continuous monitoring capability through integrated monitoring conductor, and compliance with international safety and environmental standards. These features combine to deliver a cable solution that meets both immediate operational requirements and long-term strategic objectives for mining operations.

8.2. Best Practices for Installation and Maintenance

Successful implementation of (N)3GHSSHCH cables requires adherence to established installation best practices that leverage the cable's design advantages while ensuring long-term reliability. Installation planning should account for the cable's bending radius requirements, support spacing recommendations, and environmental protection needs.

Regular maintenance procedures should include insulation monitoring through the ÜL conductor, visual inspection of cable routing and support systems, verification of environmental protection measures, and documentation of any ground movement or structural changes that might affect cable integrity. These practices ensure maximum service life while identifying potential issues before they result in service interruptions.

8.3. Procurement and OEM Partnering Tips

Procurement decisions should consider total lifecycle costs rather than initial material costs alone, emphasizing the value of superior performance characteristics and comprehensive warranty coverage. Partnership with experienced cable manufacturers and installation contractors ensures optimal system design and implementation.

Technical specifications should clearly define application requirements, environmental conditions, and performance expectations to ensure proper cable selection and installation design. Close collaboration between mining operators, electrical consultants, and cable manufacturers throughout the project lifecycle ensures optimal results and maximum value from the cable system investment.

The (N)3GHSSHCH mining feeder cable system represents the current state-of-the-art in underground electrical infrastructure, providing mining operators with a proven solution for their most demanding applications while supporting safe, efficient, and profitable mining operations.

Frequently Asked Questions About (N)3GHSSHCH Mining Cables

Q: What causes cable insulation failures in mining environments, and how does the (N)3GHSSHCH cable address these issues?

A: Cable insulation failures in mining environments typically result from moisture ingress, chemical exposure, thermal cycling, mechanical stress, and electrical stress concentration. The (N)3GHSSHCH cable addresses these issues through its advanced EPR insulation system with semi-conductive stress control layers, halogen-free compound construction that resists chemical attack, comprehensive armoring system for mechanical protection, and continuous insulation monitoring capability through the integrated ÜL conductor.

Q: Why is the halogen-free construction important for mining applications, and what are the safety implications?

A: Halogen-free construction is critical for mining safety because halogenated materials produce toxic and corrosive gases when heated or burned. In underground mining environments where ventilation is limited and evacuation routes may be constrained, toxic gas generation can create life-threatening conditions. The (N)3GHSSHCH cable's halogen-free design ensures that thermal events will not produce dangerous gases, protecting both personnel and sensitive electronic equipment while meeting stringent EN 60754 requirements.

Q: How should installation teams handle the cable's flexibility requirements in tight mining spaces?

A: The cable's flexibility should be utilized within its specified bending radius limits of 6 × D for fixed installations and 10 × D for flexible operations. Installation teams should use proper cable pulling techniques, avoid exceeding tensile load limits of 15 N/mm², provide adequate support spacing to prevent sagging, and maintain minimum distances of 20 × D for S-type directional changes. Proper installation planning should account for the cable's mechanical characteristics while leveraging its flexibility advantages for complex routing requirements.

Q: What maintenance procedures are recommended for long-term reliability of (N)3GHSSHCH cables?

A: Recommended maintenance includes regular insulation monitoring through the ÜL conductor using appropriate test equipment, visual inspection of cable supports and routing systems, verification that environmental protection measures remain effective, monitoring of ground movement or structural changes that might affect cable integrity, documentation of any thermal events or electrical faults, and periodic testing of fire safety systems in cable areas. The integrated monitoring conductor enables predictive maintenance strategies that can prevent unscheduled failures.
