High-Flexibility (N)3GHSSYCY Mining Cable for Tunneling and Stationary Installations: Specifications, Applications, and Benefits

Introduction

The mining industry demands electrical infrastructure that can withstand the harshest environmental conditions while maintaining reliable power transmission. The (N)3GHSSYCY cable represents a cutting-edge solution specifically engineered for the challenging demands of underground and surface mining operations. This high-flexibility feeder cable combines advanced materials science with robust construction to deliver exceptional performance in tunneling, stationary installations, and mobile mining equipment.

Modern mining operations require electrical cables that can adapt to dynamic conditions, from the confined spaces of underground tunnels to the exposed environments of surface mining facilities. The (N)3GHSSYCY rubber insulated PVC sheathed feeder cable addresses these challenges through its innovative design, which prioritizes flexibility without compromising electrical performance or safety standards. Understanding the comprehensive specifications and applications of this cable system is crucial for mining engineers, electrical contractors, and facility managers who seek to optimize their power distribution networks.

Technical Specifications

Electrical Parameters

The (N)3GHSSYCY cable operates across multiple voltage classifications, making it versatile for various mining applications. In AC systems, the cable handles maximum permissible operating voltages ranging from 6.9/12 kV to 18/36 kV, while DC system applications support voltages from 6/10 kV to 13.9/24 kV. This broad voltage range ensures compatibility with both legacy and modern mining electrical systems.

The conductor construction utilizes plain copper wires that are finely stranded to class 5 specifications according to IEC 60228 standards. This mining cable specifications detail ensures optimal electrical conductivity while maintaining the mechanical flexibility essential for demanding mining environments. The copper conductors provide superior current-carrying capacity and resist corrosion in humid underground conditions.

The insulation system employs a sophisticated three-layer approach. An inner semi-conductive stress control layer manages electrical field distribution, followed by an EPR (Ethylene Propylene Rubber) compound that is lead-free and features improved electrical and mechanical characteristics based on DIN VDE 0207-20 standards. An outer semi-conductive insulation shield layer completes the primary insulation system, providing enhanced electrical integrity and reducing the risk of partial discharge phenomena.

Thermal Parameters

Temperature management is critical in mining operations, where cables may encounter extreme environmental variations. The (N)3GHSSYCY rubber insulated PVC sheathed feeder cable demonstrates exceptional mining tunnel cable temperature tolerance, operating reliably across a wide thermal spectrum.

For fixed installations, the permissible temperature range on the cable surface extends from -40°C to 80°C, accommodating the temperature extremes found in both surface mining facilities and deep underground operations. When used in flexible operations, the temperature range adjusts to -25°C to 80°C, reflecting the additional thermal considerations associated with cable movement and bending stress.

The maximum conductor temperature rating of 90°C provides substantial thermal headroom for normal operations, while the short-circuit temperature rating of 250°C at the conductor ensures cable integrity during fault conditions. These thermal specifications enable the cable to maintain performance even during peak electrical loads or emergency situations commonly encountered in mining environments.

Mechanical Parameters

The mechanical robustness of the (N)3GHSSYCY cable directly supports its application in dynamic mining scenarios. With a maximum tensile load rating of 15 N/mm² per conductor, the cable can withstand the mechanical stresses associated with installation in challenging mining terrain and subsequent operational loads.

Bending radius for flexible mining cables represents a critical specification that affects installation feasibility and long-term reliability. For fixed installations, the minimum bending radius equals 6 times the cable diameter (6×D), while flexible operations require a minimum bending radius of 10 times the cable diameter (10×D). These specifications ensure that the cable maintains its electrical and mechanical integrity throughout its operational lifetime.

When designing cable routes with S-type directional changes, engineers must maintain a minimum distance of 20 times the cable diameter (20×D) between direction changes. This specification prevents excessive mechanical stress that could compromise the cable's internal structure and electrical performance over time.

Chemical and Environmental Resistance

Mining environments expose cables to aggressive chemical conditions, moisture, and ultraviolet radiation. The (N)3GHSSYCY cable incorporates comprehensive environmental protection through its advanced materials and construction. The UV-resistant mining feeder cable design enables unrestricted use both indoors and in mining applications where exposure to sunlight may occur.

The cable complies with RoHS 2015/863/EU directives, ensuring environmental responsibility by eliminating hazardous substances from its construction. Additionally, CPR 305/2011 compliance demonstrates adherence to European construction product regulations, providing assurance of quality and safety standards.

Weather resistance characteristics allow for versatile deployment across various mining scenarios, from underground tunnels with high humidity to surface installations exposed to extreme weather conditions. This environmental adaptability reduces the need for multiple cable types within a single mining operation.

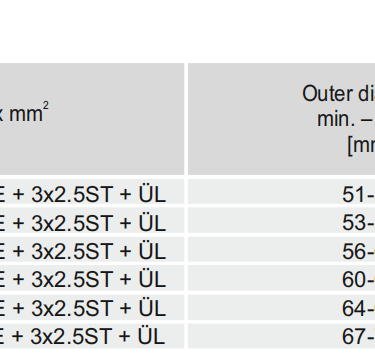

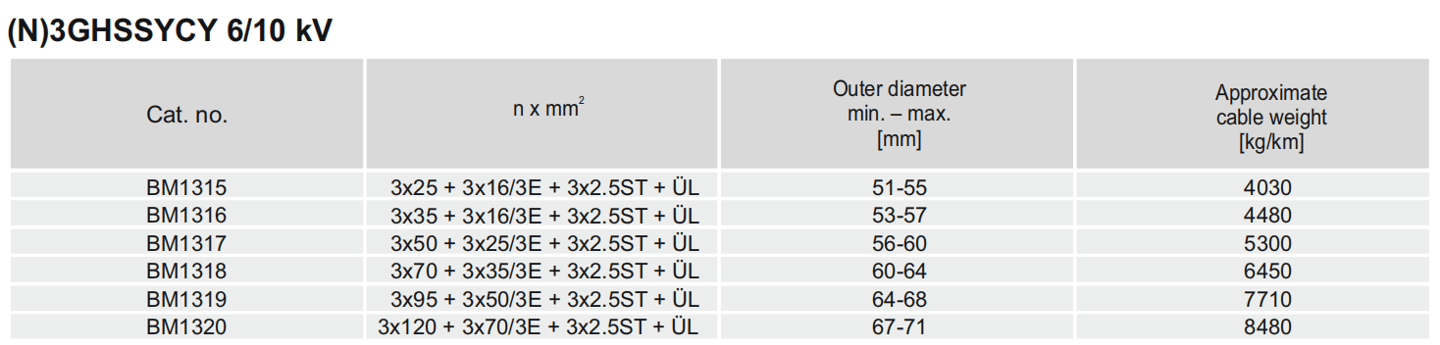

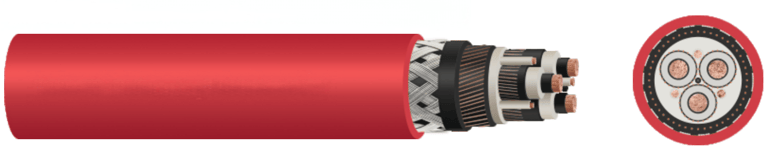

Construction and Components

Core and Pilot Core Stranding

The (N)3GHSSYCY cable features a sophisticated internal architecture designed to maximize both electrical performance and mechanical flexibility. Three screened main cores are strategically laid-up with pilot cores positioned in the interstices, creating a compact yet robust configuration that optimizes space utilization while maintaining electrical isolation.

The pilot cores utilize plain copper wire conductors that are finely stranded to class 5 specifications, identical to the main conductors. These pilot cores feature special EPR compound insulation that is lead-free and incorporates improved electrical and mechanical characteristics based on DIN VDE 0207-20 standards. This consistency in materials and construction standards ensures uniform performance across all cable components.

A specialized plastic compound bedding fills the interstices between cores, providing mechanical support and maintaining the cable's structural integrity during bending and flexing operations. This bedding system contributes significantly to the cable's high-flexibility feeder cable characteristics while protecting individual cores from mechanical stress.

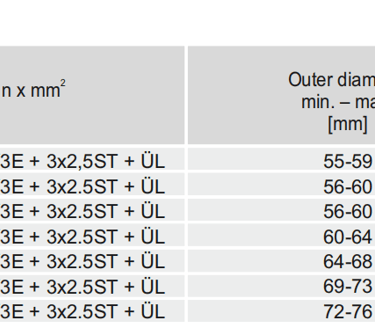

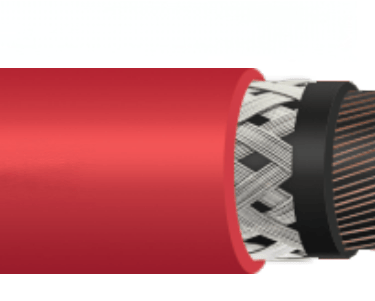

Sheath and Armor Systems

The mining cable specifications include a comprehensive protection system featuring multiple sheath layers and robust armoring. The first inner sheath utilizes PVC compound type DMV6 according to DIN VDE 0276-603 standards, providing initial protection against moisture ingress and mechanical damage.

A concentrical monitoring conductor (ÜL) is integrated into the design, featuring plain copper wires with a DC resistance not exceeding 3.30 Ω/km at 20°C. This monitoring system enables continuous assessment of cable integrity and early detection of potential issues that could compromise mining operations.

The second inner sheath, also constructed from PVC compound type DMV6, provides additional protection before the armoring system. The galvanized steel wire braid armor delivers exceptional mechanical protection with minimum 75% coverage, ensuring the cable can withstand the physical demands of mining environments while maintaining flexibility.

The outer sheath, manufactured from PVC compound type DMV6 in a distinctive red color, provides final environmental protection and easy identification in mining installations.

Application Scenarios

Tunneling and Underground Mining

Underground mining operations present unique challenges for electrical infrastructure. The (N)3GHSSYCY rubber insulated PVC sheathed feeder cable excels in these demanding environments, providing reliable power transmission through confined spaces where traditional rigid cables would prove impractical.

Tunneling applications benefit from the cable's exceptional flexibility and compact design, allowing for efficient installation around obstacles and through restricted access points. The cable's temperature tolerance ensures consistent performance despite the thermal variations common in underground mining operations, from naturally cool deep tunnels to areas heated by mining equipment.

Stationary Installations on Gratings, Planks, and Trays

Surface mining facilities and processing plants require robust electrical distribution systems that can support heavy industrial equipment. The cable's design accommodates installation on gratings, planks, and trays commonly used in mining infrastructure, providing secure mounting options while maintaining accessibility for maintenance operations.

The UV-resistant mining feeder cable characteristics prove particularly valuable in these exposed installations, where prolonged sunlight exposure could degrade inferior cable materials. The cable's weather resistance ensures long-term reliability in outdoor mining environments subject to extreme temperature variations, precipitation, and wind loading.

Non-stationary and Mobile Mining Equipment

Modern mining operations increasingly rely on mobile equipment that requires flexible power connections capable of withstanding continuous movement and positioning changes. The (N)3GHSSYCY cable) addresses these requirements through its enhanced flexibility specifications and robust construction.

The bending radius for flexible mining cables specifications enable tight routing around mobile equipment while maintaining electrical integrity during operation. This flexibility proves essential for draglines, mobile crushers, and other equipment that must relocate frequently within mining sites.

Operational Exclusions

While versatile in its applications, the (N)3GHSSYCY cable is specifically excluded from use in traditional mining operations and local operations where different cable specifications may be more appropriate. This exclusion ensures that the cable is deployed only in applications where its specialized characteristics provide optimal performance and safety.

Installation and Maintenance Guidelines

Handling and Bending Best Practices

Proper installation techniques are essential for maximizing the performance and lifespan of the (N)3GHSSYCY cable). Installation teams must strictly adhere to the specified bending radius requirements to prevent internal damage that could compromise electrical performance or mechanical integrity.

During installation, cable handling should minimize stress concentration points and avoid sharp-edged contact surfaces that could damage the outer sheath. The cable's flexibility allows for efficient installation in challenging mining environments, but proper technique ensures these advantages are fully realized.

Temperature Monitoring and Short-Circuit Precautions

The mining tunnel cable temperature tolerance specifications provide substantial operating margins, but monitoring systems should verify that actual operating temperatures remain within specified limits. Regular thermal imaging inspections can identify potential issues before they compromise mining operations.

Short-circuit protection systems must account for the cable's 250°C short-circuit temperature rating, ensuring that protective devices operate before this threshold is reached. This coordination prevents cable damage and maintains system reliability in mining environments where electrical faults can have serious operational consequences.

Periodic Inspection for UV and Chemical Degradation

The UV-resistant mining feeder cable construction provides excellent protection against environmental degradation, but periodic inspection remains essential for maintaining optimal performance. Visual inspections should identify any signs of outer sheath deterioration, mechanical damage, or chemical exposure that could compromise cable integrity.

In mining environments with aggressive chemical exposure, inspection frequencies may need adjustment based on local conditions. Early identification of degradation allows for preventive maintenance that extends cable life and prevents unexpected failures.

Comparative Advantages

High Flexibility vs. Standard Mining Cables

The (N)3GHSSYCY cable offers significant advantages over standard mining cables through its enhanced flexibility characteristics. Traditional mining cables often require larger bending radii and may be unsuitable for applications involving frequent movement or tight routing constraints.

The high-flexibility feeder cable design enables installation in locations where standard cables would be impractical, expanding options for mining engineers and reducing installation complexity. This flexibility translates to reduced installation time and lower overall project costs.

Enhanced Temperature Range and Fire Behavior

Compliance with EN 60332-1-2 fire behavior standards demonstrates the cable's superior safety characteristics compared to conventional mining cables. The enhanced temperature range provides greater operational margins, reducing the risk of thermal damage in demanding mining applications.

The mining cable specifications include thermal ratings that exceed many standard cables, providing confidence in extreme temperature applications common in both surface and underground mining operations.

Longevity and Warranty

The 24-month warranty provided with the (N)3GHSSYCY rubber insulated PVC sheathed feeder cable demonstrates manufacturer confidence in the product's quality and durability. This warranty coverage provides mining operations with assurance of long-term reliability and supports maintenance planning efforts.

The combination of high-quality materials, robust construction, and comprehensive testing ensures that the cable delivers reliable performance throughout its designed operational life, reducing replacement costs and minimizing operational disruptions.

Conclusion

The (N)3GHSSYCY cable represents a significant advancement in mining electrical infrastructure, combining exceptional flexibility with robust electrical and mechanical performance. Its comprehensive specifications address the unique challenges of mining environments while providing the reliability essential for continuous operations.

From tunneling applications requiring tight bending radii to stationary installations demanding long-term environmental resistance, this high-flexibility feeder cable delivers versatile performance across diverse mining scenarios. The combination of advanced materials, sophisticated construction, and rigorous testing ensures that mining operations can depend on consistent electrical power delivery.

For mining engineers and facility managers seeking to optimize their electrical infrastructure, the (N)3GHSSYCY cable offers a compelling solution that balances performance, flexibility, and reliability. Contact your cable supplier for detailed datasheets, specific configuration options, and pricing information to determine how this innovative cable system can enhance your mining operations.

Frequently Asked Questions

Q: What makes the (N)3GHSSYCY cable suitable for both fixed and flexible mining applications?

A: The cable's design incorporates dual bending radius specifications - 6×D for fixed installations and 10×D for flexible operations. This allows the same cable type to serve both stationary equipment and mobile applications, simplifying inventory management while ensuring optimal performance in each application type.

Q: How does the temperature tolerance of this mining cable compare to standard industrial cables?

A: The (N)3GHSSYCY cable offers superior temperature tolerance with a range from -40°C to 80°C for fixed installations and -25°C to 80°C for flexible operations. This exceeds many standard industrial cables and specifically addresses the extreme temperature variations encountered in mining environments.

Q: Can this cable be used in areas with high chemical exposure typical of mining operations?

A: Yes, the cable incorporates chemical-resistant materials and construction techniques specifically designed for mining environments. The PVC sheath system and specialized insulation compounds provide protection against the aggressive chemicals commonly encountered in mining operations, though periodic inspection remains recommended for optimal performance.
