High-Flexibility (N)TSCGEWOEU-SR Medium-Voltage Reeling Power Cable for Extreme Mechanical Stress Applications

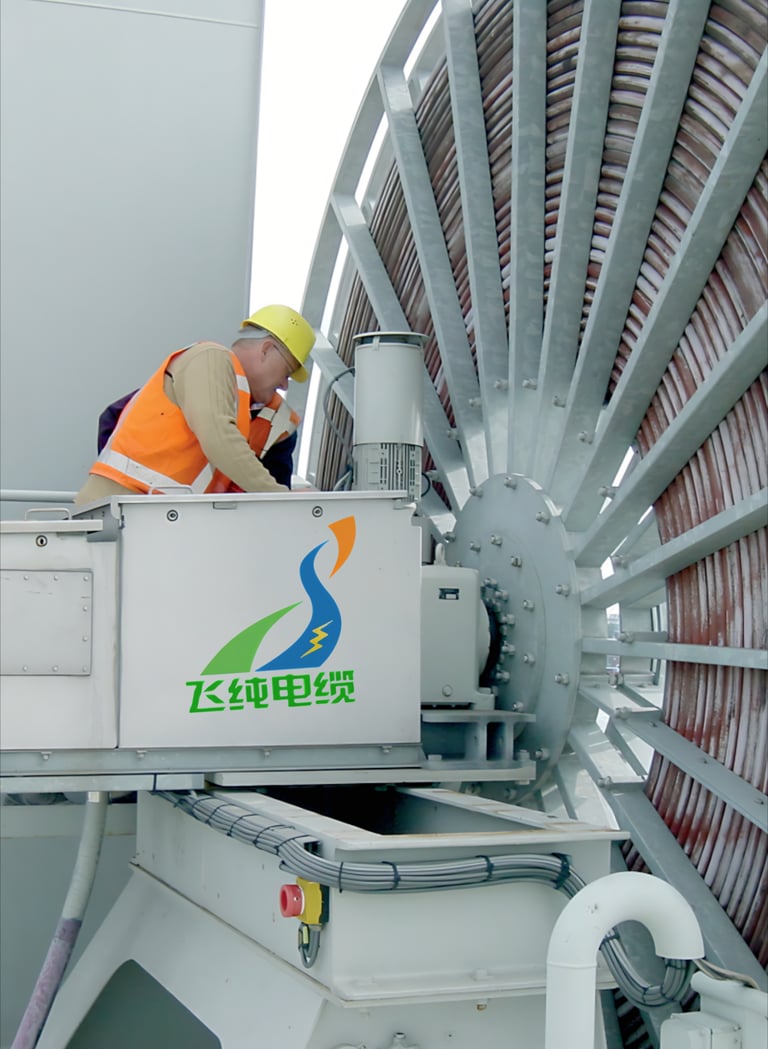

Introduction

In today's demanding industrial landscape, reliable power transmission under extreme mechanical stress conditions is paramount. The (N)TSCGEWOEU-SR medium-voltage reeling power cable represents a breakthrough in flexible power supply technology, specifically engineered to withstand the harsh operational demands of heavy industry applications. This specialised flexible reeling cable delivers exceptional performance in environments where conventional cables would fail, making it the preferred choice for critical infrastructure projects across Australia and internationally.

The (N)TSCGEWOEU-SR cable is meticulously designed according to DIN VDE 0250-813 standards and complies with CPR 305/2011 regulations, ensuring both safety and performance excellence. Its robust construction and advanced materials engineering make it ideally suited for applications requiring continuous movement, high tensile loads, and exposure to challenging environmental conditions. From the expansive open-pit mines of Western Australia to the bustling container terminals of Sydney Harbour, this high-flexibility cable provides the reliability that modern industrial operations demand.

Typical application environments for this medium-voltage power cable include open-pit mining operations where material handling equipment requires continuous power supply during extensive travel movements, harbour installations where cranes operate in corrosive marine environments, shipyard facilities demanding reliable power transmission to mobile equipment, and stockyard operations where stacker/reclaimers require flexible power connections across vast storage areas.

Key Technical Specifications

Voltage Ratings and Insulation System

The (N)TSCGEWOEU-SR cable features multiple voltage configurations to accommodate diverse industrial requirements. Available voltage ratings include 3.6/6 kV, 6/10 kV, 8.7/15 kV, 12/20 kV, 14/25 kV, and 18/30 kV, with maximum permissible operating voltages reaching up to 20.8/36 kV in AC systems and 27/54 kV in DC applications. This comprehensive range ensures compatibility with virtually any medium-voltage power distribution system.

The insulation system employs a sophisticated three-layer design featuring an inner semi-conductive stress control layer, EPR (Ethylene Propylene Rubber) compound with enhanced electrical and mechanical characteristics based on DIN VDE 0207-20, and an outer semi-conductive insulation shield layer. This configuration provides superior electrical performance whilst maintaining the exceptional flexibility required for reeling applications.

Conductor and Semi-Conductive Layers

The cable utilises plain copper conductors manufactured to Class 5 specifications according to IEC 60228, ensuring maximum flexibility through fine stranding. The main cores feature optimised lay lengths for enhanced mechanical performance, whilst the ground conductor cross-section is strategically split into three parts positioned in the outer interstices for optimal electrical protection.

Each conductor incorporates semi-conductive layers that provide uniform electric field distribution, preventing corona discharge and ensuring long-term electrical integrity. This design approach significantly extends service life even under the most demanding operational conditions.

Mechanical Properties

The reeling power supply cable demonstrates exceptional mechanical performance with a maximum tensile load capacity of 20 N/mm² on conductors and torsional stress tolerance of ±25°/m. The bending radius conforms to DIN VDE 0298-3 specifications, with a minimum distance requirement of 20 times the outer diameter for S-type directional changes.

Reeling speeds up to 180 metres per minute are achievable, making this cable suitable for high-speed industrial applications. The permissible tensile forces vary according to conductor cross-section, ranging from 1,125/1,500 N (static/dynamic) for smaller configurations up to 10,800/14,400 N for larger installations.

Thermal and Environmental Resistance

Operating temperature ranges accommodate both fixed installation (-50°C to 80°C) and reeling operation (-30°C to 80°C) scenarios. The maximum permissible conductor temperature reaches 90°C during normal operation, with short-circuit protection up to 250°C at the conductor.

Environmental resistance characteristics include comprehensive UV protection, oil resistance per DIN EN/IEC 60811-404, and unrestricted outdoor use capability with resistance to ozone, moisture, and weathering effects. These properties ensure reliable performance across diverse Australian climatic conditions, from the tropical humidity of Northern Queensland to the arid conditions of the Pilbara region.

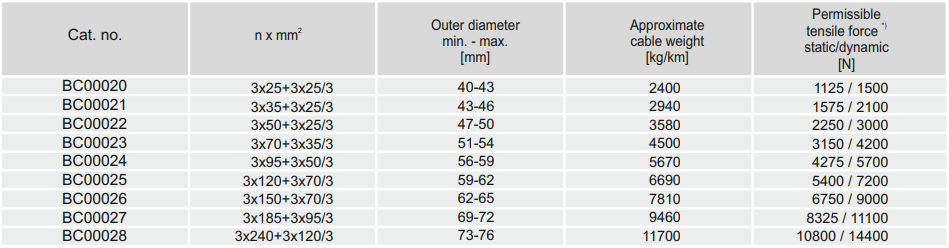

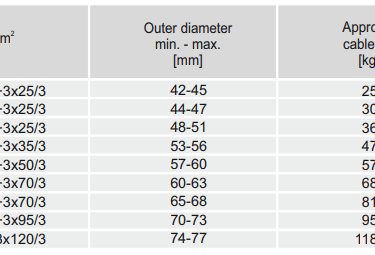

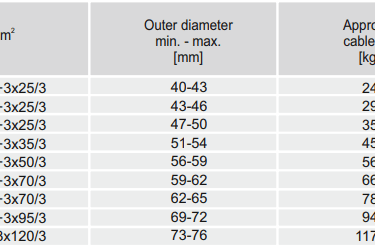

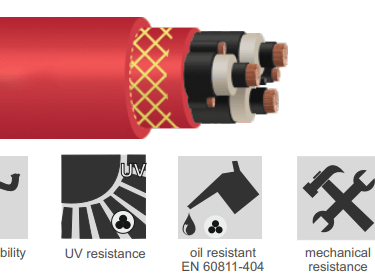

Feichun (N)TSCGEWOEU-SR 3.6/6kV

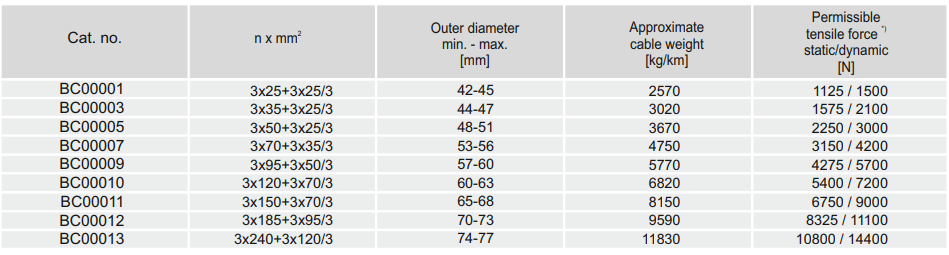

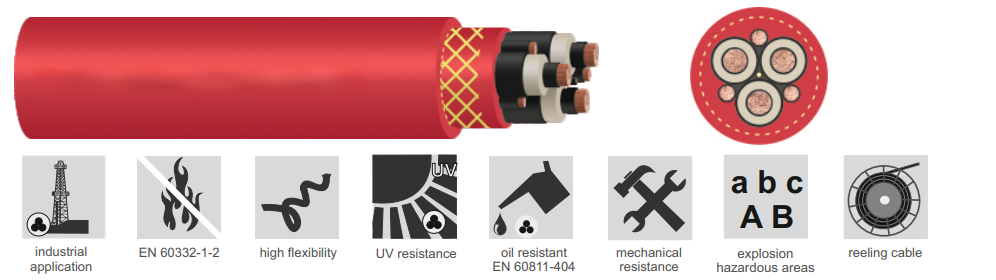

Feichun (N)TSCGEWOEU-SR 6/10kV

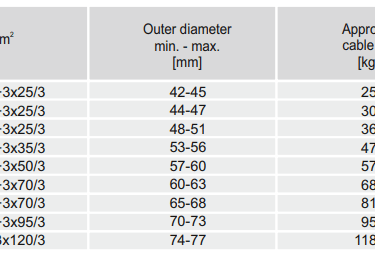

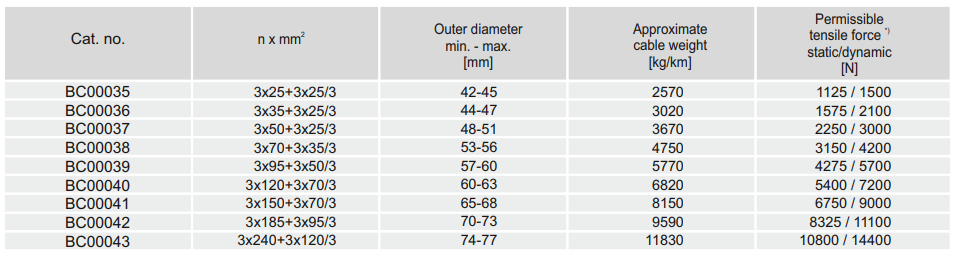

Feichun (N)TSCGEWOEU-SR 8.7/15kV

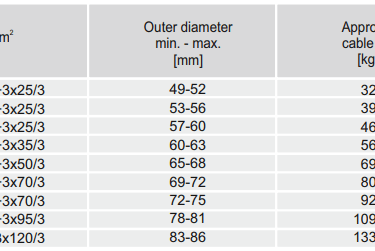

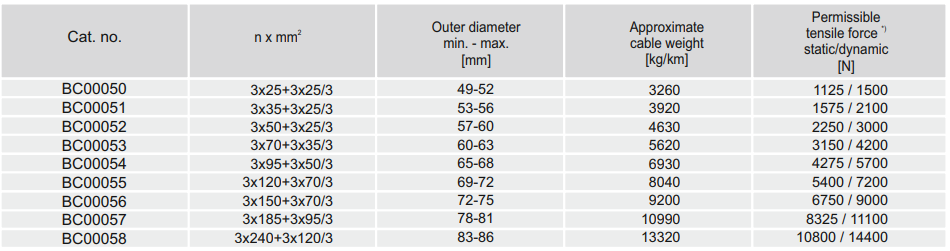

Feichun (N)TSCGEWOEU-SR 12/20kV

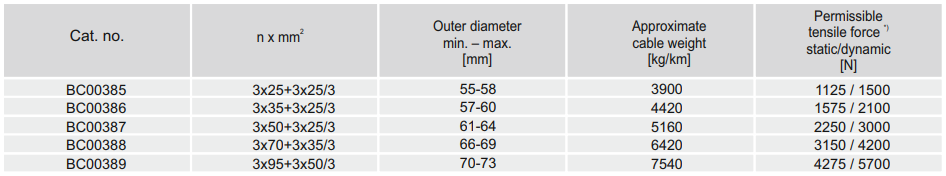

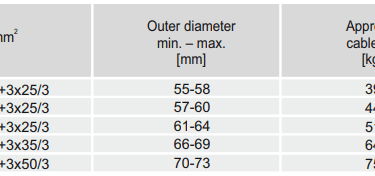

Feichun (N)TSCGEWOEU-SR 14/25kV

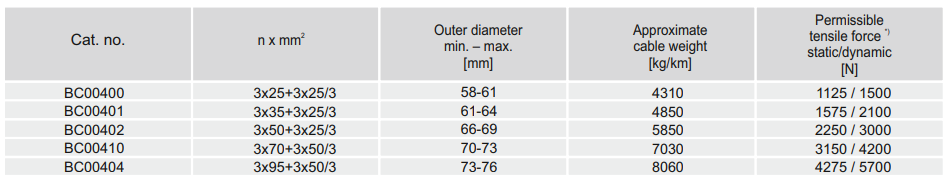

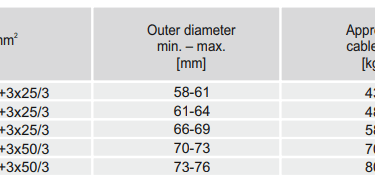

Feichun (N)TSCGEWOEU-SR 18/30kV

Application Scenarios

Open-Pit Mining Material Handling

The N-TSCGEWOEU-SR flexible reeling power cable for open-pit mining applications provides critical power supply to massive material handling equipment operating in some of the world's most challenging environments. Large-scale mining operations require continuous power transmission to draglines, bucket-wheel excavators, and conveyor systems that traverse extensive distances across mining sites.

The cable's exceptional durability ensures uninterrupted operation despite constant exposure to dust, temperature extremes, mechanical vibration, and the substantial tensile forces generated by heavy machinery movement. Its robust construction significantly reduces maintenance requirements and operational downtime, directly contributing to improved productivity and cost-effectiveness in mining operations.

Harbour and Shipyard Crane Power Supply

High mechanical stress medium-voltage cable for harbor cranes must withstand the corrosive marine environment whilst providing reliable power transmission to container handling equipment. The (N)TSCGEWOEU-SR cable's superior environmental resistance makes it ideal for ship-to-shore cranes, mobile harbour cranes, and shipyard lifting equipment.

The cable's flexibility accommodates the complex movement patterns required in maritime operations, including simultaneous lifting, slewing, and travelling motions. Its oil and moisture resistance properties ensure long-term reliability despite constant exposure to hydraulic fluids, saltwater spray, and varying weather conditions typical of Australian port environments.

Stacker/Reclaimer Operations in Stockyards

Flexible power supply cable DIN VDE 0250-813 for stacker reclaimers must deliver consistent performance across extensive stockyard facilities where bulk materials are stored and retrieved. These applications demand cables capable of withstanding continuous flexing, high tensile loads, and exposure to abrasive particulates.

The (N)TSCGEWOEU-SR cable's reinforced construction and anti-twist protection ensure reliable operation throughout the extensive travel ranges typical of modern stacker/reclaimer systems. This reliability is crucial for maintaining continuous operations in facilities handling coal, iron ore, grain, and other bulk commodities.

Other Heavy-Duty Industrial Areas

Beyond primary applications, this versatile cable serves various industrial sectors including steel manufacturing, aluminium smelting, power generation facilities, and large-scale manufacturing operations where mobile equipment requires reliable medium-voltage power supply under challenging conditions.

Performance Benefits

Exceptional Flexibility and Fatigue Resistance

The cable's design prioritises exceptional flexibility through carefully engineered conductor stranding, optimised core arrangement, and advanced sheath compounds. The heavy-duty rubber compound (quality 5GM5) based on DIN VDE 0207-21 provides superior flexural endurance, whilst the synthetic thread braid reinforcement between bonded inner and outer sheaths delivers effective anti-twist protection.

This construction approach ensures extended service life even under the most demanding mechanical stress conditions, with fatigue resistance significantly exceeding conventional medium-voltage cables.

UV, Oil, Ozone, and Moisture Resistance

The UV-resistant, oil-resistant reeling cable for shipyard applications demonstrates comprehensive environmental protection through advanced material selection and compound formulation. The outer sheath provides complete protection against ultraviolet radiation, ensuring colour stability and mechanical integrity despite prolonged outdoor exposure.

Oil resistance per EN 60811-404 standards protects against hydraulic fluid contamination, whilst ozone resistance prevents cracking and degradation in high-ozone environments. Complete moisture protection ensures reliable operation in high-humidity conditions and direct water exposure scenarios.

High Permissible Dynamic and Static Tensile Forces

The cable's exceptional tensile strength capabilities accommodate the demanding load requirements of heavy industrial equipment. Dynamic tensile forces up to 14,400 N ensure reliable operation during equipment acceleration and deceleration cycles, whilst static tensile ratings provide adequate safety margins for suspended installations.

Extended Service Life Under Extreme Mechanical Stress

Through advanced materials engineering and robust construction techniques, the (N)TSCGEWOEU-SR cable delivers extended service life that significantly reduces total cost of ownership. The combination of superior flexibility, environmental resistance, and mechanical strength ensures reliable operation throughout extended service periods, minimising replacement frequency and maintenance requirements.

Compliance and Standards

DIN VDE 0250-813 and CPR 305/2011

The cable's design and manufacturing processes strictly adhere to DIN VDE 0250-813 specifications for medium-voltage flexible cables, ensuring consistent quality and performance characteristics. Compliance with CPR 305/2011 (Construction Products Regulation) guarantees that fire performance characteristics meet European safety standards for construction applications.

EN 60811-404 and IEC 60228

Oil resistance testing per EN 60811-404 standards validates the cable's performance in contaminated environments, whilst conductor specifications according to IEC 60228 ensure optimal electrical characteristics and mechanical flexibility through standardised stranding configurations.

DIN VDE 0298-3/4 Derating and Bending Guidelines

Current-carrying capacity calculations follow DIN VDE 0298-4 table 15 specifications, providing accurate ampacity ratings for various installation conditions. Bending radius requirements per DIN VDE 0298-3 ensure mechanical integrity throughout the expected service life.

Fire Behavior Per DIN EN/IEC 60332-1-2

Fire behaviour characteristics comply with DIN EN/IEC 60332-1-2 standards, ensuring appropriate flame propagation resistance for industrial installation environments. This compliance is particularly important for applications in enclosed spaces or areas with significant fire risk.

Reeling Guidance at Different Levels

Proper installation requires careful consideration of cable guidance systems, particularly when reel axes operate in travel directions with varying elevation levels. Cable guidance systems should accommodate smooth transitions between different operational levels whilst maintaining minimum bend radius requirements.

Installation teams should ensure adequate clearance for cable movement and implement proper support systems to prevent excessive mechanical stress during operation. Regular inspection schedules help identify potential wear points before they become critical issues.

Optimal Bend Radius and Reeling Speed Settings

Maintaining bend radius specifications according to DIN VDE 0298-3 is crucial for achieving expected service life. The minimum distance requirement of 20 times outer diameter for S-type directional changes must be strictly observed during installation and operation.

Reeling speeds should be optimised based on specific operational requirements, with maximum speeds of 180 m/min achievable under appropriate conditions. Gradual acceleration and deceleration cycles help minimise mechanical stress and extend cable life.

Maintenance Best Practices

Regular visual inspections should focus on sheath condition, particularly at stress concentration points and areas of frequent flexing. Monitoring of installation parameters including tension levels, bend radius compliance, and reeling speed helps prevent premature failure.

Preventive maintenance schedules should include periodic electrical testing to verify insulation integrity and conductor continuity. Environmental factors such as contamination levels and temperature extremes should be monitored to ensure operating conditions remain within specified parameters.

Installation and Handling Tips

Frequently Asked Questions

Q: What makes the (N)TSCGEWOEU-SR cable suitable for extreme mechanical stress applications?

A: The cable features a unique construction combining Class 5 finely stranded copper conductors, advanced EPR insulation, synthetic thread braid reinforcement, and heavy-duty rubber sheaths. This design provides exceptional flexibility whilst maintaining high tensile strength ratings up to 14,400 N dynamic load capacity.

Q: How does the cable perform in Australian mining environments?

A: The cable's operating temperature range (-30°C to 80°C for reeling operations), UV resistance, and dust protection make it ideal for Australian mining conditions. Its robust construction withstands the extreme mechanical stresses typical of open-pit mining operations whilst maintaining reliable electrical performance.

Q: What voltage options are available for different applications?

A: The (N)TSCGEWOEU-SR cable is available in voltage ratings from 3.6/6 kV up to 18/30 kV, with maximum permissible operating voltages reaching 20.8/36 kV AC and 27/54 kV DC. This range accommodates virtually any medium-voltage industrial application requirement.

Q: How does the anti-twist protection system work?

A: The cable incorporates a synthetic thread braid positioned between inseparably bonded inner and outer sheaths. This reinforcement system effectively prevents cable twisting during reeling operations, maintaining electrical integrity and extending service life under continuous movement conditions.

Conclusion

The (N)TSCGEWOEU-SR medium-voltage reeling power cable represents the pinnacle of flexible power transmission technology for extreme mechanical stress applications. Its comprehensive design approach, incorporating advanced materials, robust construction techniques, and strict compliance with international standards, delivers unmatched performance reliability in the most demanding industrial environments.

From the resource-rich mining regions of Western Australia to the sophisticated port facilities of Melbourne and Brisbane, this high-flexibility cable provides the foundation for reliable industrial operations. Its exceptional tensile strength, environmental resistance, and extended service life characteristics ensure superior return on investment through reduced maintenance requirements and minimised operational downtime.

For operations requiring reliable medium-voltage power transmission under extreme mechanical stress conditions, the (N)TSCGEWOEU-SR cable offers the perfect combination of technical performance, regulatory compliance, and long-term value. Its proven track record across diverse industrial applications makes it the preferred choice for engineers and project managers seeking optimal power transmission solutions for critical infrastructure projects.
