High-Performance CORDAFLEX (S) NSHTOEU I 1 kV Dynamic Reeling Cable for Underground LHDs – Mono-Spiral & Cylindrical Reel Solutions

Introduction

In the challenging environment of underground mining operations, maintaining reliable electrical connections to mobile equipment is critical for operational efficiency and safety. Dynamic reeling cables represent a specialized solution designed to handle the unique demands of equipment that requires continuous power supply while undergoing frequent movement and positioning changes. These cables must withstand extreme mechanical stresses, harsh environmental conditions, and repetitive flexing cycles while maintaining electrical integrity.

Load-Haul-Dump machines (LHDs) are essential workhorses in underground mining operations, responsible for loading, transporting, and dumping materials in confined spaces. These versatile machines require consistent, reliable power supply to operate their hydraulic systems, motors, and control mechanisms. The importance of reliable power supply for LHDs cannot be overstated, as any power interruption can result in significant operational downtime, reduced productivity, and potential safety hazards in underground environments where equipment mobility is restricted and rescue operations are complex.

Traditional fixed installation cables are inadequate for LHD applications due to the dynamic nature of these machines. The solution lies in specialized dynamic reeling cables that can accommodate the constant winding and unwinding motions while maintaining electrical performance and mechanical integrity over extended service periods.

Key Features of CORDAFLEX (S) NSHTOEU I 1 kV Cable

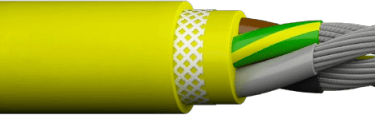

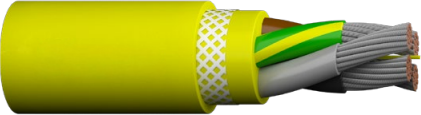

The CORDAFLEX (S) NSHTOEU I 1 kV cable represents an advanced engineering solution specifically designed for underground scoop operations. This dynamic reeling cable incorporates several critical design features that distinguish it from conventional mining cables.

The cable operates at a rated voltage of 0.6/1 (1.2) kV, making it suitable for low-voltage power transmission applications typical in underground mining equipment. The conductor system utilizes very finely stranded copper conductor with tinned coating, class FS, which provides excellent flexibility and corrosion resistance. The conductor cross-sections range from 16mm² to 95mm², accommodating various power requirements for different LHD configurations.

A distinctive feature of this cable design is the central support element made of aramid yarns with rubber covering. This construction provides exceptional tensile strength while maintaining the flexibility required for reeling operations. The cores are laid up around this central support element, with power cores available in black, grey, brown, or natural coloring with black numbers, and protective earth conductors in the standard green-yellow identification.

The insulation system employs EPR (Ethylene Propylene Rubber) with a special compound designated as 3GI3, providing excellent electrical properties and resistance to environmental factors common in underground mining. The cable features polyester braiding reinforcement that enhances mechanical strength and contributes to the overall durability of the construction.

The outer sheath consists of polychloroprene (PCP) with a special compound formulation that provides superior resistance to oils, chemicals, acids, bases, UV radiation, and ozone. This robust sheath construction ensures long-term reliability in the harsh underground mining environment where cables are exposed to various contaminants and physical hazards.

Dynamic Load Applications

Underground scoop operations present unique challenges for electrical power delivery systems. The nature of LHD operations involves continuous movement, frequent direction changes, and variable loading conditions that create demanding requirements for reeling cable systems. These machines operate in confined spaces where cable management becomes critical for both operational efficiency and safety.

The CORDAFLEX (S) NSHTOEU I 1 kV cable excels in applications involving frequently changing dynamic loads. The cable's design accommodates the repetitive winding and unwinding cycles characteristic of reeling operations while maintaining electrical integrity and mechanical strength. The maximum travel speed capability of 160 m/min ensures compatibility with high-speed LHD operations without compromising cable performance.

Performance under harsh mining environments requires cables that can withstand extreme temperature variations, moisture, chemical exposure, and physical impacts. The cable's temperature rating spans from -25°C to 60°C for flexible installations, with fixed installation capability from -40°C to 80°C. This broad temperature range ensures reliable operation across various underground mining conditions.

The cable's construction provides excellent resistance to the mechanical stresses typical in underground environments, including compression, tensile loads, and torsional forces. The torsional stress rating of +/- 25°/m allows the cable to accommodate the twisting motions common in LHD operations without degradation of electrical or mechanical properties.

Reel Compatibility

One of the most significant advantages of the CORDAFLEX (S) NSHTOEU I 1 kV cable is its versatility in reel system compatibility. The cable design makes it suitable for both mono-spiral reel systems and cylindrical reel configurations, providing mine operators with flexibility in their equipment selection and installation approaches.

Mono-spiral reel systems are characterized by their ability to store cables in a single-layer spiral configuration, which minimizes cable stress during winding operations and provides consistent performance throughout the cable length. The CORDAFLEX cable's construction, with its central aramid support element and flexible conductor arrangement, is ideally suited for mono-spiral reel mining cable applications. The cable maintains its electrical and mechanical properties even under the specific stress patterns created by mono-spiral winding systems.

Cylindrical reel configurations offer advantages in terms of compact installation and higher cable storage capacity. The cylindrical reel reeling cable for mines applications require cables that can accommodate multi-layer winding without experiencing crushing forces or electrical degradation. The CORDAFLEX cable's robust construction and protective sheathing enable it to perform reliably in cylindrical reel systems while maintaining the flexibility required for smooth operation.

Installation considerations for both reel types include proper cable management to prevent over-tensioning, adequate support systems to distribute mechanical loads, and appropriate environmental protection to ensure long-term reliability. The cable's bending radius specifications, with a minimum of 4 x D for fixed installations and 5 x D for flexible operations, provide clear guidelines for proper installation practices.

Maintenance requirements for reeling systems include regular inspection of cable condition, monitoring of electrical parameters, and verification of mechanical integrity. The CORDAFLEX cable's construction facilitates these maintenance activities through its durable outer sheath that provides visual indication of cable condition and its stable electrical properties that enable reliable testing procedures.

Technical Specifications

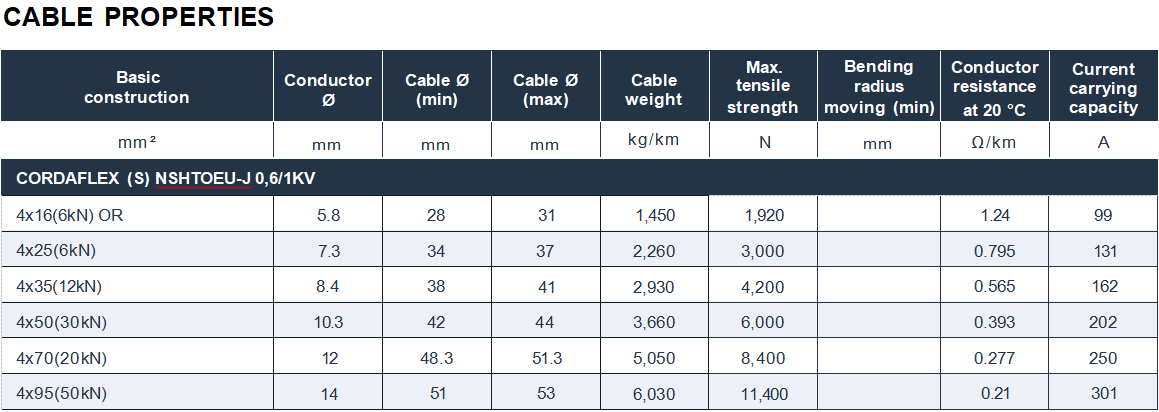

The technical specifications of the CORDAFLEX (S) NSHTOEU I 1 kV cable reflect its engineered design for demanding underground applications. The conductor system utilizes copper class 5 stranding with tinned coating for enhanced corrosion resistance. Available conductor cross-sections include 16mm², 25mm², 35mm², 50mm², 70mm², and 95mm², each optimized for specific current-carrying requirements.

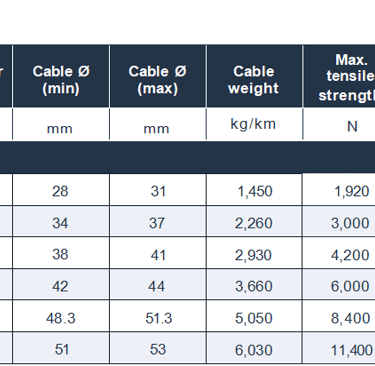

The cable diameter ranges from 28mm to 53mm depending on conductor size, providing a compact profile that facilitates handling and installation while maintaining robust construction. Cable weights vary from 1,450 kg/km for the smallest configuration to 6,030 kg/km for the largest, with the weight distribution optimized to minimize handling difficulties during installation and maintenance operations.

Maximum tensile strength capabilities range from 1,920 N to 11,400 N depending on conductor size and construction details. This tensile strength provides adequate safety margins for reeling operations while preventing cable damage under normal operating conditions. The conductor resistance values at 20°C range from 1.24 Ω/km to 0.21 Ω/km, ensuring efficient power transmission with minimal losses.

Current-carrying capacity varies from 99A to 301A depending on conductor size and installation conditions. These ratings are established under standard conditions and may require adjustment based on specific installation environments, ambient temperatures, and grouping factors. The cable's thermal rating allows for conductor temperatures up to 90°C during normal operation and 250°C during short-circuit conditions.

The armor construction features polyester braiding that provides mechanical protection and tensile strength enhancement without adding excessive weight or reducing flexibility. This armoring system is specifically designed to handle the mechanical stresses associated with reeling operations while maintaining the cable's dynamic performance characteristics.

Safety and Compliance

Safety considerations are paramount in underground mining operations, and the CORDAFLEX (S) NSHTOEU I 1 kV cable incorporates multiple safety features to ensure reliable operation in hazardous environments. The cable meets flame retardancy requirements in accordance with EN/IEC 60332-1-2, preventing flame propagation and reducing fire risk in underground installations.

Oil resistance characteristics enable the cable to maintain its properties when exposed to hydraulic fluids, lubricants, and other petroleum-based products common in mining equipment. This resistance prevents degradation of insulation and sheath materials that could compromise electrical safety or mechanical integrity.

Ozone resistance protects the cable from degradation caused by electrical equipment operation in confined spaces where ozone concentrations may be elevated. UV resistance ensures that cable properties remain stable when exposed to artificial lighting systems used in underground operations.

The cable design complies with relevant mining electrical equipment standards, including DIN VDE specifications for conductor construction, electrical parameters, fire performance, and chemical behavior. These compliance certifications provide assurance that the cable meets established safety and performance criteria for mining applications.

Water resistance capabilities allow the cable to operate in wet conditions commonly encountered in underground mining, where groundwater infiltration and high humidity levels are prevalent. The cable can withstand depths up to 10 meters, providing adequate protection against water ingress in typical underground installations.

Benefits for Mine Operators

Mine operators utilizing the CORDAFLEX (S) NSHTOEU I 1 kV flexible 1 kV mining reeling cable realize significant operational benefits that directly impact productivity and operational costs. Improved machine uptime represents one of the most significant advantages, as the cable's robust construction and reliable electrical performance reduce the frequency of power-related equipment failures.

The cable's extended service life, resulting from its engineered design and high-quality materials, provides cost efficiency through reduced replacement frequency and lower maintenance requirements. The durable construction withstands the mechanical and environmental stresses typical in underground operations, maintaining performance over extended periods without degradation.

Simplified handling procedures result from the cable's optimized weight distribution and flexible construction, reducing installation time and labor requirements. The cable's compatibility with both mono-spiral and cylindrical reel systems provides operational flexibility, allowing mine operators to select the most appropriate equipment configuration for their specific applications.

Maintenance procedures are streamlined through the cable's stable electrical properties and visual condition indicators provided by the protective sheath. Regular inspection procedures can quickly identify potential issues before they result in equipment failure or safety hazards.

The cable's consistent electrical performance throughout its service life ensures reliable operation of LHD hydraulic systems, motors, and control equipment. This reliability translates to improved productivity through reduced equipment downtime and enhanced operational efficiency.

Common Cable Issues and Solutions

Q: What are the most common causes of dynamic reeling cable failure in underground LHD applications?

A: The primary causes of failure include mechanical damage from excessive bending or tensile stress, chemical degradation from exposure to mining fluids, thermal damage from overloading or poor ventilation, and electrical failures from moisture ingress or insulation breakdown. Proper cable selection, installation, and maintenance practices can significantly reduce these failure modes.

Q: How can operators determine when a dynamic reeling cable needs replacement?

A: Regular inspection should focus on visual examination of the outer sheath for cuts, abrasions, or swelling, electrical testing for insulation resistance and conductor continuity, and mechanical testing for tensile strength and flexibility. Any significant deviation from baseline measurements or visible damage indicators warrants immediate evaluation and potential replacement.

Q: What installation practices can extend the service life of underground LHD cables?

A: Proper installation includes adherence to minimum bending radius specifications, adequate support systems to distribute mechanical loads, protection from sharp edges and chemical exposure, proper termination techniques to prevent moisture ingress, and regular maintenance schedules to identify potential issues before failure occurs.

Q: How do environmental factors in underground mines affect cable performance?

A: Temperature extremes can affect insulation properties and conductor resistance, high humidity can promote corrosion and electrical tracking, chemical exposure can degrade protective materials, and mechanical vibrations can cause fatigue failures. The CORDAFLEX cable design specifically addresses these environmental challenges through appropriate material selection and construction techniques.
